1. General Settings (for pickup group extension)
This group requires personal extension information and has the
following components:
Display Name is an optional parameter used to recognize the
caller. Usually the display name appears on the called party's
phone display when a call is made or a voice mail is sent.
Password requires a password for the new extension.
The extension password may only contain digits. If non-numeric
symbols are entered an "Incorrect Password: no symbol
characters allowed" error message will prevent making the
extension.
Confirm Password requires a password confirmation. If the
input is not corresponding to the one in the Extension
Password field, the "Incorrect Password confirm" error message
will appear.
The Edit Pickup Group link leads to the page where a list of monitored extensions can be defined.
The Pickup Group of Extension page lists all extensions in
the pickup group, i.e. it lists those that can be monitored and
the calls addressed to that may be picked up by calling the
corresponding pickup extension.
The Add functional button opens an Add Entry page with a
drop down list containing all available extensions on the
Quadro.
The Edit Access List link leads to the page where permissions for the users to use the pickup service can be defined.
The Access List of Extension page lists all users (or a group
of users if a wildcard is used) and the appropriate permissions
to pickup the calls ringing on the extensions from the Pickup
Group.
The Add functional button opens an Add Entry page where a
new user with corresponding permissions might be created.
This page consists of the following components:
Call Type lists the available call types:
•
PBX - local calls from Quadro's extensions
•
SIP – calls through a SIP server
•
PSTN – calls from global telephone network
•
Auto – used for undefined call types. The destination
(independent on whether it is a PBX number, SIP
address or PSTN number) will be parsed through the
Call Routing Table.
The Address text field is used to define the address to be
included in the Access List table. The value in this field is
strictly dependent on the Call Type defined in the same named
drop down list. If the PBX call type is selected, the Quadro
extension number should be defined in this field. For the SIP
call type, the SIP address should be defined, for the PSTN call
type, the PSTN user number should be defined here.
The Action drop down list is used to select the defined user's permissions (allow or deny) to use the pickup service for the extensions included in the
Pickup Group.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

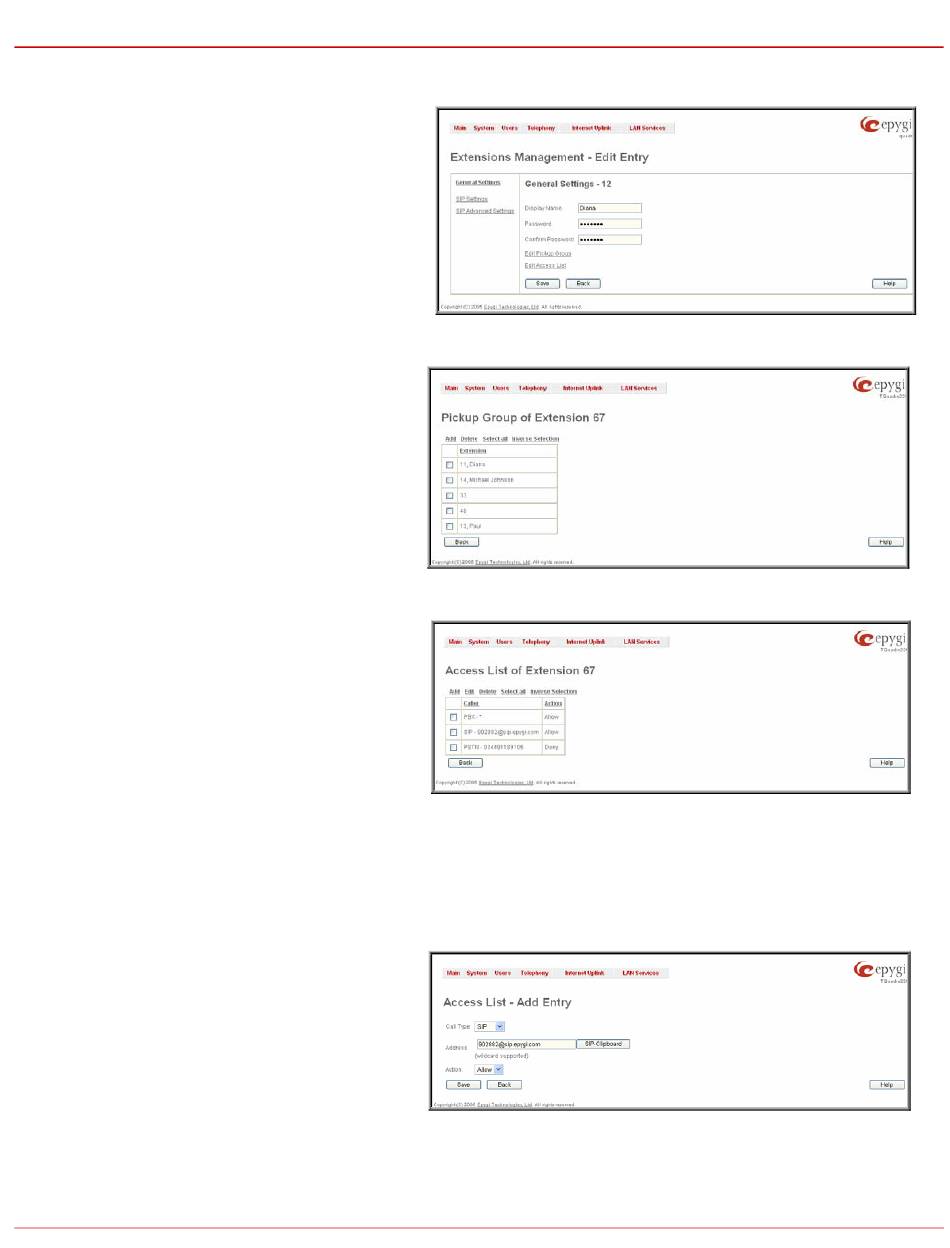

Fig. II-67: Extensions Management - Edit Entry – General Settings for pickup extension page
Fig. II-68: Pickup Group of Extension page
Fig. II-69: Access List of Extension page
Fig. II-70: Access List of Extension –Add Entry page
