Quadro Baseline
Add opens the Receptionist Phone Configuration Wizard where the new receptionist phone can be created and configured. The wizard consists
of several pages.
The Receptionist Phone Configuration Wizard - Page 1 has
the following components:
The Description text field requires the description of the
receptionist to be configured.
The Phone Model drop down list is used to select the IP phone
model to be used by the receptionist. The Snom selection in the
list enables the MAC address text fields used to insert the MAC
Address of the corresponding Snom IP phone.
Based on the selected IP phone model and the inserted MAC
Address, the SIP phone can be automatically configured by
simple reset/reboot (for more information about IP phone
configuration, refer to the corresponding IP phone's users
manual).
The Attached IP Lines text field requires the numbers of
Quadro's IP lines used by the receptionist. The IP lines should
be separated by commas.
The Receptionist Phone Configuration Wizard - Page 2 is
available only for the Snom selection in the Phone Model drop
down list on the previous page and for multiple Attached IP
Lines. This page is used to set the correspondence between
the selected IP lines and the available Programmable keys on
the IP Phone.
To do so, select the IP lines corresponding to each
programmable key from the drop down list on this page.
The Receptionist Phone Configuration Wizard - Page 3 is
available only for the Snom selection in the Phone Model drop
down list on the previous page. This page is used to set the
watched extensions to the programmable keys on the IP Phone.
To do so, select the extension from the corresponding drop
down lists in order to associate the corresponding extension
with the corresponding programmable key.
Please Note: A Programmable Key can be either assigned to
an IP line or to a watched extension.
Please Note: Once a new receptionist is created, the Call Queue feature will be automatically enabled with the corresponding Call Queue Size and
Max Call Queue Appearance settings on all extensions attached to the IP lines defined in the Attached IP Lines text field.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

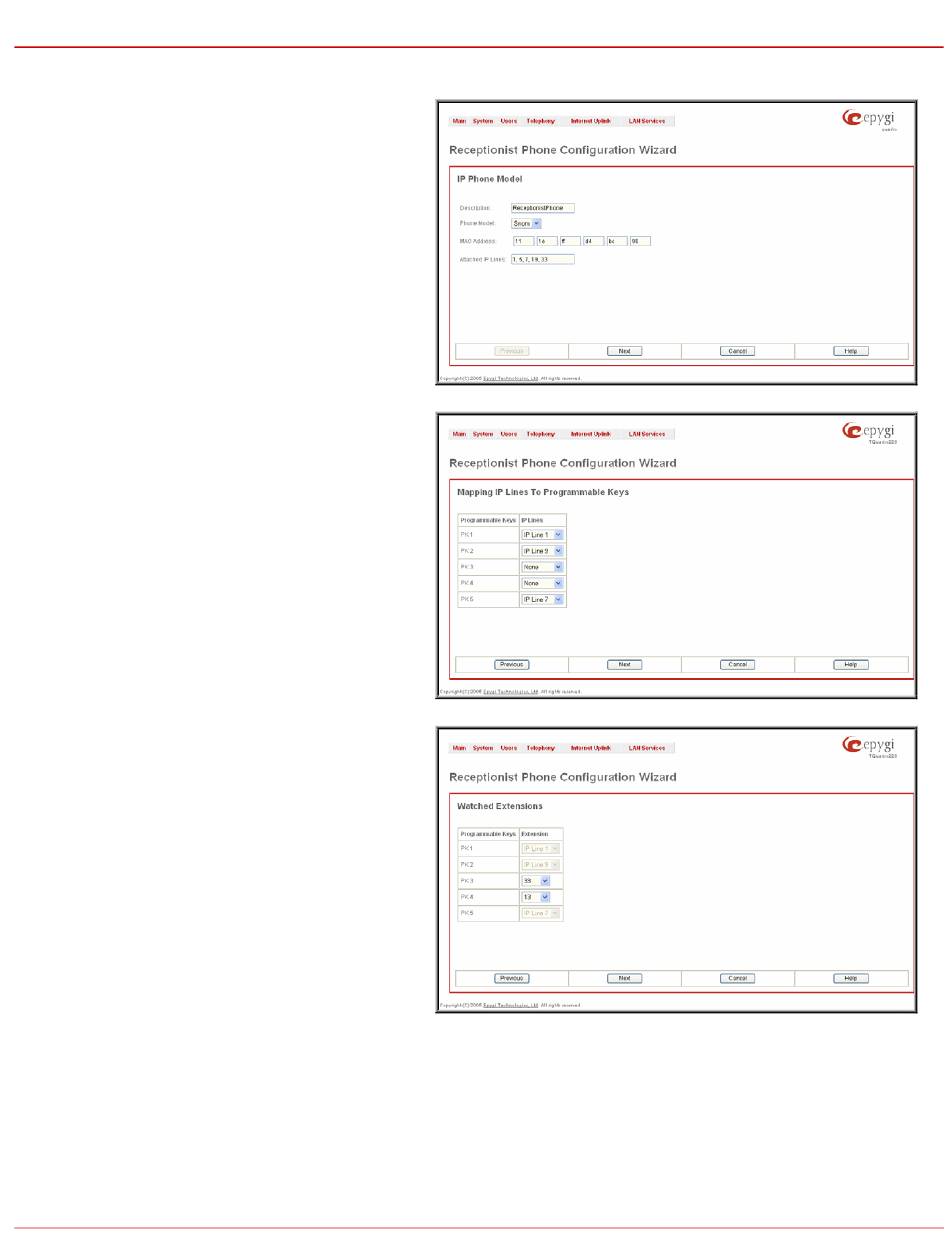

Fig. II-86: Receptionist Phone Configuration Wizard – Page 1
Fig. II-87: Receptionist Phone Configuration Wizard – Page 2
Fig. II-88: Receptionist Phone Configuration Wizard – Page 3
