The Caller ID drop down list contains various standards of Caller
ID transmissions. It is used to send the calling party's information
to the phone attached to the selected line:
No Caller ID.
FSK, send prior to the first ring.
FSK, send between the first and second ring.
FSK, send both prior to a ring and between the first and
second ring.
DTMF, send prior to the first ring.
DTMF, send between the first and the second ring.
Combined, send both DTMF prior to the first ring and FSK
between the first and the second rings.
The Quadro sends the current time/date to the called phone
together with the caller's information.
A group of Remote Party Disconnect Indication parameters are used to configure the private PBX attached to the Quadro FXS port.
The Enable Busy Tone Indication checkbox enables a busy tone transmission to the FXS port when the remote party being called is
disconnected. The Busy Tone Duration drop down list is used to select the period (in seconds) when a busy tone will be transmitted to the
FXS port.
The Enable Power Disconnect Indication checkbox enables the power cycling on the FXS line when the remote party being called is
disconnected. Power Disconnect is applied after the busy tone transmission on the FXS line. The Disconnect Duration drop down list is
used to select the period (in milliseconds) when the FXS line power will be down.
The Ringer Type drop down list allows you to select the frequency of the ringer supported by the phone attached to the line. Information can be
found on the phone enclosure or in the phone's manual. Problems with the ringer might occur if the ringer type selected here does not correspond to
the one supported by the phone.
Please Note:
The supported ringer type can be found on the bottom of the phone, in the "Ren:x.xN" value where N is the ringer type supported by
the phone. For example, if N=A, the TypeA ringer type should be selected, if N=B, the TypeB&Z ringer type should be selected.
The Enable off-hook Caller ID checkbox enables Caller ID transmission to the phone in the off-hook state attached to a certain line. Service is
applicable to the phones supporting the Call Waiting Caller ID feature.
Information on the Caller ID system:
Caller ID is a service identifying the caller (when performing a call or sending a voice mail) and notifying the called party about the identity of the
caller. The Caller ID service is available only for phones with a display to show that information. Two types of Caller ID notification are available on
Quadro: FSK and DTMF.
FSK Standard
The FSK standard supports caller ID indication either with the phone handset on-hook or if the called party is already busy with another call or
operation (handset is off-hook). For internal calls, caller ID notification in FSK can show up to two lines of identifiable parameters on the called
phone's display. The first line shows the caller's extension number. The second line shows the caller's nickname (if indicated in the configuration).
For external IP calls, caller ID notification in FSK can also show up to two lines of identifiable parameters on the called phone's display. The first line
shows the caller's user name. The second line shows the caller's nickname (if indicated in configuration). If the nickname is not available and there is
a display name, provided by the caller party, the second line will display it, otherwise the URL, in the format: username@host will be displayed. For
calls from the PSTN network, the entire caller ID message will be shown.
DTMF Standard
The DTMF standard supports caller ID indication only if the phone handset is on-hook (phone is free and ready to accept calls). This standard also
has caller ID notification conditions but they are non-configurable. Caller ID notification in DTMF can show only one line of identifiable parameters on
the called phone's display. For internal calls, it is the caller's extension number. For external IP calls, it is the caller's user name. For calls from the
PSTN network, caller ID will only display the caller's phone number.
Please Note:
DTMF supports only parameters consisting of digits. If any letter symbol has been used in the external caller user name, DTMF will not
display caller ID.
To Configure the Line Settings
1.
Select the line number that should to be configured from the Active Lines column in the Lines table on the Line Settings page.
2.
Press on the line number link in the Line Settings table. The Line Settings - Line# page will appear in the browser window.
3.
Use the Caller ID drop down list to select the caller ID detection system mode corresponding to the phone type.
4.
Enable the Dialing Prefix With Caller ID checkbox if needed.
5.
Configure the Remote Party Disconnect Indication parameters by selecting the corresponding checkboxes.
6.
Define a Ringer Type from the corresponding drop down list.
7.
Enable Off-hook Caller ID if needed.
8.
Press the Save button on the Line Settings - Line# page to save the caller ID system and other line specific configuration settings.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

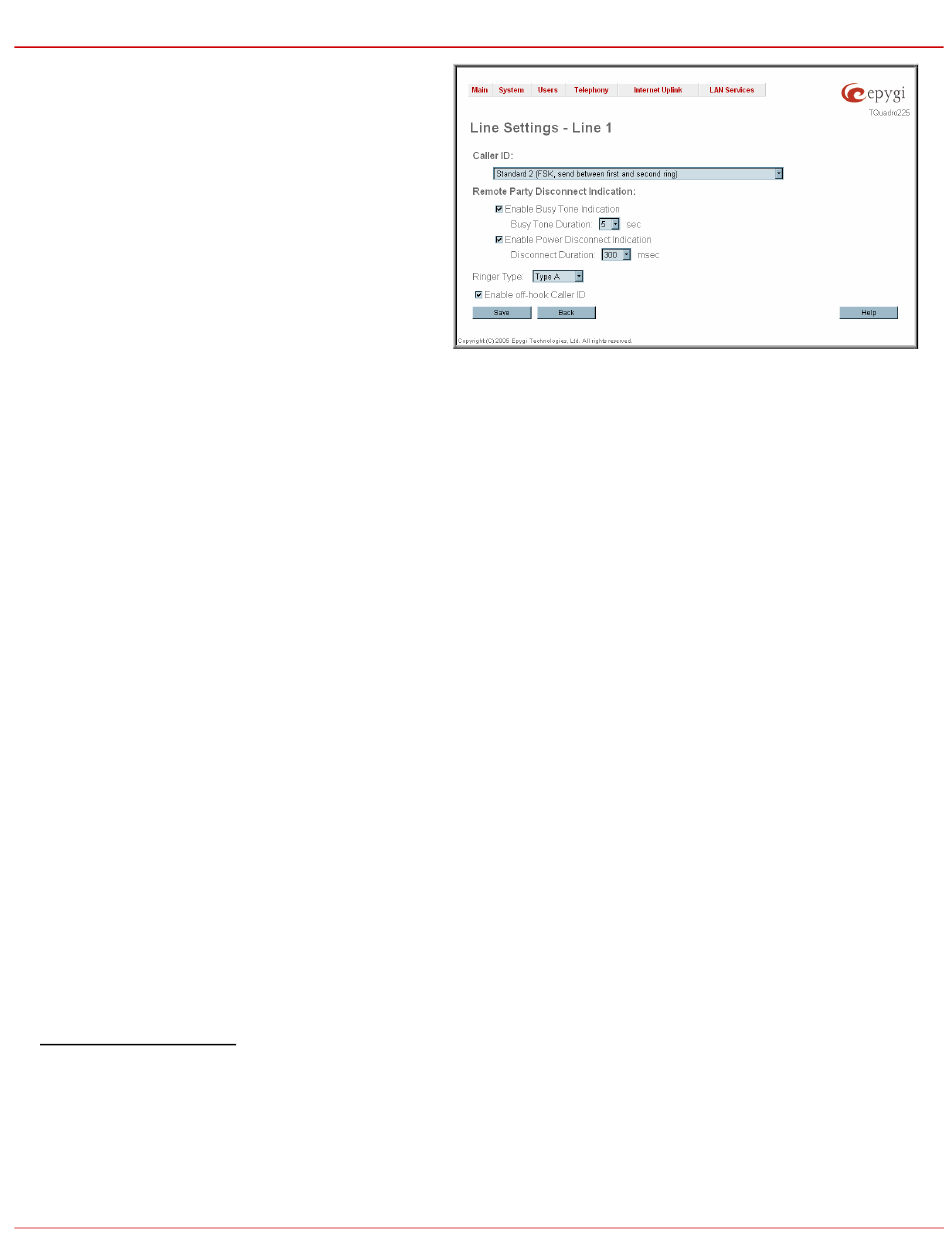

Fig. II-106: Line Codec and Caller ID Settings page
