Internet Configuration Wizard

The Internet Configuration Wizard allows the administrator to configure the WAN interface settings and to adjust Quadro's connectivity with an
external network. The Internet Configuration Wizard MUST be run for Quadro to be connected to the Internet.
All the settings of the Internet Configuration Wizard are
described in the chapters below except those for the IP settings,
which will be described in this chapter.
Please Note: It is strongly recommended not to change the
factory default settings if their meanings are not fully clear
to an administrator.
The Wizard allows navigating through the following basic configuration parameters and settings:
•
Uplink configuration (see below)
For WAN Interface protocol PPPoE:
•
P PP/ PPTP Settings
2 4 3 H
•
WAN Interface Configuration (see below)
•
D NS Settings
2 4 4 H
The Switch to Auto Provisioning link moves you to the
The Uplink Configuration page allows you to select the Quadro's
WAN interface connection type and its bandwidth settings. These
settings will make Quadro available to the external network.
Depending on the Uplink Interface Protocol selection, the page
following the Uplink Configuration page is different. Thus if
PPPoE is selected, the next page will be PPP Configuration, while
selecting Ethernet will bring up the WAN IP Configuration page.
The Uplink Configuration page offers the following components:
The WAN Interface Protocol radio buttons are used to choose the
protocol depending on the requirements of the ISP (Internet Service
Provider):
PPPoE - turns on the PPP over an Ethernet connection.
PPTP – turns on the Point to Point Tunneling Protocol (PPTP)
interface used for the connection between Quadro and ADSL
modem. A fixed IP address configuration is needed in this
case.
Ethernet - turns on the Ethernet connection.
The WAN Interface Bandwidth settings allow the specification of the upstream and downstream speeds in kbit/s, helping to assure the quality of IP
calls. An IP call looses the voice quality if there is no available bandwidth. When approaching the limits of bandwidth capacity, another IP call will be
declined.
The bandwidth provided by the ISP has to be specified in the text fields Upstream Speed and Downstream Speed. The default entry in both fields
is 10000, the maximum bandwidth of a 10 MB Ethernet. In most cases, providers offer a smaller bandwidth than 10000 kbit/s.
The bandwidth required by an IP call depends on the codecs used and these specifications are listed in the tables below:
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
For WAN Interface protocol PPTP:
•
WAN IP Configuration (see below)
•
P PP/ PPTP Settings
2 4 5 H
•
WAN Interface Configuration (see below)
•
D NS Settings
2 4 6 H
A utomatic Provisioning
2 4 8 H

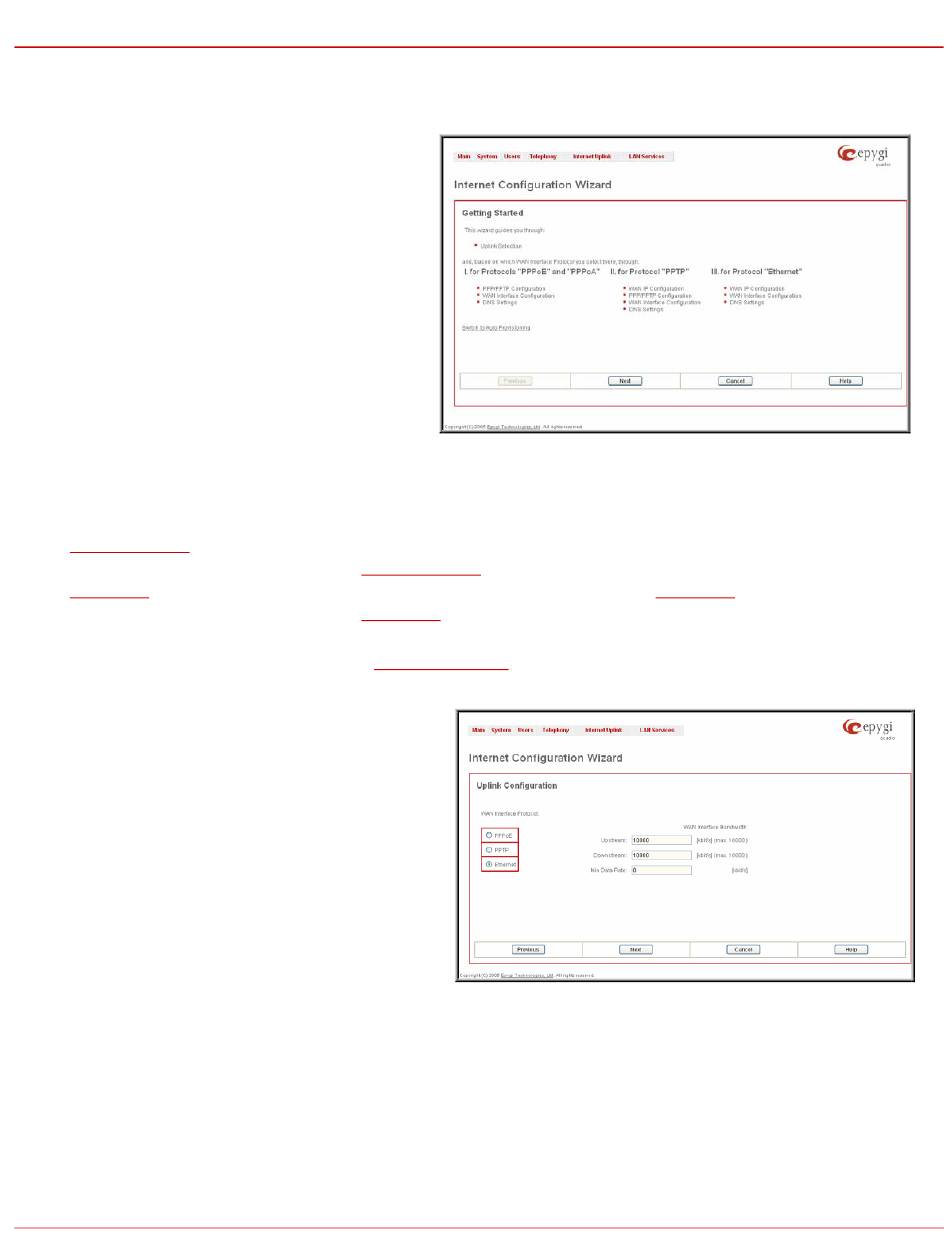

Fig. II-7: Internet Configuration Wizard - Start page
For WAN Interface protocol Ethernet:
•
WAN IP Configuration
•
WAN Interface Configuration (see below)
•
D NS Settings
2 4 7 H
page where Quadro can be configured automatically.
Fig. II-8: Internet Configuration Wizard - Uplink Configuration page
