Enable SMS Service enables the SMS service on the Quadro.
User Name and Password text fields require the authentication
settings of the SMS server.
SMS Sender Address requires the source address for the
Quadro notification SMS. The address defined in this field will
be seen in the "From" field of the SMS delivered to the mobile
phone.
SMS Recipient Address requires a destination mobile number
for a test SMS.
SMS Gateway manipulation radio buttons allow to selected
between pre-defined Clickatell SMS gateway and the custom
defined SMS gateways.
•
Clickatell – this selection allows to use a pre-defined SMS gateway. Selection enables the API ID text field which indicates a Clicatell specific
parameter obtained from the server and should match on both sides.
•
Custom – this selection allows to use a custom SMS gateway. Selection requires following parameters to be inserted:
Resource text field requires the HTTP resource name on the SMS gateway, for example: /http/sms.cgi.
Parameters text field requires the parameters to be submitted to the resource address. The value of this field represents a string with
tokens (separated by percent (%) symbols) inside. Each token indicates a value of the certain field on this page. The value is dependent on
the SMS gateway requirements. For example:
user=%username%&password=%password%&to=%to%&from=%from%&text=%text%
The tokens are the strings that have the following dependencies from the field in this page:
%username% – indicates the username defined in the field Username
%password% – indicates the password defined in the field Password
%to% - indicates the password defined in the field SMS Recipient Address
%from% - indicates the password defined in the field SMS Sender Address
%text% - indicates the SMS text generated by Quadro (voice mail notification, event notification, etc.)
Server text field requires the IP address or the host name of the SMS gateway.
Port text field requires the port number of the SMS gateway.
Use Secure HTTP checkbox enables access to SMS server via HTTPS. Checkbox selection enables a Secure Port text field that requires
the port number for HTTPS traffic.
Request Method manipulation radio buttons allow to select the HTTP request method used by Quadro the access the SMS gateway:
POST or GET.
Send Test SMS is used to send a test SMS to the defined SMS Recipient Address. This button will be enabled if correct values have been
submitted and saved on this page.

Firmware Update

This window allows updating the software of Quadro by installing new firmware (image). Users registered at Epygi will receive a notice when new
firmware is available and will be able to download it from the Epygi Technical Support WEB page.
Updating new firmware requires a working power supply. Quadro is provided with a battery (accumulator). If the battery is low or simply absent the
"There is no battery or voltage is low" warning is displayed.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

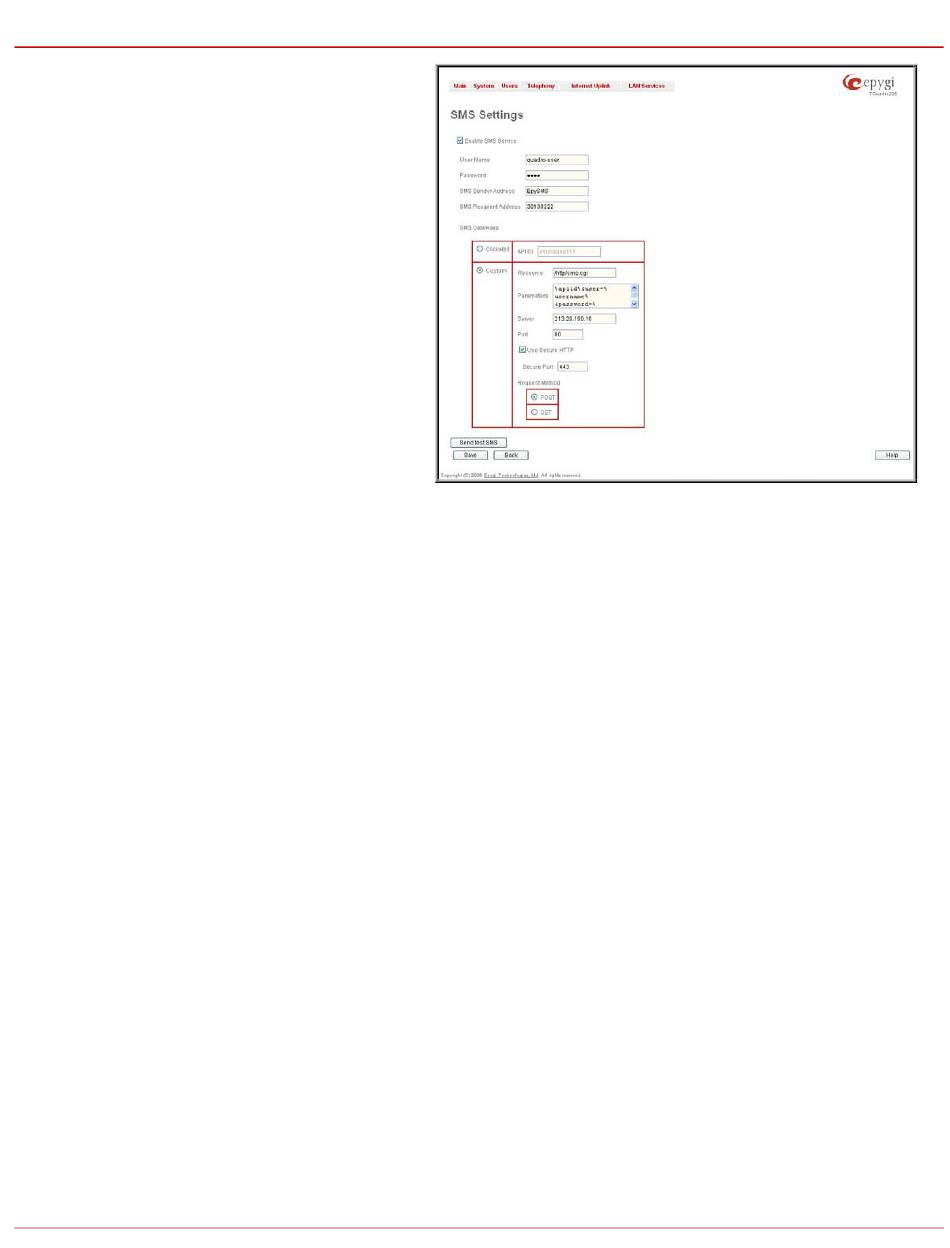

Fig. II-38: SMS Settings page
