The Call Routing Wizard - Page 5 appears if the Set Date / Time
Period(s) checkbox previously had been enabled on Page 1 of the
Local Call Routing Wizard. It will require information about the
pattern validity period(s).
This page provides selection between Typical and Custom
date/time rule definitions.
The Typical selection contains the following group of radio buttons
that are used to select the frequency of the corresponding routing
pattern that is to take place:
•
Daily
•
Weekly – the preferred weekday(s) should be selected for
this option.
•
Monthly – the calendar day should be selected for this
option.
•
Annually – the calendar day and month should be selected
for this option.
In the Available Time Period drop down lists, the time range of
the pattern validation should be defined. Any time selected in this
field will be considered corresponding to the Quadro's
Settings.
The Custom selection provides the option to manually define the
validity period(s). Use the following format to insert pattern
date/time rule(s):
[Month,Month-Month,...][Day-Day,Day,...][hh:mm-hh:mm,...]; ...
Please Note: Established patterns based on the Emergency Codes and PSTN Access Codes Settings in the
marked in bold and will be placed in the first position in the Call Routing Table. Additionally, they cannot be modified and deleted from the Call
Routing Table.
The Duplicate functional button is used to create a routing pattern with the settings of an exiting one. This is to avoid configuring a new routing entry
completely by duplicating an existing entry with different settings. To use the Duplicate button only one record may be selected, otherwise the error
message "One row should be selected" will appear. The Duplicate button opens the Call Routing Wizard where all fields except the Pattern field
are already filled in. A Pattern for the new route will be required anyway.
The Move Up/Move Down buttons are used to move call routing patterns one level up or down within the Call Routing table. The sequence of the
routing patterns is important when making routing calls because the Call Routing table is parsed from the top down and routing will take place
according to the first pattern that matches the dialed number. The Move To button is used to move the selected entry to a different position in the
Call Routing Table. This will increase or decrease the selected pattern's priority. Pressing the button will open the page where a row number should
be specified together with the position the selected entry is to be placed (before or after the defined row).
The Local AAA Table page allows you to manage local
authentication and the authorization database. Callers dialing the
routes which have an AAA (Authentication, Authorization, and
Accounting) option enabled, will pass the authorization on the
Local AAA Table by
username/password, depending on the corresponding entry
configuration on this page.
The caller passes authorization automatically if the detected phone
number of the caller dialing a route has the AAA option enabled
and is registered in the Local AAA Table. If the caller ID service is
disabled or the caller's phone number is not registered, the caller is
asked to enter a registration user name and password.
The Add functional button opens the Call Routing – Local AAA
Table - Add Entry page where a new local AAA record can be
created.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface
T ime/Date
3 1 0 H
using a phone number or

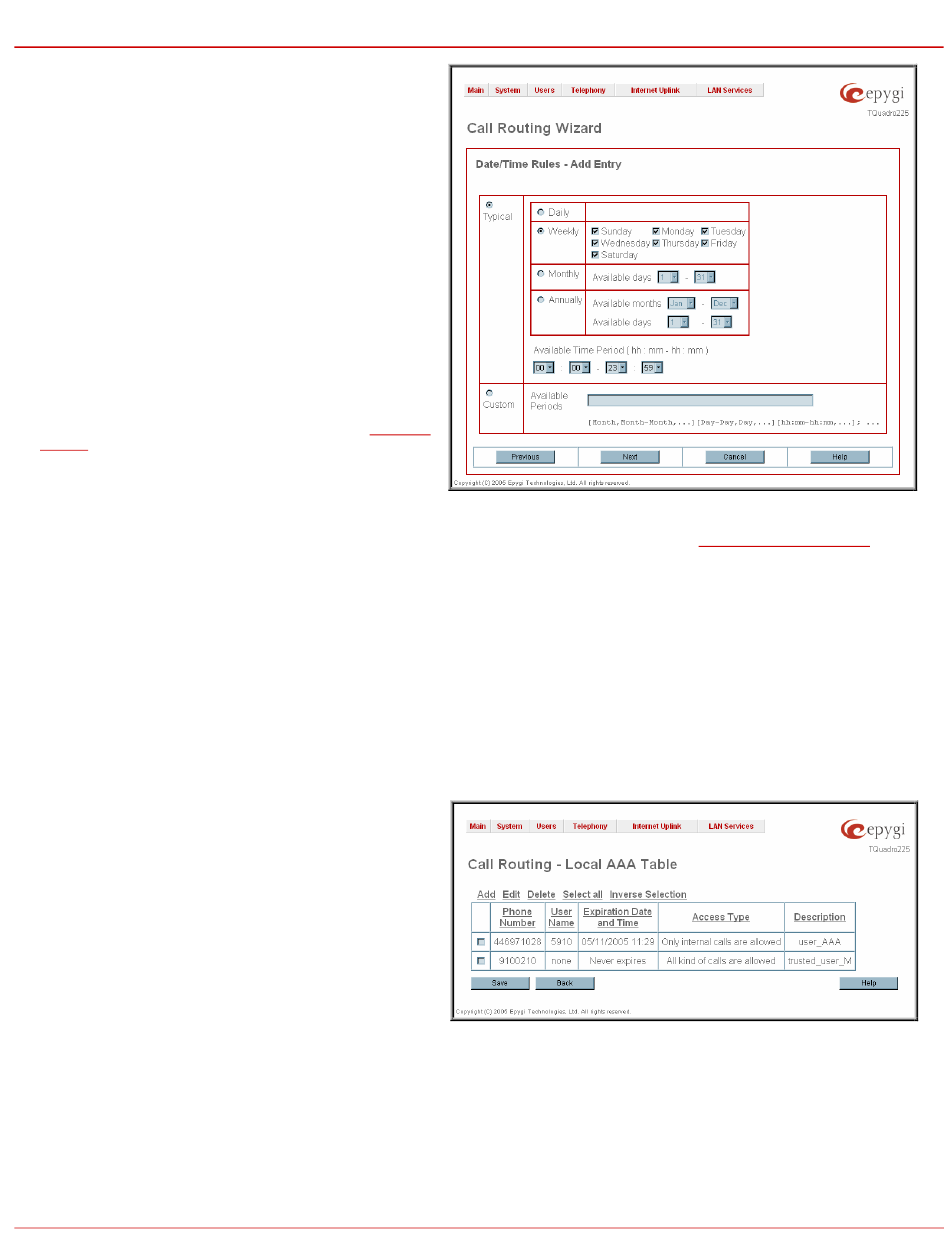

Fig. II-126: Call Routing Wizard - page 5
