Quadro Baseline
The Configuration page is used to configure the L2TP server
settings and provides the following input options:
The L2TP Subnet text fields are used to enter the IP address
range for the L2TP server and clients within the L2TP tunnel.
The value specified for the subnet mask is fixed to 24 to restrict
the possible number of clients for the L2TP connection.
Please Note: The first address specified in the L2TP Subnet will
be assigned to the L2TP server; others will be assigned to the
clients. The L2TP server subnet should be different from the
PPTP server subnet, otherwise a corresponding error message
will appear.
To Specify an IPSec Connection
1. Press the Add button on the IPSec Connection Settings page. The IPSec Connection Wizard will appear in the browser window.
2. Select a VPN Peer Type and assign a name to the IPSec Connection. Press Next to go to the next page of the IPSec Connection wizard.
3. Enter the remote side IP parameters, check subnets/gateways for the connection, select the NAT traversal option (if needed), and the desired
keying type. Press Next to go to the next page of the IPSec Connection wizard.
4. If the Automatic Keying type has been selected, enter the automatic keying parameters and select the PFS and IPSec compression options (if
needed). If the Manual Keying type has been selected enter the encryption and authentication keys and SPI(s).
5. To specify an IPSec connection with these parameters, press Finish. Press Cancel to abort the operation.
To Manage an RSA key for the IPSec Connection
1. Press the RSA Key Management button on the IPSec Connection Settings page. The IPSec Connection RSA Key will appear in the
browser window.
2. Select the RSA key length and press Generate to generate a new RSA public key. This may take several seconds.
3. Enter a destination e-mail address in the Email this key to peer text field, then press Send to send the new RSA public key.
To Specify a PPTP Client Connection
1. Press the Add button on the PPTP Client Configuration page.
2. Enter the server host name in the Server Host Name text field.
3. Specify the PPTP client password in the Client Password text field.
4. Using the radio buttons on the page, select the server address representation (IP address or hostname) and provide the corresponding
information in the Server Host IP fields.
5. Press Save to add a PPTP connection with these settings.
To Add a PPTP Server Connection
1. Press the Add button on the PPTP Server Configuration page.
2. Enter the client host name and the password in the Client Host Name and Client Password text fields.
3. Press Save to add a PPTP connection with these settings.
To Add an Active L2TP Connection
1. Press the Add button on the L2TP Configuration page.
2. Select the Active Connection link.
3. Enter the server host name in the Server Host Name text field.
4. Specify the L2TP client password in the Client Password text field.
5. Specify the server's IP address in the Server IP text field.
6. Press Save to add an active L2TP connection with these settings.
To Add a Passive L2TP Connection
1. Press the Add button on the L2TP Configuration page.
2. Select the Passive Connection link.
3. Enter the client host name and the password in the Client Host Name and Client Password text fields.
4. Press Save to add a passive L2TP connection with these settings.
To Delete/Stop/Start/Enable/Disable a VPN Connection
1. Select one or more checkboxes of the corresponding connections that should to be deleted/stopped/started from the Connection tables. Press
Select all to delete/stop/start all connections.
2. Click on the Delete/Stop/ Start button from the table's menu to perform the corresponding operation for the selected VPN connection(s).
3. If deleting, confirm it with pressing on Yes. The VPN connection will be deleted. To abort the deletion and keep the VPN connection in the list,
click No.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

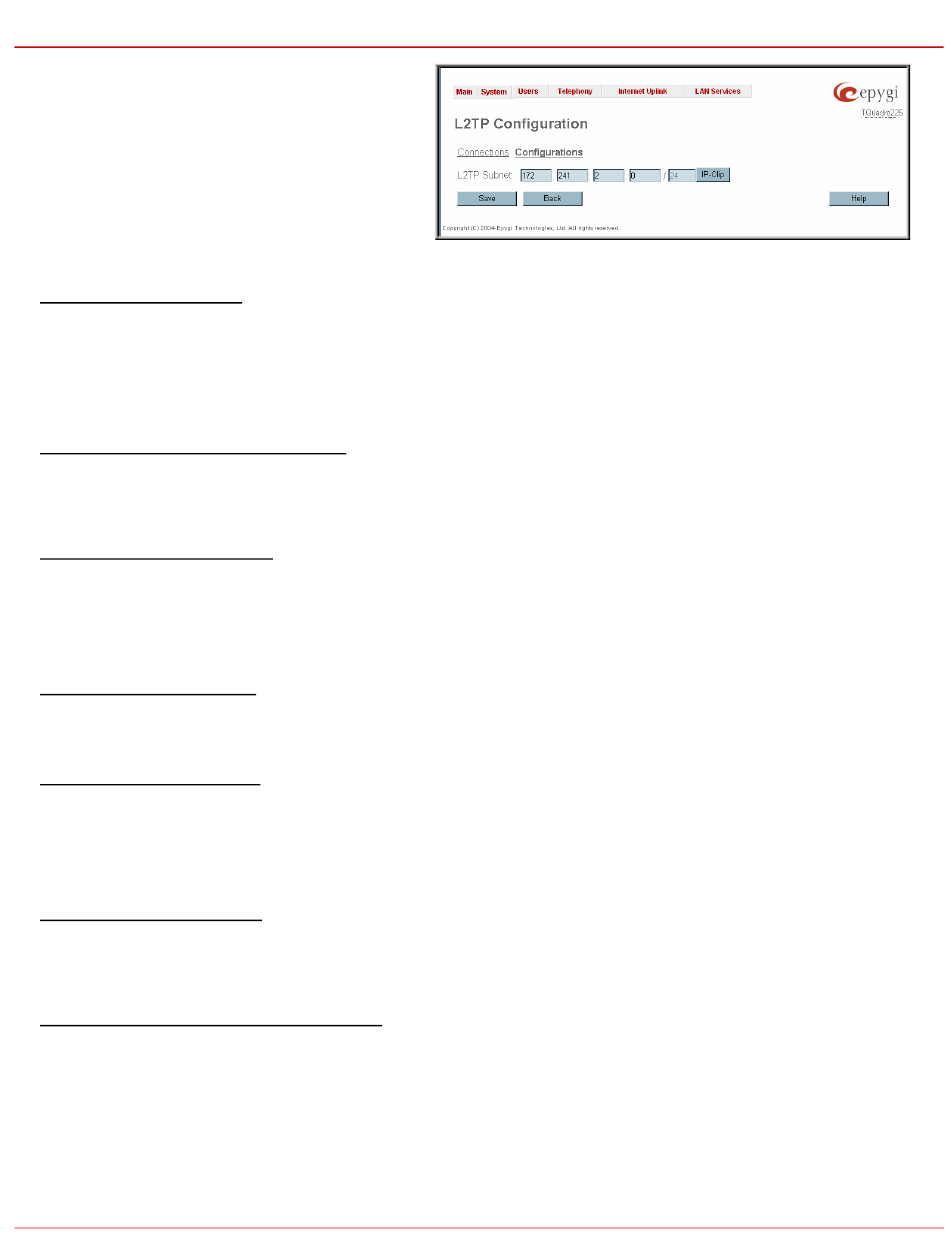

Fig. II-154: L2TPServer Configuration page
