Epygi Quadro Series Manual

Auto-configuration of lan ip phones
Hide thumbs Also See for Quadro Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Epygi Technologies

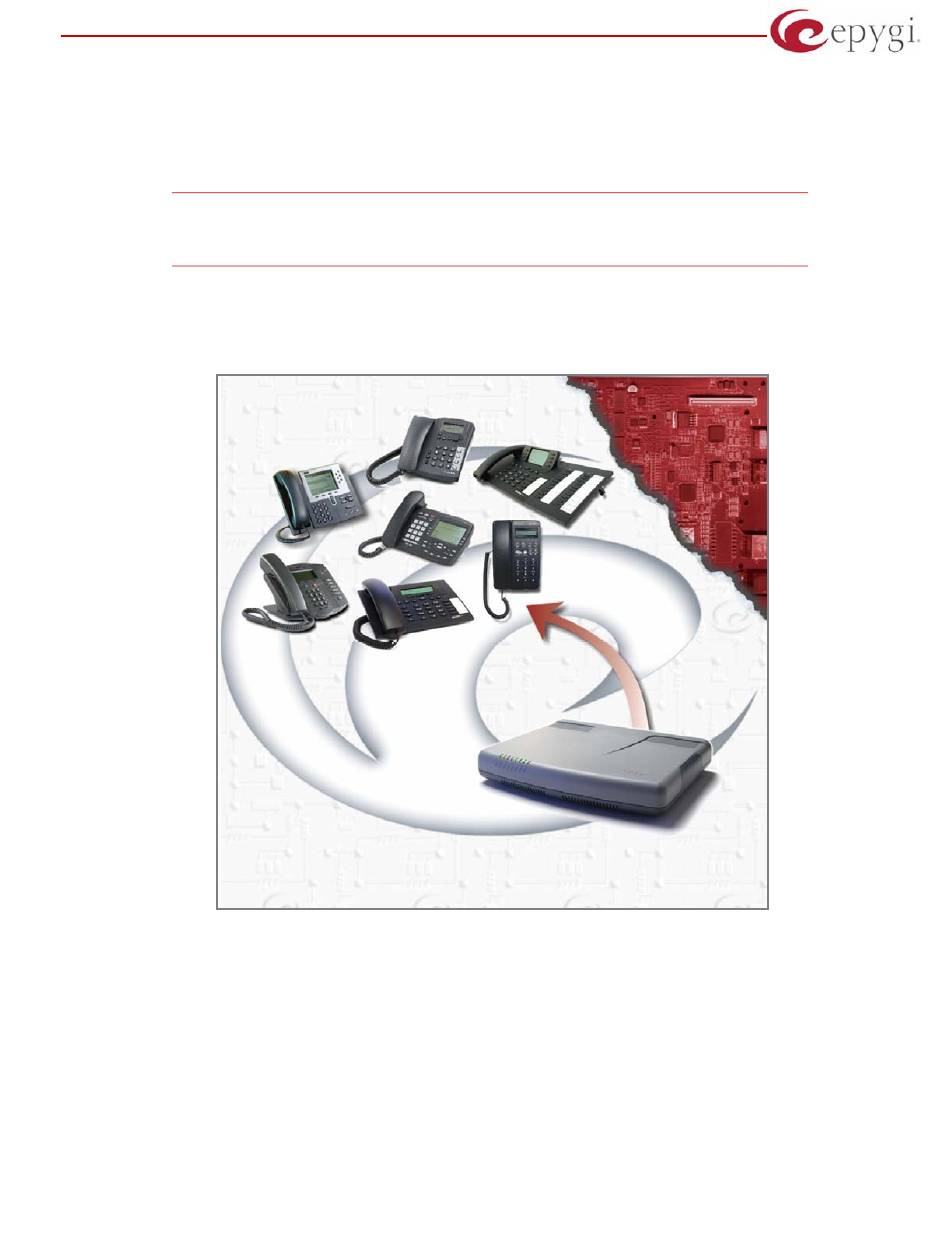

Auto-Configuration of Quadro LAN IP
Abstract:
on the Quadro and a SIP phone connected to the Quadro's LAN to
automatically configure the phone to work with the Quadro. The
Quadro supports the automatic configuration of certain SIP phones
only, which will be referred as supported SIP phones. The complete
list of the supported SIP phones is presented in this document.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of
the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
Phones
Revision
Initial draft
Revised
Ready to layout
Added chapter 6
Quadro variants:
valid for
SW-version:
tested with
SW version:
Filename:
Auto Configuration of Quadro LAN IP Phones.doc
Version:
Template:
NEWsupportTemplate.dot
Last saved:
3/6/2006 7:16:00 PM by Liana Badalyan
This document describes the steps required to complete
Revised By
Date
Liana Badalyan
Nov 28, 2005
Samvel Shabazyan
Aram Kalantaryan
Dec 1, 2005
Ashot Sargsyan
Liana Badalyan
Dec 28, 2005
Ashot Sargsyan
March 6, 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epygi Quadro Series

Summary of Contents for Epygi Quadro Series

  • Page 1 SIP phones is presented in this document. Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.

  • Page 2: Table Of Contents

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones Table of Contents: Introduction ..................3 References..................3 Requirements and Preparations.............. 3 Supported SIP Phones ................4 IP Line Configuration on the Quadro ............5 5.1 Select an Extension with an IP Line Attached .......... 5 5.2 Configure the Attached IP line ..............

  • Page 3: Introduction

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 1 Introduction Quadro2x/4x/16x provides the possibility of using IP phones along with standard analogue phones. IP phones are connected to the Quadro LAN interface via Ethernet and serve as additional extensions similar to onboard FXS extensions (see ).

  • Page 4: Supported Sip Phones

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 4 Supported SIP Phones Below is the list of SIP phones that can be automatically configured to work with Quadro2x/4x/16x: Vendor Model Software Elmeg IP290 Application: snom190-SIP 3.60s Snom Application version 4.2 Snom Application version 4.1...

  • Page 5: Ip Line Configuration On The Quadro

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 5 IP Line Configuration on the Quadro This section provides step-by-step instructions on configuring IP lines connected to the Quadro LAN. The following steps are detailed below: Select an extension with an IP line attached (or add an extension and attach an IP line to it).

  • Page 6: Configure The Attached Ip Line

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones Figure 3 Extensions Management– Edit Entry – General Settings page 5.2 Configure the Attached IP line To configure the attached IP line, follow these steps: From the Telephony menu on the main page of the Quadro’s web management, select Line settings.
  • Page 7 Epygi Technologies Auto-Configuration of Quadro LAN IP Phones In the Line Appearances text box, enter the number for simultaneous calls – the total number of active and held calls together. If this field is set to 1, only one active call is possible to have on the phone and making or accepting a second call while the other is on hold will not be allowed.

  • Page 8: Ip Phone Configuration

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 6 IP Phone Configuration The next step in auto-configuration is to notify the IP phone to download its configuration file(s) from the Quadro’s TFTP. This means the phone should have the Quadro LAN address as its boot server (TFTP server) address.
  • Page 9 Epygi Technologies Auto-Configuration of Quadro LAN IP Phones Below are the steps for the correct configuration of the DHCP server. Note that the following steps also apply to LANs that consist of several logical subnets with the DHCP server and the IP phone on one subnet, and the Quadro on another.

  • Page 10: Reset And Restart The Phone To Complete The Automatic Configuration

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 6.1 Reset and Restart the Phone to Complete the Automatic Configuration To prepare the phone to download the configuration file(s) generated by Quadro (see Configure the Attached IP line) Restore the default configuration of the phone by performing a factory reset.

  • Page 11: Polycom Soundpoint Ip 300Sip

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 6.1.4 Polycom SoundPoint IP 300SIP To complete the automatic configuration on Polycom SoundPoint, reset the phone to factory default settings and change the server type from FTP, the default server type, to Trivial FTP.

  • Page 12: Ipdialog Sip Tone Ii (St201)

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 6.1.7 IPDialog SIP Tone II (ST201) To complete the automatic configuration on IP Dialog SIP Tone II, reset the phone to factory default settings and enable the auto-configuration via built-in web server (by default the phone is not in auto- provisioning mode).
  • Page 13 Epygi Technologies Auto-Configuration of Quadro LAN IP Phones Figure 7 IPDialog – Advanced Page Figure 8 IPDialog - Servers page PAGE 13 7-Mar-06...

  • Page 14: Aastra 480I

    Epygi Technologies Auto-Configuration of Quadro LAN IP Phones 6.1.8 Aastra 480i To complete the automatic configuration on Aastra480i, restart the phone: Press the Options key on the keypad of the phone to enter the Options List. Use the up and down navigation keys to scroll to 11. Phone Status and press the Show soft key, or press to jump directly to this option.

  • Page 15: Appendix Linux-Based Dhcp Configuration File

    MAC addresses of IP phones. subnet 172.30.0.0 netmask 255.255.0.0 range 172.30.255.1 172.30.255.254; option routers 172.30.0.2; option subnet-mask 255.255.0.0; option domain-name-servers 172.30.0.1; option ntp-servers 172.30.0.1; option domain-name "epygi-config.com" ; option tftp-server-name "172.30.0.1"; host Polycom_0004f200e90b hardware ethernet 00:04:f2:00:e9:0b; host Cisco7960_00059BB46B5A hardware ethernet 00:05:9B:B4:6B:5A; host Snom_00041321014A hardware ethernet 00:04:13:21:01:4A;...
