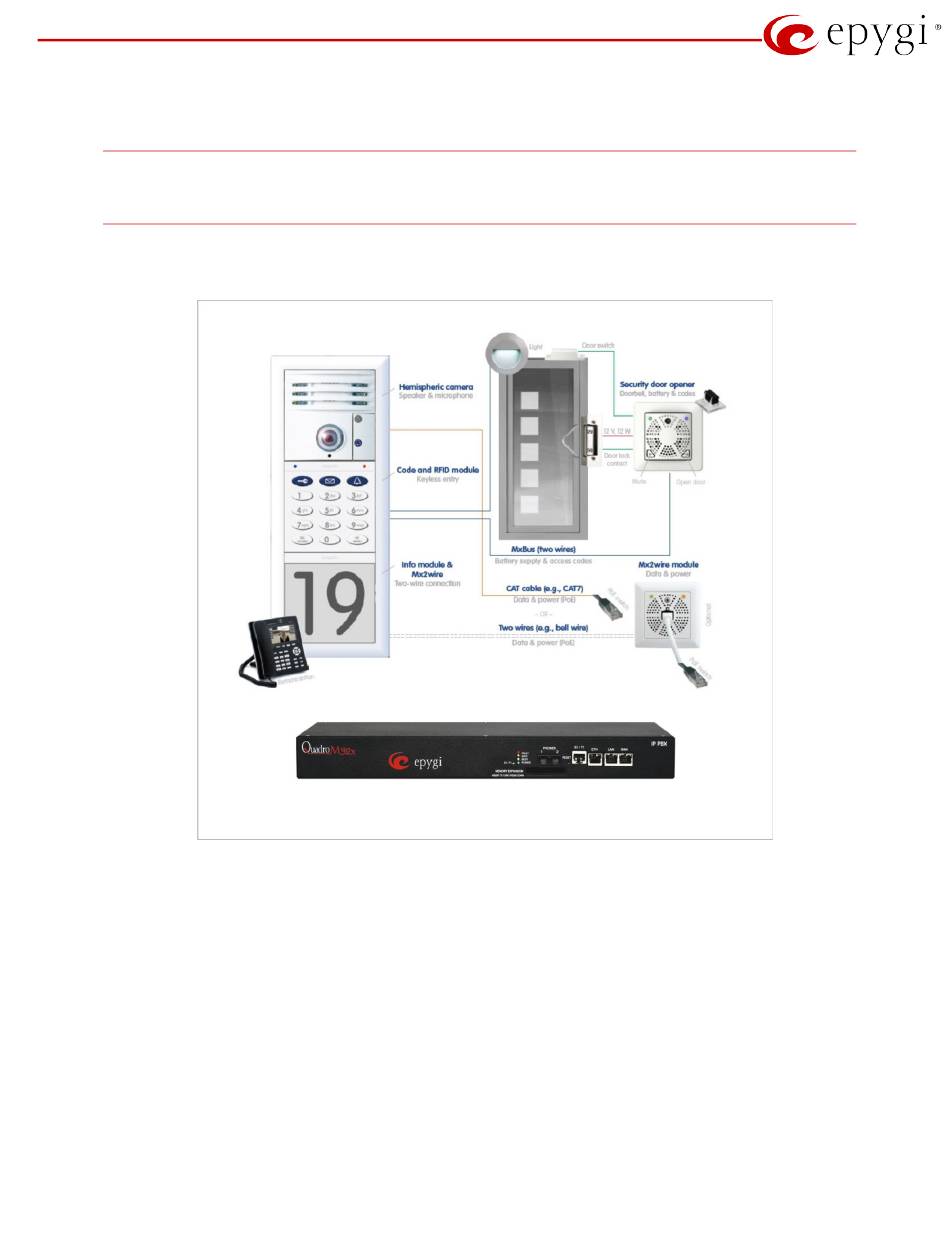

How to Configure Mobotix T24/T25 IP Video
Door Station Device on the Quadro IP PBX
Abstract:
PBX with the Mobotix T24/T25 IP Video Door Station device for
a standard door open scenario.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of
the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
Revision: 1.0
This document describes how to configure Quadro IP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epygi Quadro Series

Summary of Contents for Epygi Quadro Series

  • Page 1 Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
  • Page 2 Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Document Revision History Revision Date Description Valid for SW Valid for models 18-Feb-14 Initial release 5.3.x Quadro IP PBXs PAGE 2 18-Feb-14...

  • Page 3: Table Of Contents

    Device Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Table of Contents: Introduction ..............4 Requirements and Preparations ........4 Configuration ..............4 Configuring the Quadro IP PBX ..........5 3.1.1 Configuring Mobotix T24/T25 IP Video Door Station Device as an IP Line on the Quadro IP PBX ........

  • Page 4: Introduction

    The Quadro IP PBX is located in the home/office and connected to the network with the DHCP server enabled for the LAN interface, Two or more Epygi supported IP video phones are located in the home/office, connected to the Quadro and configured as IP lines on the Quadro IP PBX LAN interface, SW version 5.3.x or higher running on the Quadro IP PBX,...

  • Page 5: Configuring The Quadro Ip Pbx

    Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device User enters the preconfigured PIN code and speaks to visitor who is at the entrance. The live image of the door camera is displayed in the color display for the IP video phone.
  • Page 6 Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Figure 1 Configure the selected IP line as follows: Select the SIP Phone radio button (see Figure 2). Select Other from the Phone Model drop down list. Specify Username and Password fields.

  • Page 7: Configuring Many Extension Ringing For The Ip Video Phones On The Quadro Ip Pbx

    Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Figure 2 3.1.2 Configuring Many Extension Ringing for the IP Video Phones on the Quadro IP PBX To configure the Many Extension Ringing on the Quadro, follow the steps below: Log into the Quadro as an administrator and access the Caller ID Based Services for an extension (extension 105 in this example): Users->Extensions Management->Click...
  • Page 8 Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Figure 3 From the list of extensions, enable the extensions for all configured IP video phones that will participate in the Many Extension Ringing for the selected extension (extension 105 in this example).

  • Page 9: Mobotix T24/T25 Ip Video Door Station Device Configuration As Ip Line Of Quadro Ip Pbx

    Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device 3.2 Mobotix T24/T25 IP Video Door Station Device Configuration as IP Line of Quadro IP PBX To configure Mobotix IP Video Door Station device to function with the Quadro, follow the steps below: Connect the device to the LAN interface of Quadro IP PBX.
  • Page 10 Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Set the Registrar field to the IP address of Quadro’s interface. Press the Apply button. Next step will be to click on the Camera->Door Station Options menu and select the Doorbell tab (see Figure 5).

  • Page 11: Ip Video Phone Configuration Notice

    Epygi Technologies Configuring Quadro with Mobotix T24/T25 IP Video Door Station Device Figure 6 4 IP Video Phone Configuration Notice To make a call through Mobotix device, the extension used for Mobotix configuration should support H264 video codec (see Figure 7).

  • Page 12: How To Use This Scenario

    6 References The following documents can be helpful for further configuration of the Quadro IP PBX. Quadro Manual II – Administrator’s Guide - can be downloaded from Epygi’s WEB portal at www.epygi.com Additional documentation about the Mobotix IP Video Door Station device may be found at http://www.mobotix.com...
  • Page 13 THIS DOCUMENT IS PROVIDED TO YOU FOR INFORMATIONAL PURPOSES ONLY. The information furnished in this document, believed by Epygi Technologies to be accurate as of the date of publication, is subject to change without notice. Epygi Technologies assumes no responsibility for any errors or omissions in this document and shall have no obligation to you as a result of having made this document available to you or based upon the information it contains.
