For Paging Group extensions, Extensions Management - Edit Entry page consists of General Settings, SIP Settings and Advanced SIP
Settings pages. The SIP Settings and Advanced SIP Settings pages are the same as for the regular extensions (see
while General Settings page has a different content:
1. General Settings (for paging group extension)
This group requires personal extension information and has the
following components:
Display Name is an optional parameter used to recognize the
caller. Usually the display name appears on the called party's
phone display whenever a call is performed.
Password requires a password for the new extension.
The extension password may only contain digits. If non-numeric
symbols are entered an "Incorrect Password: no symbol
characters allowed" error will prevent making the extension.
Confirm Password requires a password confirmation. If the
input is not corresponding to the one in the Extension
Password field, the error will appear: "Incorrect Password
confirm".
The Edit Paging Group link leads to the page where a list of extensions to be paged is created.
The Paging Group of Extension page lists all to be paged,
i.e. those that will automatically go off-hook (by automatic
activation of the phone's speaker) once the call to the
paging call comes in.
Add functional button opens an Add Entry page with an
only drop down list containing all available extensions on the
Quadro.
The Edit Access List link leads to the page where permissions for users to use the Paging Group service can be defined.
The Access List of Extension page lists all users (or a group
of users, if wildcard is used) and the appropriate permissions to
use the Paging Group through the corresponding extension.
The Add functional button opens an Add Entry page where a
new user with corresponding permissions might be created.
Page consists of the following components:
Call Type lists the available call types:
•
PBX - local calls from Quadro's extensions
•
SIP – calls through a SIP server
•
PSTN – calls from global telephone network
•
Auto – used for undefined call types. Destination
(independent on whether it is a PBX number, SIP
address or PSTN number) will be parsed through Call
Routing Table.
The Address text field is used to define the address to be
included in the Access List table. The value in this field is
strictly dependent on the Call Type defined in the same named
drop down list. If the PBX call type is selected, the Quadro
extension number should be defined in this field. For the SIP
call type, the SIP address should be defined, for the PSTN call
type, the PSTN user number should be defined here.
The Action drop down list is used to select the defined user's permissions (allow or deny) to use the Paging Group service for the extensions
included in the Paging Group table.
Quadro2x, Quadro2xi; SW Version 4.0.x
Quadro2x Manual II: Administrator's Guide – Administrator's Graphical User Interface

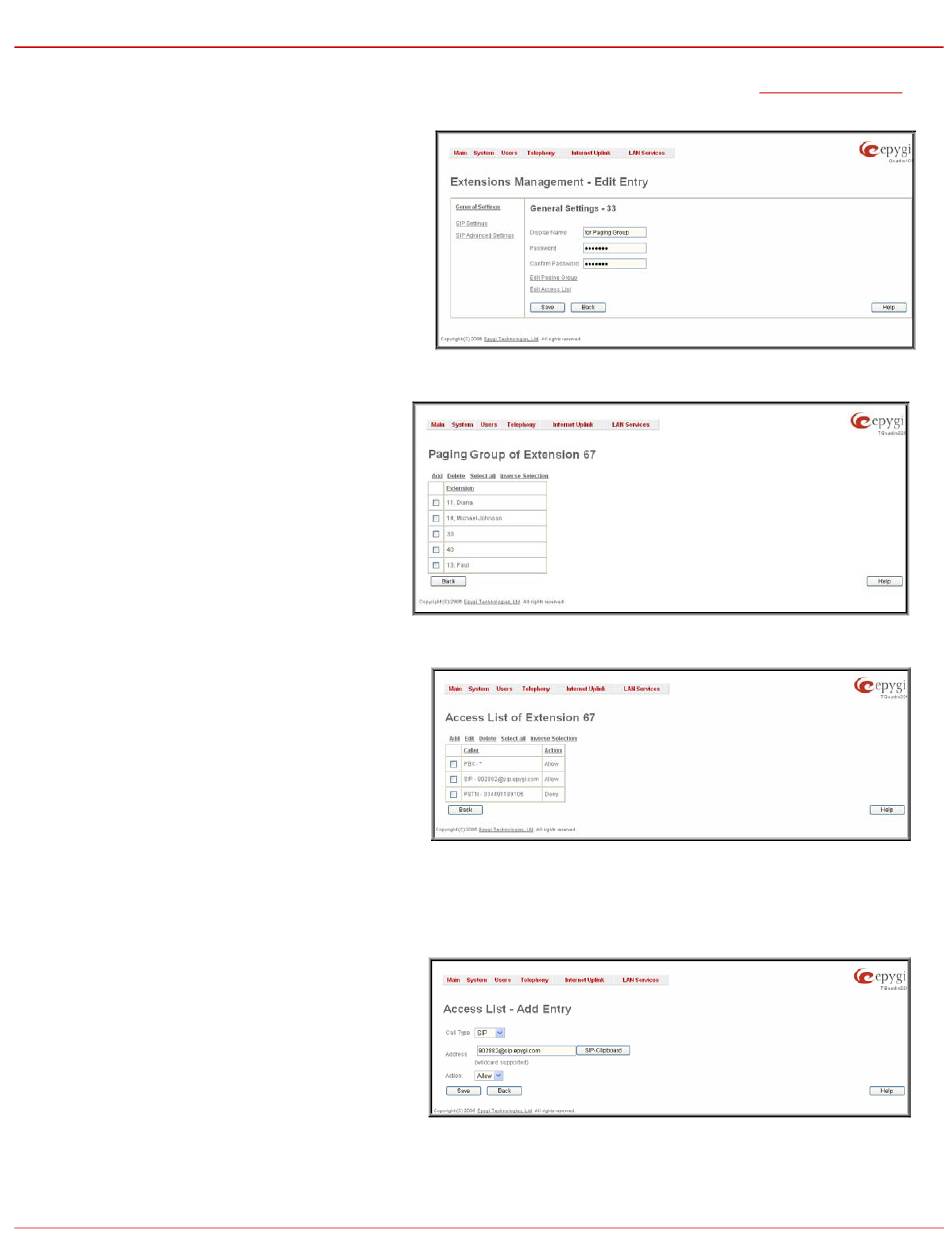

Fig. II-72: Extensions Management - Edit Entry – General Settings for paging extension page
U ser Extension
2 7 8 H
Fig. II-73: Paging Group of Extension page
Fig. II-74: Access List of Extension page for Paging group
Fig. II-75: Access List of Extension –Add Entry page for Paging Group
