QuadroM 32x/8L/26x/12Li/26xi Manual II: Administrator's Guide
Show button is used to generate an ISDN channels usage diagram chart
over the parameters selected above.
When this button is pressed, ISDN Channel Usage Statistics chart
appears. It represents dependency between the time frame and the number
of calls performed during that period. Additionally it may display the
maximum number of calls performed in the selected time frame.

Memory Status

The Memory Status page includes tables with the available User
Space information for each extension. These tables display the space
used by the voice mailbox and uploaded/recorded system greetings.
It shows the free and total space (counted in minutes/seconds) for
every extension. This page includes the following information:
Memory Size shows
minutes/seconds) available on the Quadro and assigned to all
extensions.
The table's links lead the administrator to the extension settings page
where User Space may be altered.
The System Memory row indicates the space occupied by the
universal extension recordings. Link refers to the
Extension Recordings page where universal extension system
messages may be uploaded.
Call Statistics shows the current number of calls with recorded
statistic entries.

Hardware Status

The Hardware Status table displays a list of the hardware devices
and parts present and currently available on the Quadro board. The
hardware device version number and additional comments about its
state are indicated here.
QuadroM 32x/8L/26x/12Li/26xi; (SW Version 5.2.x)
total memory space (counted
Upload Universal
in
Administrator's Menus

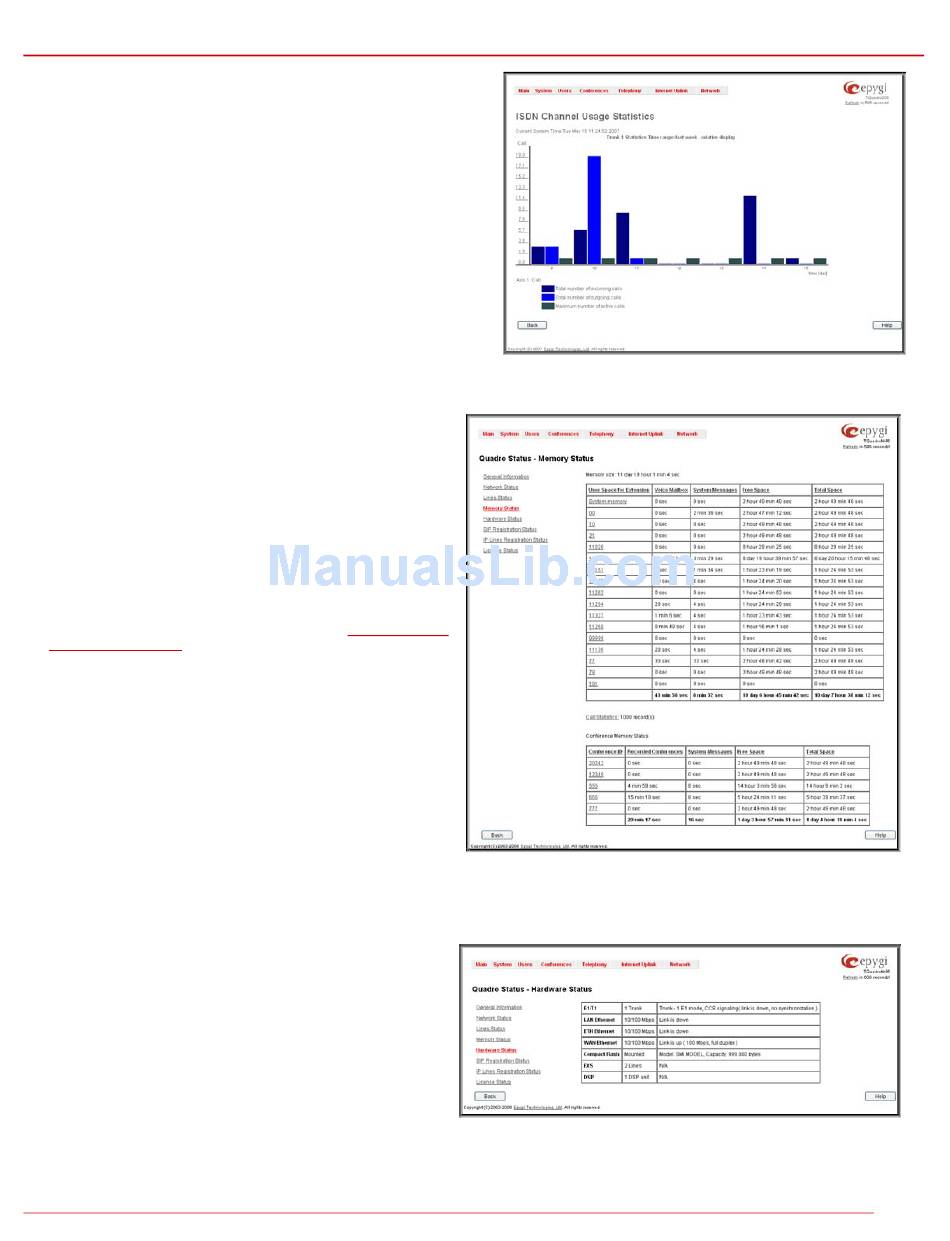

Fig. II-29: ISDN Channel Usage Statistics chart
Fig. II-30: Memory Status page
Fig. II-31: Hardware Status page
