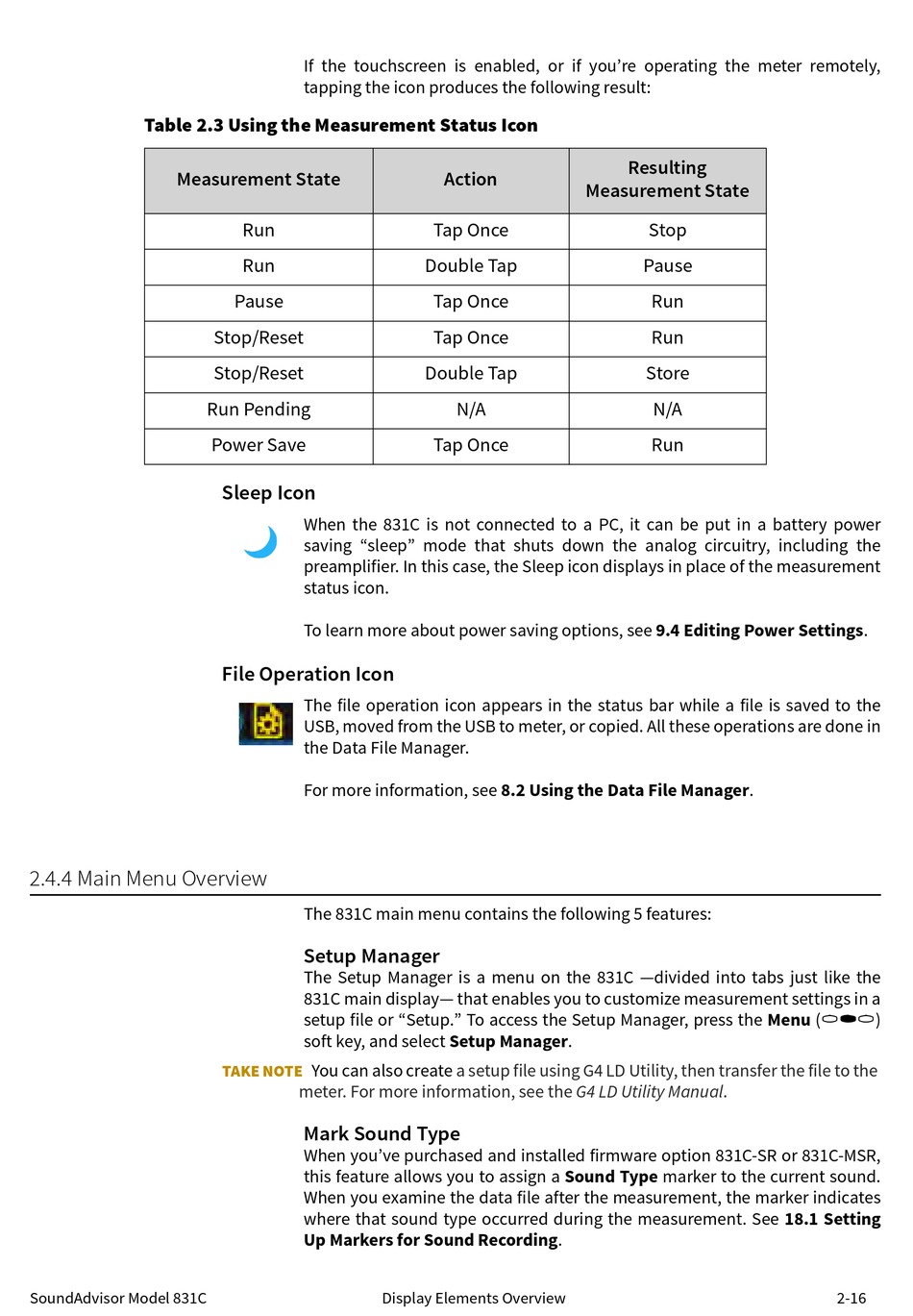

Table 2.3 Using the Measurement Status Icon
Measurement State

2.4.4 Main Menu Overview

SoundAdvisor Model 831C
If the touchscreen is enabled, or if you're operating the meter remotely,
tapping the icon produces the following result:
Run
Run
Pause
Stop/Reset
Stop/Reset
Run Pending
Power Save
Sleep Icon
When the 831C is not connected to a PC, it can be put in a battery power
saving "sleep" mode that shuts down the analog circuitry, including the
preamplifier. In this case, the Sleep icon displays in place of the measurement
status icon.
To learn more about power saving options, see 9.4 Editing Power Settings.
File Operation Icon
The file operation icon appears in the status bar while a file is saved to the
USB, moved from the USB to meter, or copied. All these operations are done in
the Data File Manager.
For more information, see 8.2 Using the Data File Manager.
The 831C main menu contains the following 5 features:
Setup Manager
The Setup Manager is a menu on the 831C —divided into tabs just like the
831C main display— that enables you to customize measurement settings in a
setup file or "Setup." To access the Setup Manager, press the Menu (
soft key, and select Setup Manager.
You can also create
TAKE NOTE
meter. For more information, see the G4 LD Utility Manual.
Mark Sound Type
When you've purchased and installed firmware option 831C-SR or 831C-MSR,
this feature allows you to assign a Sound Type marker to the current sound.
When you examine the data file after the measurement, the marker indicates
where that sound type occurred during the measurement. See 18.1 Setting
Up Markers for Sound Recording.
Action
Tap Once
Double Tap
Tap Once
Tap Once
Double Tap
N/A
Tap Once
a setup file using G4 LD Utility, then transfer the file to the
Display Elements Overview
Resulting
Measurement State
Stop
Pause
Run
Run
Store
N/A
Run
/*/
)
