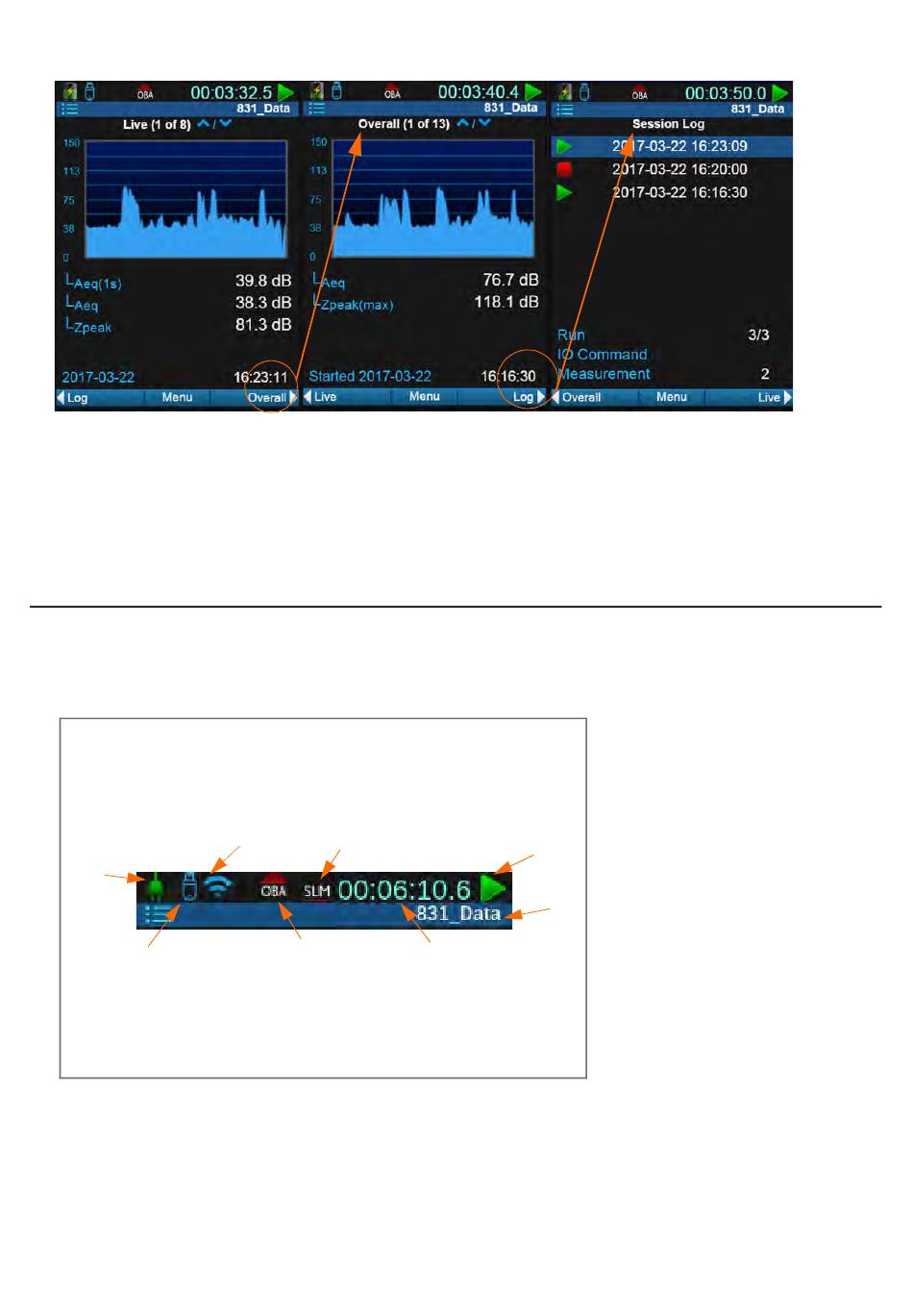

FIGURE 2-5 Navigating Tabs to the Right

2.4.3 About Status Bar Icons and Indicators

FIGURE 2-6 Status Bar
1.
8.
SoundAdvisor Model 831C
For complete details on each tab and page, see
LEARN MORE
Display.
The status bar at the top of the screen displays the meter, measurement,
connection, alert status, and battery status as shown in Figure 2-6.
2.
3.
7.
Power Indicators
Battery Power Indicator
The battery icon indicates the state of the battery charge by color and
volume. When using battery power, the battery icon indicates the state of the
Display Elements Overview
4.
5.
6.
Module 4 Using the Data
1.
Power Indicator
2.
WiFi Status
3.
SLM Indicator
4.
Run Status
5.
File Name
6.
Measurement Runtime
7.
OBA Indicator
8.
USB Memory Status
