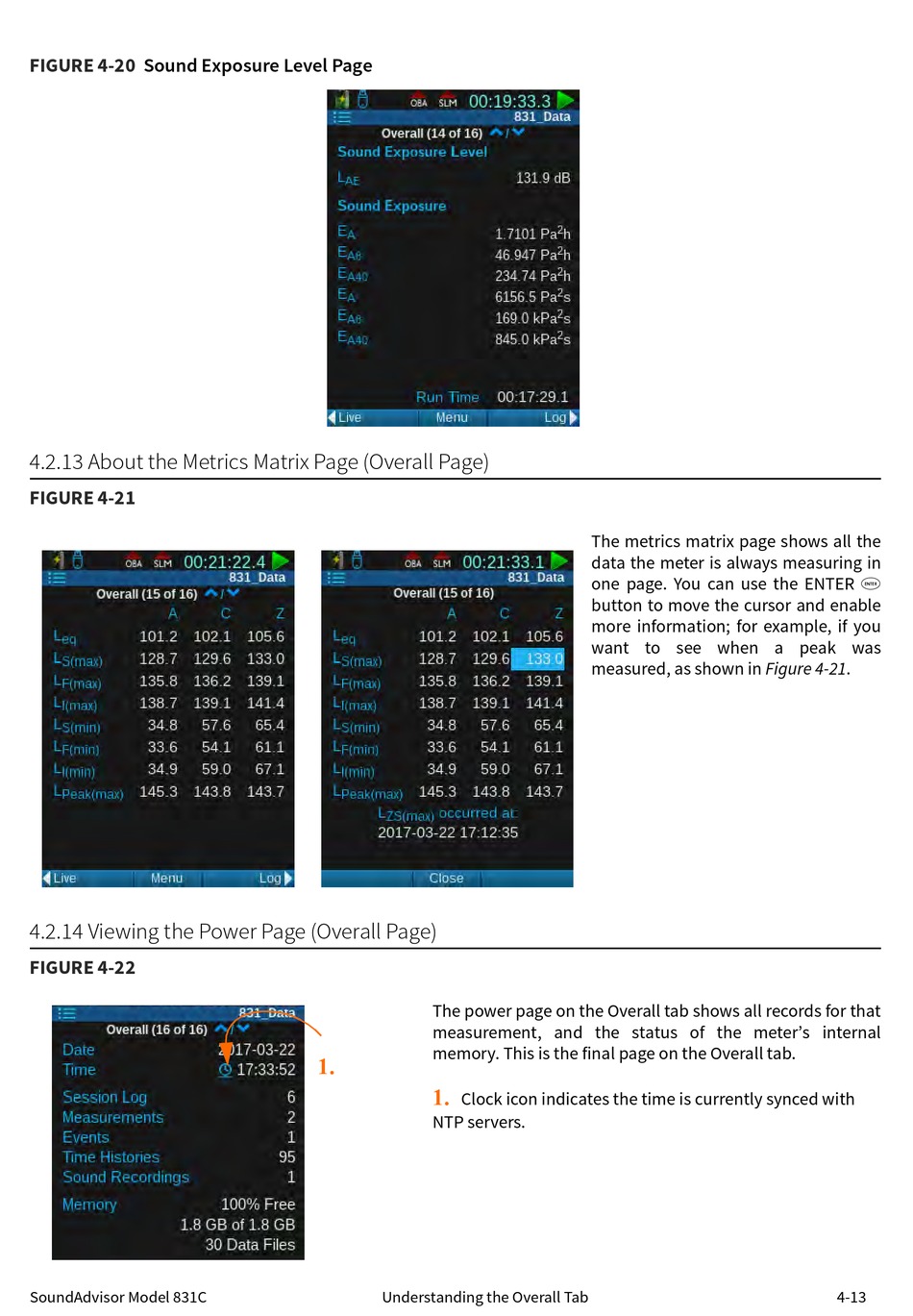

FIGURE 4-20 Sound Exposure Level Page

4.2.13 About the Metrics Matrix Page (Overall Page)

FIGURE 4-21

4.2.14 Viewing the Power Page (Overall Page)

FIGURE 4-22
SoundAdvisor Model 831C
The power page on the Overall tab shows all records for that
measurement, and the status of the meter's internal
memory. This is the final page on the Overall tab.
1.
1.
Clock icon indicates the time is currently synced with
NTP servers.
Understanding the Overall Tab
The metrics matrix page shows all the
data the meter is always measuring in
one page. You can use the ENTER 5
button to move the cursor and enable
more information; for example, if you
want to see when a peak was
measured, as shown in Figure 4-21.
4-13
