Setting Up The Meter's Network Id; Setting A Static Ip Address - Larson Davis SoundAdvisor 831C Reference Manual

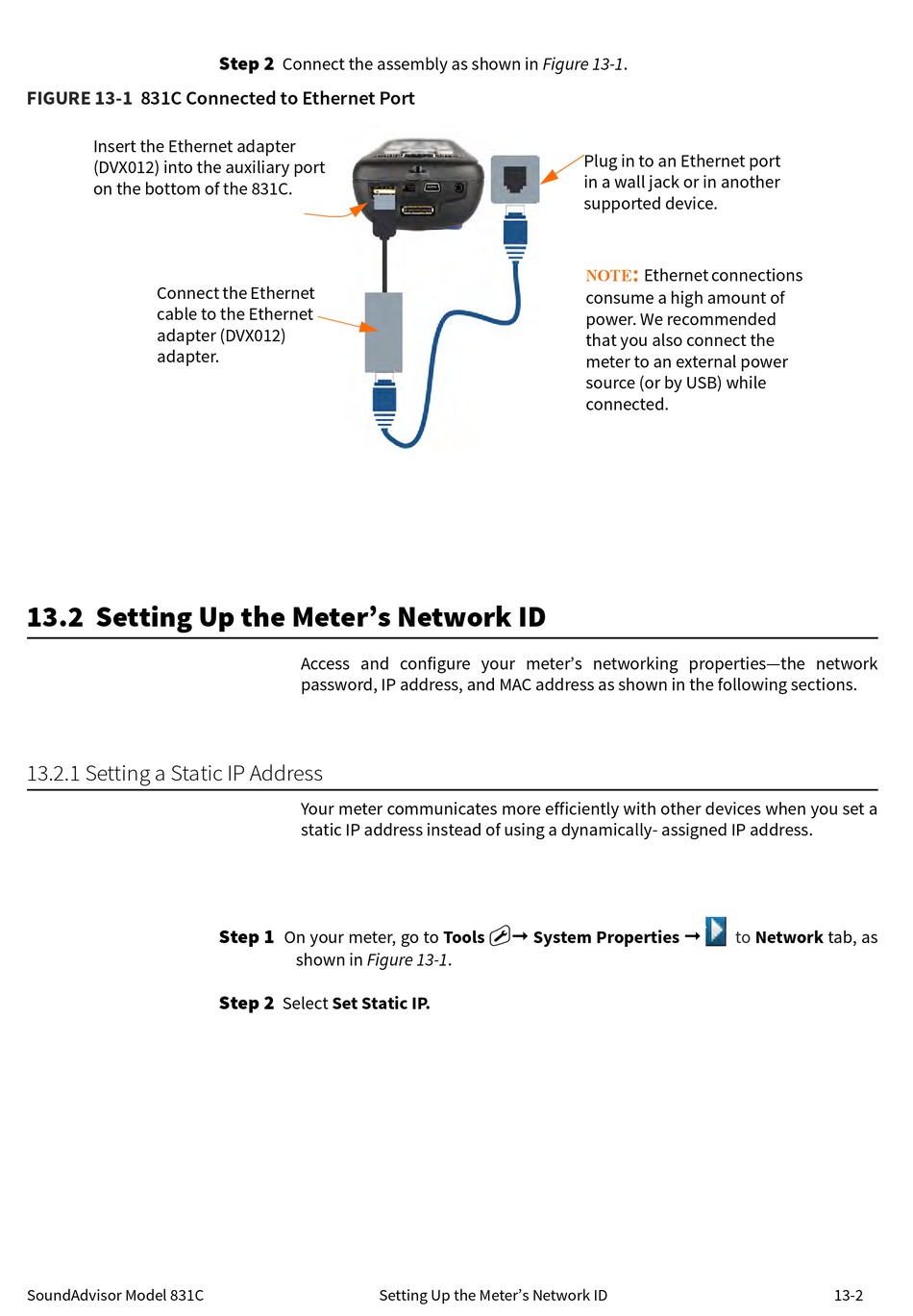

FIGURE 13-1 831C Connected to Ethernet Port
Insert the Ethernet adapter
(DVX012) into the auxiliary port
on the bottom of the 831C.
Connect the Ethernet
cable to the Ethernet
adapter (DVX012)
adapter.

13.2 Setting Up the Meter's Network ID

13.2.1 Setting a Static IP Address

SoundAdvisor Model 831C
Step 2
Connect the assembly as shown in Figure 13-1.
Access and configure your meter's networking properties—the network
password, IP address, and MAC address as shown in the following sections.
Your meter communicates more efficiently with other devices when you set a
static IP address instead of using a dynamically- assigned IP address.
Step 1
On your meter, go to Tools
shown in Figure 13-1.
Step 2
Select Set Static IP.
Setting Up the Meter's Network ID
Plug in to an Ethernet port
in a wall jack or in another
supported device.
:
NOTE
Ethernet connections
consume a high amount of
power. We recommended
that you also connect the
meter to an external power
source (or by USB) while
connected.
3
 System Properties  Network tab, as
to
13-2
