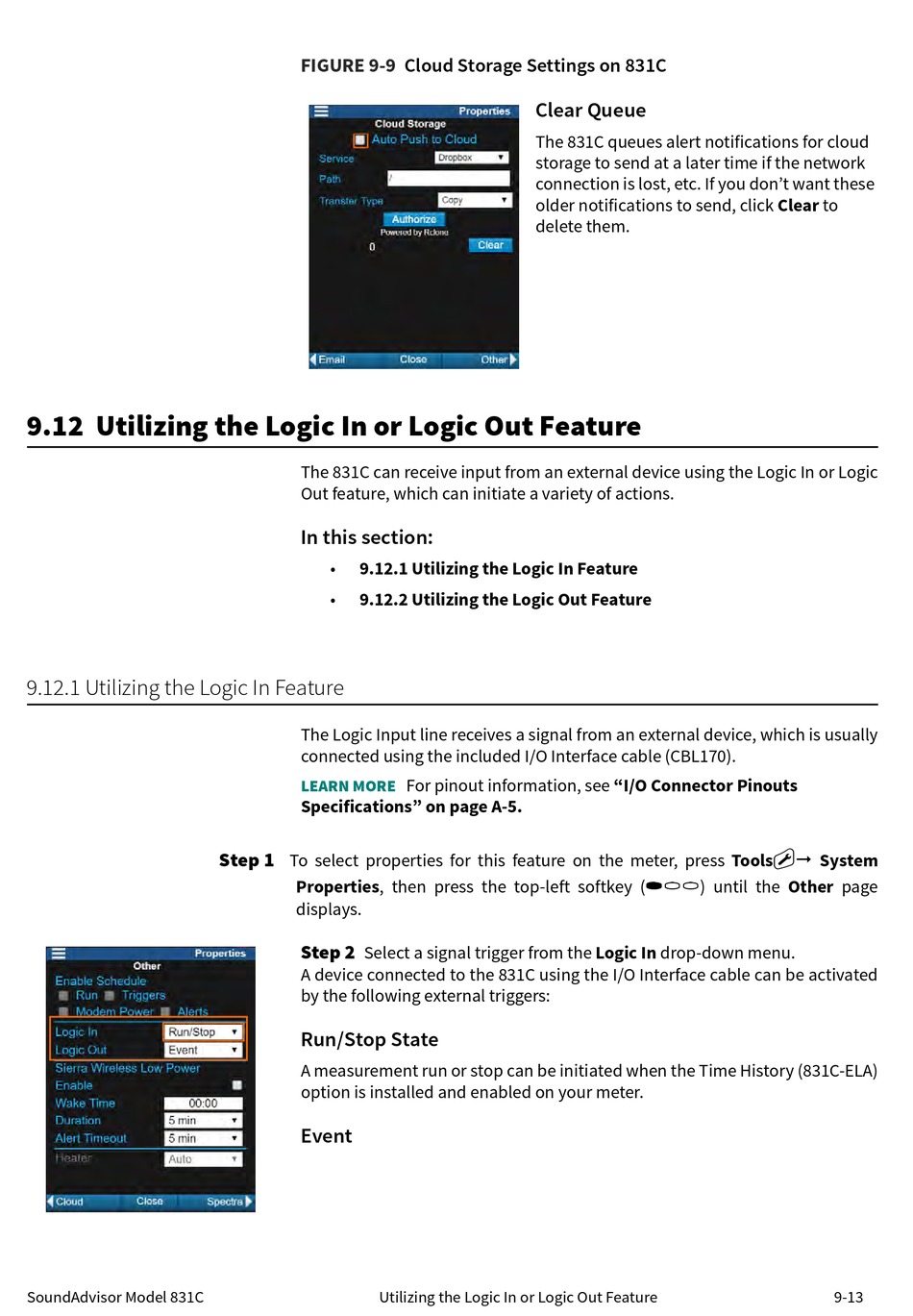

9.12 Utilizing the Logic In or Logic Out Feature

9.12.1 Utilizing the Logic In Feature
SoundAdvisor Model 831C
FIGURE 9-9
The 831C can receive input from an external device using the Logic In or Logic
Out feature, which can initiate a variety of actions.
In this section:
• 9.12.1 Utilizing the Logic In Feature
• 9.12.2 Utilizing the Logic Out Feature
The Logic Input line receives a signal from an external device, which is usually
connected using the included I/O Interface cable (CBL170).
LEARN MORE
Specifications" on page A-5.
Step 1
To select properties for this feature on the meter, press Tools
Properties, then press the top-left softkey (
displays.
Step 2
Select a signal trigger from the Logic In drop-down menu.
A device connected to the 831C using the I/O Interface cable can be activated
by the following external triggers:
Run/Stop State
A measurement run or stop can be initiated when the Time History (831C-ELA)
option is installed and enabled on your meter.
Event
Utilizing the Logic In or Logic Out Feature
Cloud Storage Settings on 831C
Clear Queue
The 831C queues alert notifications for cloud
storage to send at a later time if the network
connection is lost, etc. If you don't want these
older notifications to send, click Clear to
delete them.
