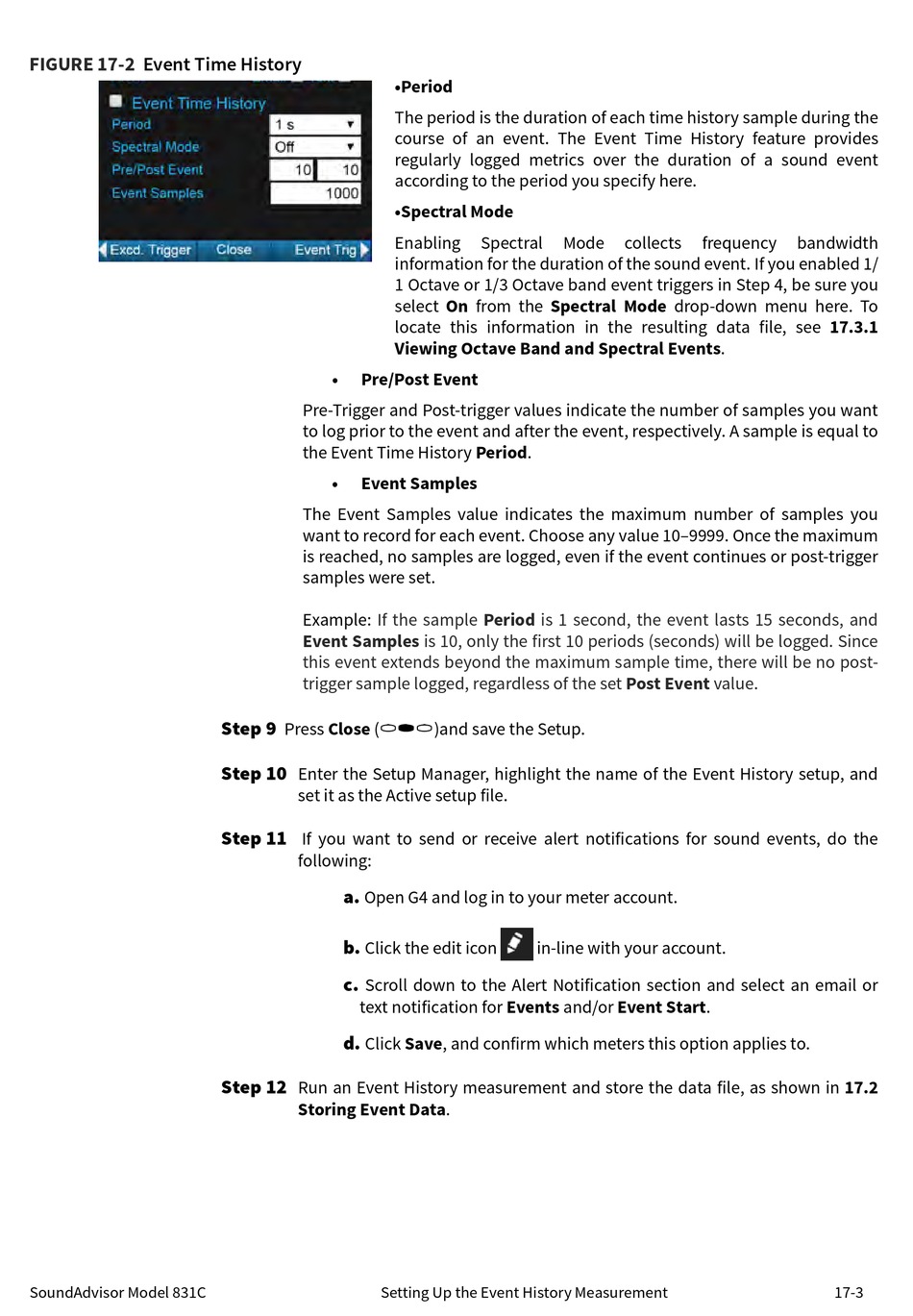

FIGURE 17-2 Event Time History
SoundAdvisor Model 831C
• Pre/Post Event
Pre-Trigger and Post-trigger values indicate the number of samples you want
to log prior to the event and after the event, respectively. A sample is equal to
the Event Time History Period.
• Event Samples
The Event Samples value indicates the maximum number of samples you
want to record for each event. Choose any value 10–9999. Once the maximum
is reached, no samples are logged, even if the event continues or post-trigger
samples were set.
If the sample Period is 1 second, the event lasts 15 seconds, and
Example:
Event Samples is 10, only the first 10 periods (seconds) will be logged. Since
this event extends beyond the maximum sample time, there will be no post-
trigger sample logged, regardless of the set Post Event value.
/*/
Step 9
Press Close (
Step 10
Enter the Setup Manager, highlight the name of the Event History setup, and
set it as the Active setup file.
Step 11
If you want to send or receive alert notifications for sound events, do the
following:
a.
Open G4 and log in to your meter account.
b.
Click the edit icon
c.
Scroll down to the Alert Notification section and select an email or
text notification for Events and/or Event Start.
d.
Click Save, and confirm which meters this option applies to.
Step 12
Run an Event History measurement and store the data file, as shown in 17.2
Storing Event Data.

Setting Up the Event History Measurement

•Period
The period is the duration of each time history sample during the
course of an event. The Event Time History feature provides
regularly logged metrics over the duration of a sound event
according to the period you specify here.
•Spectral Mode
Enabling Spectral Mode
information for the duration of the sound event. If you enabled 1/
1 Octave or 1/3 Octave band event triggers in Step 4, be sure you
select On from the Spectral Mode drop-down menu here. To
locate this information in the resulting data file, see 17.3.1
Viewing Octave Band and Spectral Events.
)and save the Setup.
in-line with your account.
collects frequency bandwidth
