Larson Davis SoundAdvisor 831C Reference Manual page 63

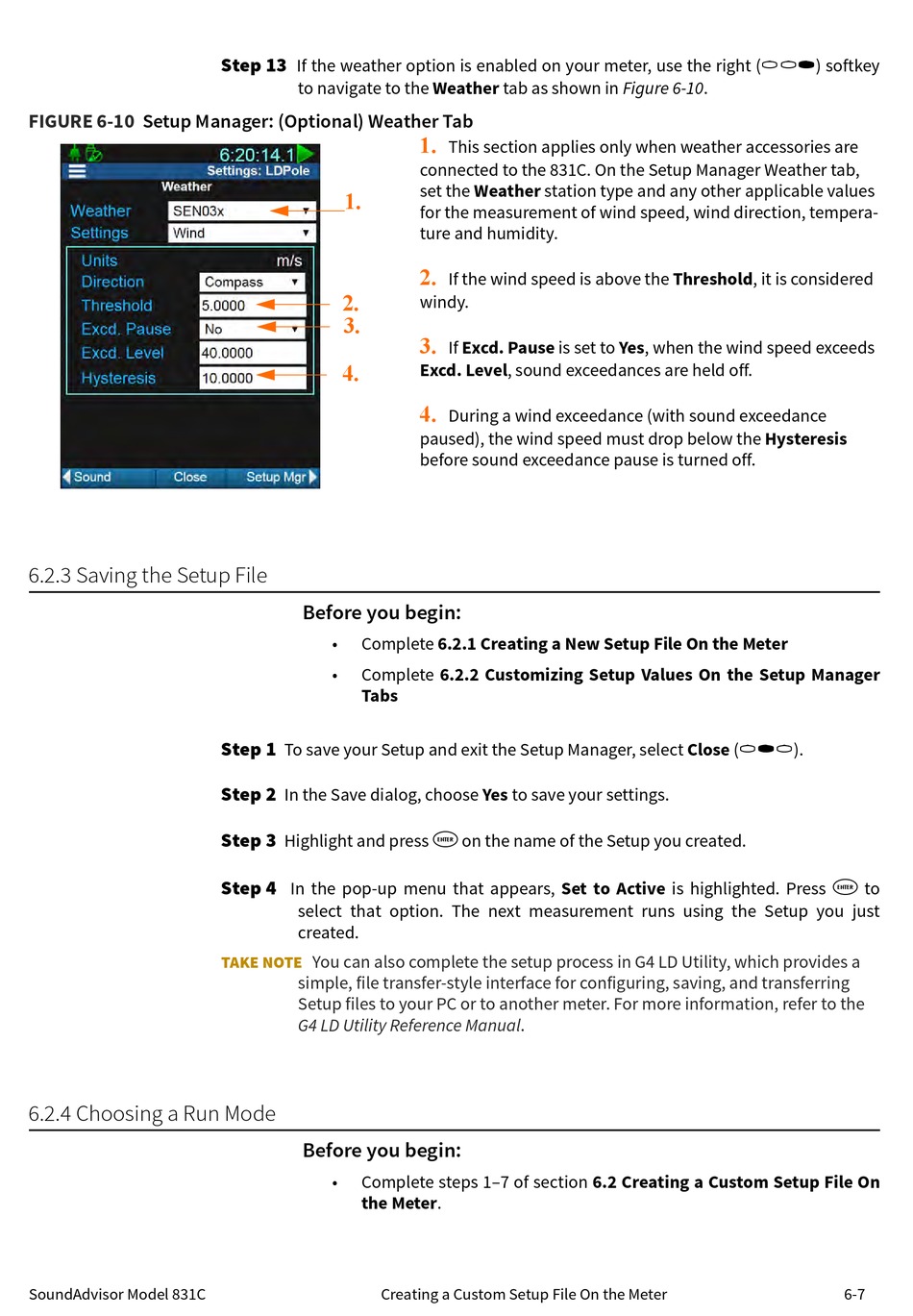

FIGURE 6-10 Setup Manager: (Optional) Weather Tab
6.2.3 Saving the Setup File
6.2.4 Choosing a Run Mode
SoundAdvisor Model 831C
Step 13
If the weather option is enabled on your meter, use the right (
to navigate to the Weather tab as shown in Figure 6-10.
1.
2.
3.
4.
Before you begin:
• Complete 6.2.1 Creating a New Setup File On the Meter
Complete 6.2.2 Customizing Setup Values On the Setup Manager
•
Tabs
Step 1
To save your Setup and exit the Setup Manager, select Close (
Step 2
In the Save dialog, choose Yes to save your settings.
Step 3
Highlight and press
Step 4
In the pop-up menu that appears, Set to Active is highlighted. Press
select that option. The next measurement runs using the Setup you just
created.
You can also complete the setup process in G4 LD Utility, which provides a
TAKE NOTE
simple, file transfer-style interface for configuring, saving, and transferring
Setup files to your PC or to another meter. For more information, refer to the
G4 LD Utility Reference Manual.
Before you begin:
Complete steps 1–7 of section 6.2 Creating a Custom Setup File On
•
the Meter.
Creating a Custom Setup File On the Meter
1.
This section applies only when weather accessories are
connected to the 831C. On the Setup Manager Weather tab,
set the Weather station type and any other applicable values
for the measurement of wind speed, wind direction, tempera-
ture and humidity.
2.
If the wind speed is above the Threshold, it is considered
windy.
3.
If Excd. Pause is set to Yes, when the wind speed exceeds
Excd. Level, sound exceedances are held off.
4.
During a wind exceedance (with sound exceedance
paused), the wind speed must drop below the Hysteresis
before sound exceedance pause is turned off.
5
on the name of the Setup you created.
//*
) softkey
/*/
).
5
to
6-7
