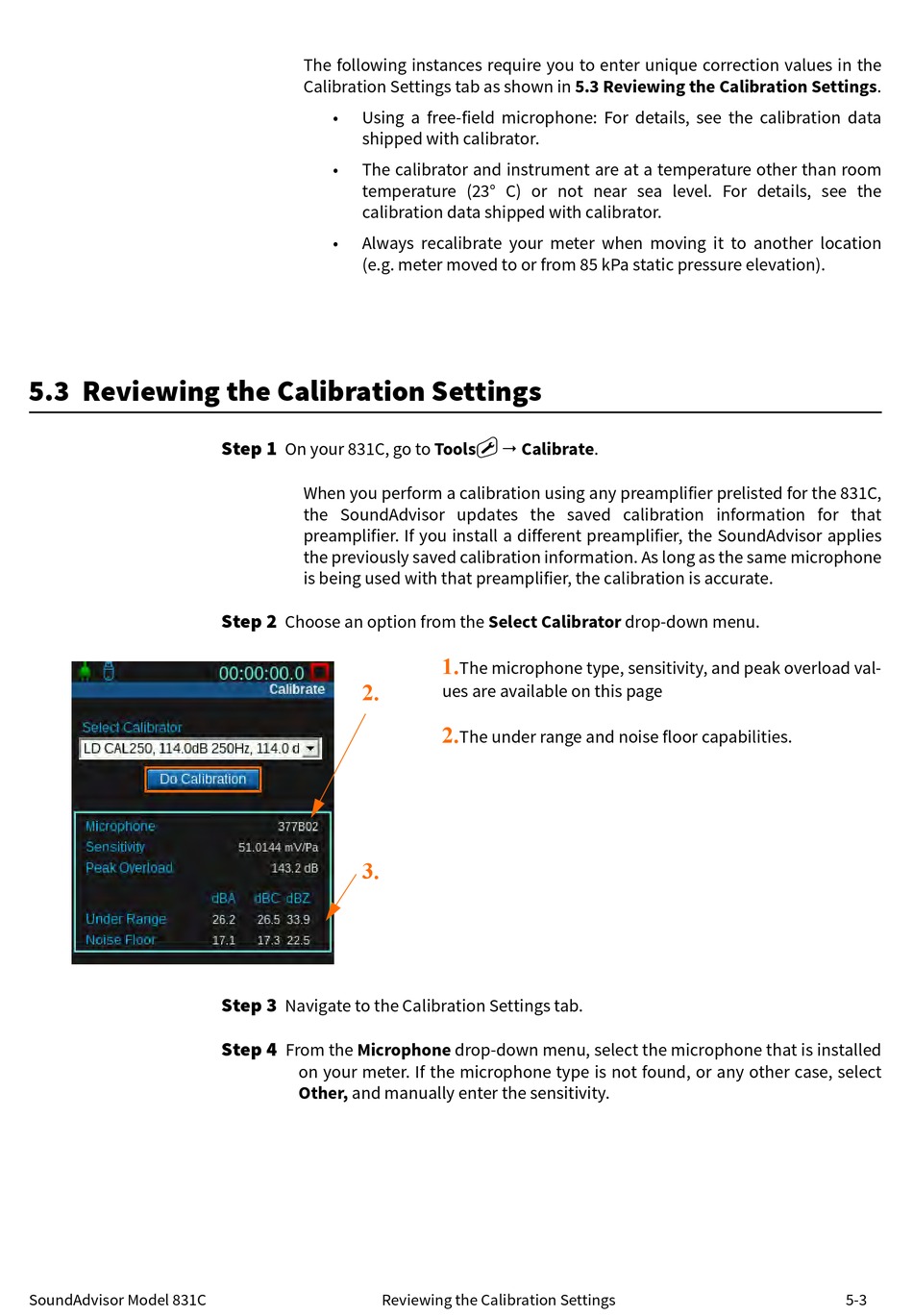

5.3 Reviewing the Calibration Settings

SoundAdvisor Model 831C
The following instances require you to enter unique correction values in the
Calibration Settings tab as shown in 5.3 Reviewing the Calibration Settings.
• Using a free-field microphone: For details, see the calibration data
shipped with calibrator.
• The calibrator and instrument are at a temperature other than room
temperature (23° C) or not near sea level. For details, see the
calibration data shipped with calibrator.
• Always recalibrate your meter when moving it to another location
(e.g. meter moved to or from 85 kPa static pressure elevation).
Step 1
On your 831C, go to Tools
When you perform a calibration using any preamplifier prelisted for the 831C,
the SoundAdvisor updates the saved calibration information for that
preamplifier. If you install a different preamplifier, the SoundAdvisor applies
the previously saved calibration information. As long as the same microphone
is being used with that preamplifier, the calibration is accurate.
Step 2
Choose an option from the Select Calibrator drop-down menu.
2.
3.
Step 3
Navigate to the Calibration Settings tab.
Step 4
From the Microphone drop-down menu, select the microphone that is installed
on your meter. If the microphone type is not found, or any other case, select
Other, and manually enter the sensitivity.
Reviewing the Calibration Settings
3
 Calibrate.
1.
The microphone type, sensitivity, and peak overload val-
ues are available on this page
2.
The under range and noise floor capabilities.
