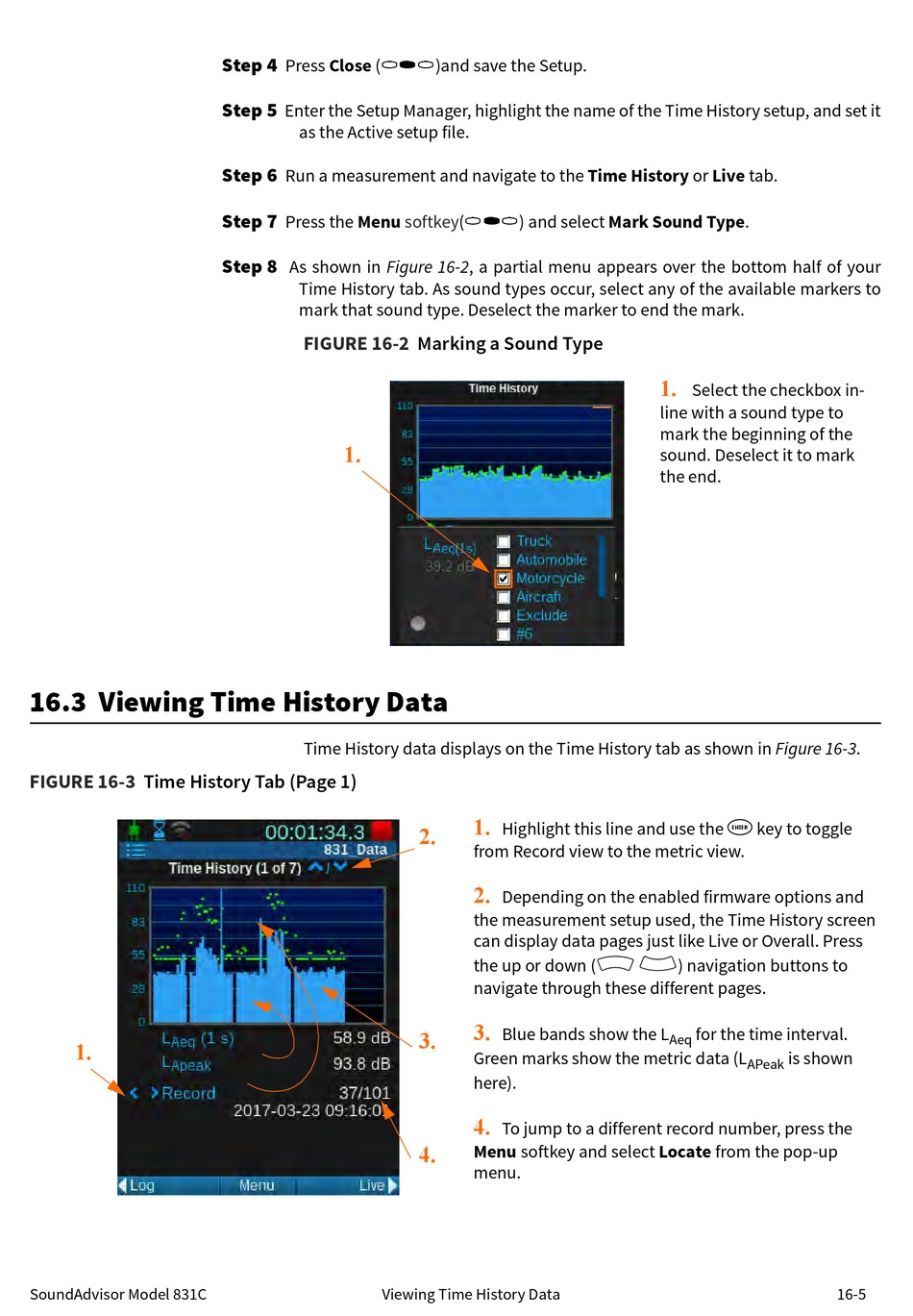

Larson Davis SoundAdvisor 831C Reference Manual page 126

16.3 Viewing Time History Data
FIGURE 16-3 Time History Tab (Page 1)
1.
SoundAdvisor Model 831C
/*/
Step 4
Press Close (
Step 5
Enter the Setup Manager, highlight the name of the Time History setup, and set it
as the Active setup file.
Step 6
Run a measurement and navigate to the Time History or Live tab.
Step 7
Press the Menu softkey(
Step 8
As shown in Figure 16-2, a partial menu appears over the bottom half of your
Time History tab. As sound types occur, select any of the available markers to
mark that sound type. Deselect the marker to end the mark.
FIGURE 16-2
1.
Time History data displays on the Time History tab as shown in Figure 16-3.
Viewing Time History Data
)and save the Setup.
/*/
) and select Mark Sound Type.
Marking a Sound Type
1.
Highlight this line and use the
2.
from Record view to the metric view.
2.
Depending on the enabled firmware options and
the measurement setup used, the Time History screen
can display data pages just like Live or Overall. Press
the up or down (
navigate through these different pages.
3.
Blue bands show the L
3.
Green marks show the metric data (L
here).
4.
To jump to a different record number, press the
4.
Menu softkey and select Locate from the pop-up
menu.
1.
Select the checkbox in-
line with a sound type to
mark the beginning of the
sound. Deselect it to mark
the end.
5
key to toggle
8 2
) navigation buttons to
for the time interval.
Aeq
APeak
is shown
16-5
