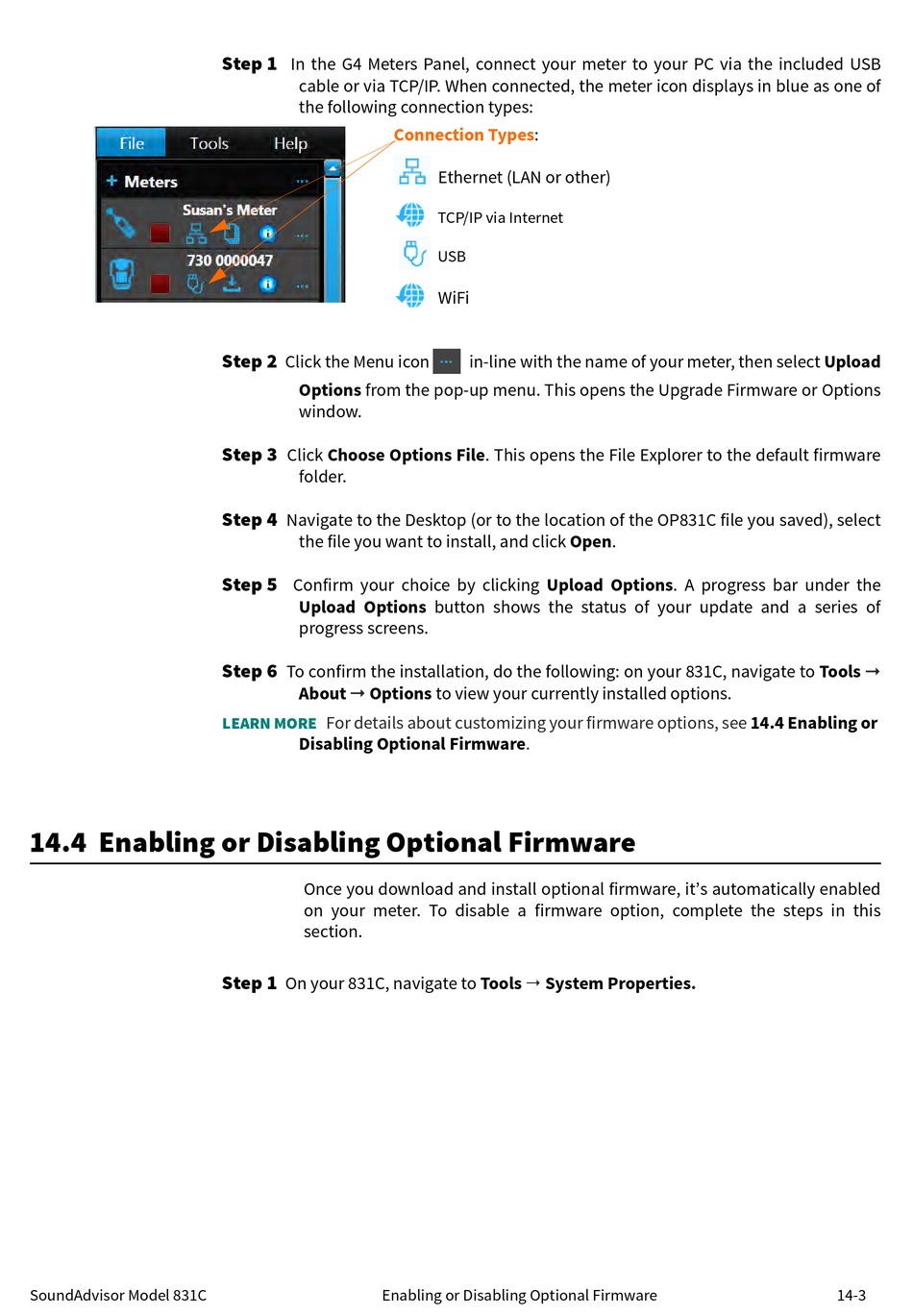

Larson Davis SoundAdvisor 831C Reference Manual page 113

14.4 Enabling or Disabling Optional Firmware
SoundAdvisor Model 831C
Step 1
In the G4 Meters Panel, connect your meter to your PC via the included USB
cable or via TCP/IP. When connected, the meter icon displays in blue as one of
the following connection types:
Connection
Step 2
Click the Menu icon
Options from the pop-up menu. This opens the Upgrade Firmware or Options
window.
Step 3
Click Choose Options File. This opens the File Explorer to the default firmware
folder.
Step 4
Navigate to the Desktop (or to the location of the OP831C file you saved), select
the file you want to install, and click Open.
Step 5
Confirm your choice by clicking Upload Options. A progress bar under the
Upload Options button shows the status of your update and a series of
progress screens.
Step 6
To confirm the installation, do the following: on your 831C, navigate to Tools
About  Options to view your currently installed options.
For details about customizing your firmware options, see
LEARN MORE
Disabling Optional
Once you download and install optional firmware, it's automatically enabled
on your meter. To disable a firmware option, complete the steps in this
section.
Step 1
On your 831C, navigate to Tools
Enabling or Disabling Optional Firmware
Types:
Ethernet (LAN or other)
TCP/IP via Internet
USB
WiFi
in-line with the name of your meter, then select Upload
Firmware.
System Properties.


14.4 Enabling or
14-3
