2.3 Display Elements O er iew

2.3.1 Changing Display Color Themes

2.3.2 Using Tabs and Pages

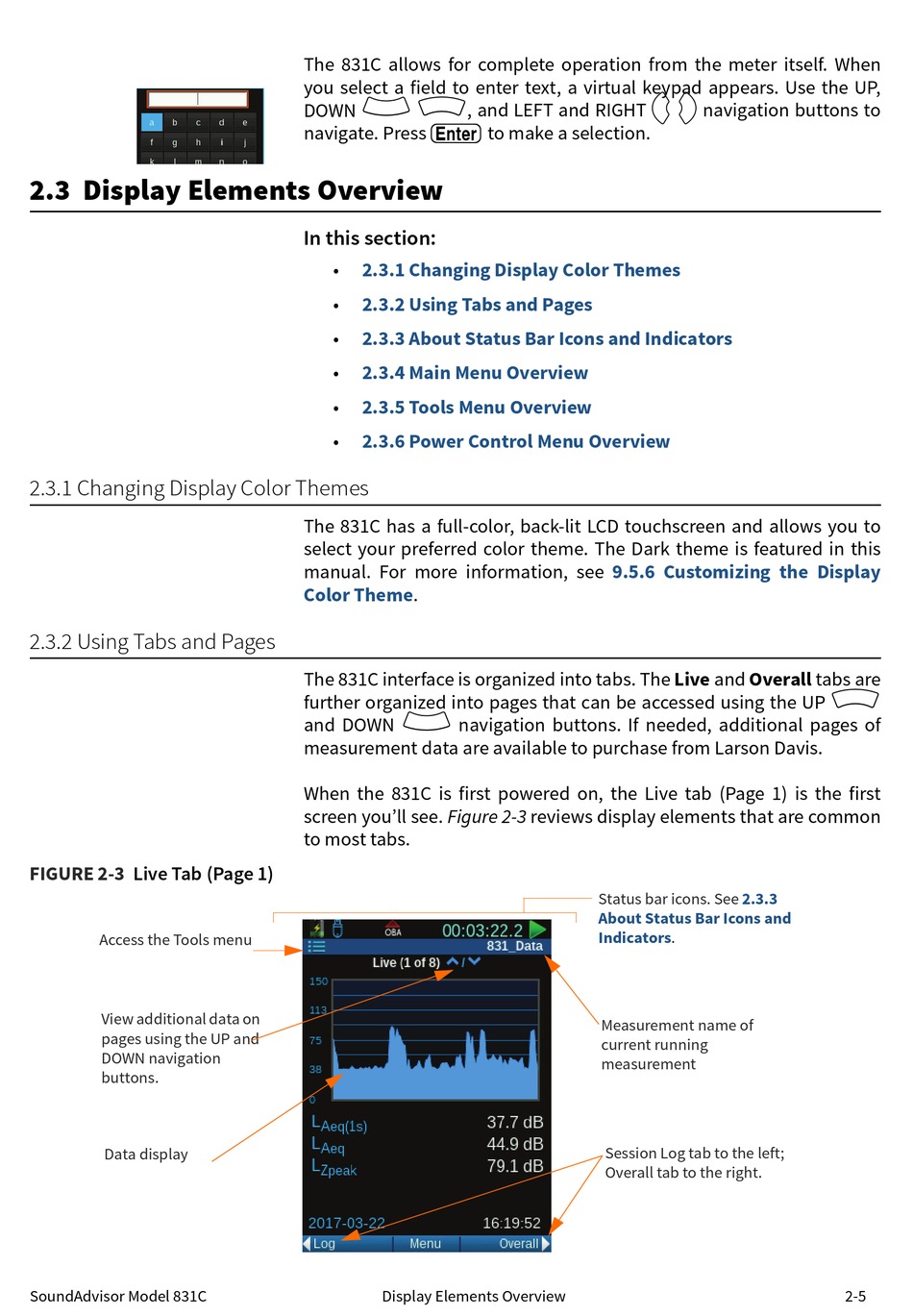

FIGURE 2-3 Live Tab (Page 1)
Access the Tools menu
View additional data on
pages using the UP and
DOWN navigation
buttons.
Data display
SoundAdvisor Model 831C
The 831C allows for complete operation from the meter itself. When
you select a field to enter text, a virtual keypad appears. Use the UP,
DOWN , and LEFT and RIGHT
navigate. Press e to make a selection.
In this section:
• 2.3.1 Changing Display Color Themes
2.3.2 Using Tabs and Pages
•

2.3.3 About Status Bar Icons and Indicators

•
•

2.3.4 Main Menu Overview

2.3.5 Tools Menu Overview

•

2.3.6 Power Control Menu Overview

•
The 831C has a full-color, back-lit LCD touchscreen and allows you to
select your preferred color theme. The Dark theme is featured in this
manual. For more information, see
Color Theme.
The 831C interface is organized into tabs. The Live and Overall tabs are
further organized into pages that can be accessed using the UP
and DOWN navigation buttons. If needed, additional pages of
measurement data are available to purchase from Larson Davis.
When the 831C is first powered on, the Live tab (Page 1) is the first
screen you'll see. Figure - reviews display elements that are common
to most tabs.

Display Elements Overview

navigation buttons to
9.5.6 Customizing the Display
Status bar icons. See 2.3.3
About Status Bar Icons and
Indicators.
Measurement name of
current running
measurement
Session Log tab to the left
Overall tab to the right.
