Larson Davis Spartan 730 Reference Manual

Noise dosimeter
Hide thumbs Also See for Spartan 730:
Table of Contents

Advertisement

Quick Links

Download this manual
Larson Davis

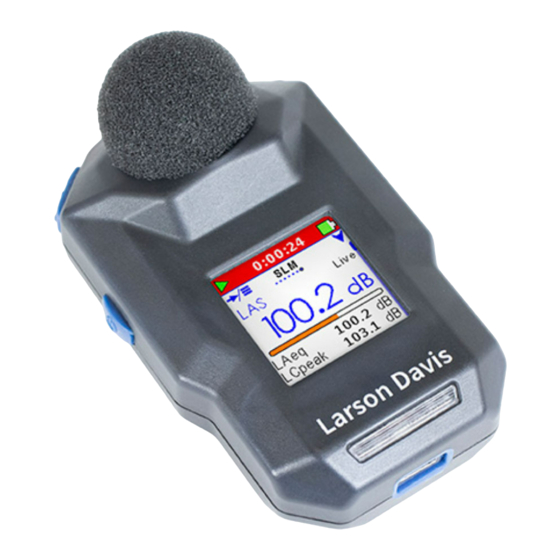

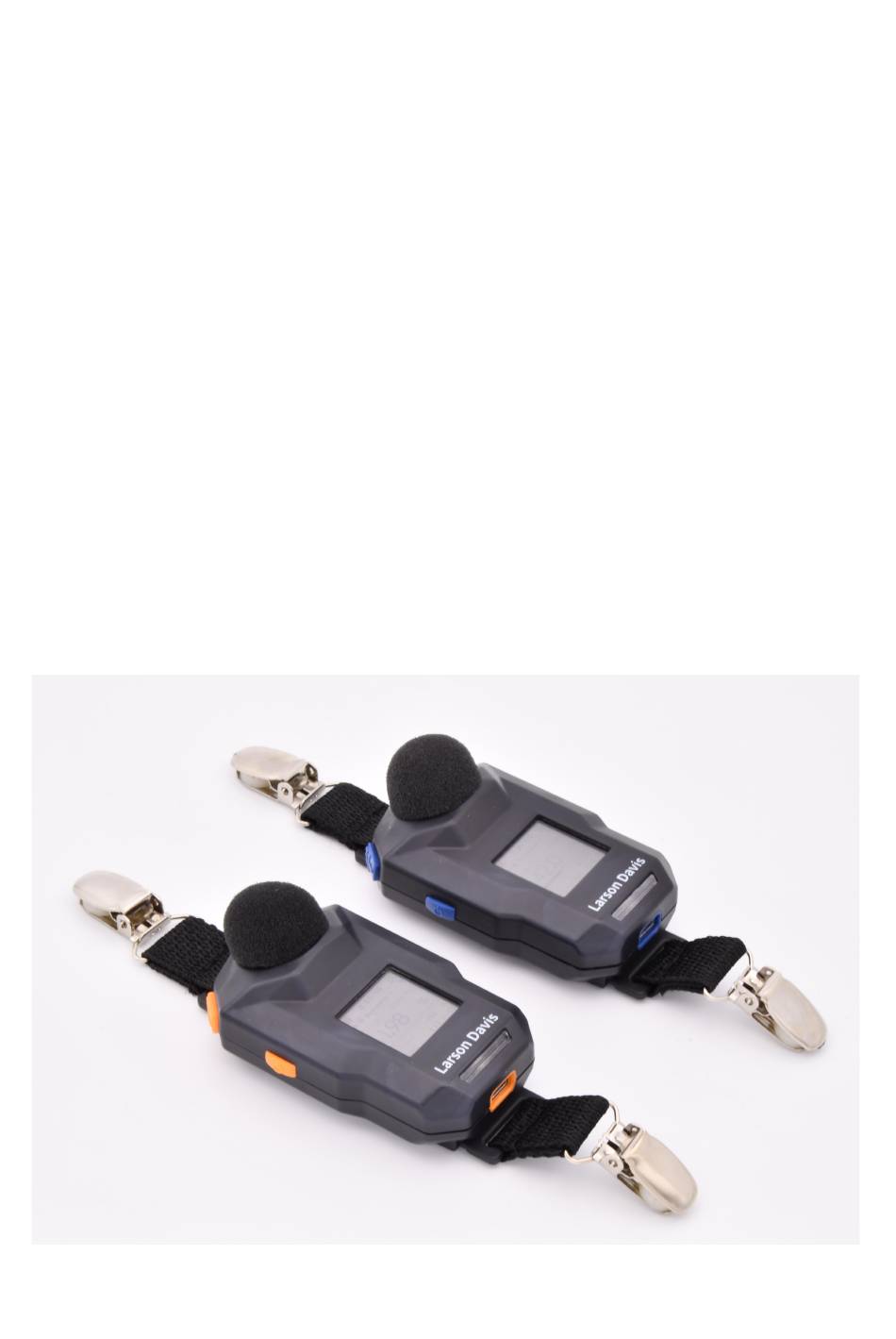

Spartan Model 730
Noise Dosimeter
Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spartan 730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Larson Davis Spartan 730

Summary of Contents for Larson Davis Spartan 730

  • Page 1 Larson Davis Spartan Model 730 Noise Dosimeter Reference Manual...
  • Page 2 You can access important safety and conformity information on the e-label, which is located on the device’s About page. To view the About page, power on your Spartan dosimeter, press and hold , press , press SELECT SELECT Spartan 730/730IS Dosimeter...

  • Page 3: Table Of Contents

    Table of Contents Section 1 Product Overview 1.1 Dosimeter Features 1.2 Getting to Know Your Spartan 730 Noise Dosimeter Section 2 Getting Started 2.1 Installing G4 2.2 Installing LD Atlas App for Mobile Devices 2.3 Charging the Spartan 730 2.4 Connecting to Your Dosimeter in G4 2.5 Upgrading Dosimeter Firmware or Options...

  • Page 4: Product Overview

    1.1.4 Applications 1.1.5 Hardware Features 1.1.6 Performance Features 1.1.7 Available Firmware Options 1.1.8 Available Accessories 1.2 Getting to Know Your Spartan 730 Noise Dosimeter ........8 1.2.1 Microphone and Windscreen 1.2.2 Buttons 1.2.3 Clothing Clips 1.2.4 Front LED Indicators 1.2.5 Battery 1.2.6...

  • Page 5: Dosimeter Features

    1.1 Dosimeter Features The following easy-to-use features make the Spartan 730 the best choice for your project: • Monitor noise exposure data in real-time, remotely from the included LD mobile app or the G4 LD Utility. • Auto-calibrate your dosimeter simply by attaching the included calibrator.
  • Page 6 Report any damage or hard shell charging case, if purchased. When you receive it, verify that shortage immediately. Contact Larson Davis as shown on the last your package contains the items listed here for your case configuration. page of this manual.
  • Page 7 C. Optional: Calibrator (CAL150) with 1/4” adapter D. LD USB drive: E. Cables & Accessories include: • Spartan 730 Quick Start Guide • LD USB drive contains: • LD Bluetooth dongle (DVX016) G4 LD Utility Software • Electrical outlet adapter Copy of Calibration Certificate •...
  • Page 8 • 2” safety pins (for heavy clothing) G4 LD Utility Software for PC Spartan 730 Reference Manual 1.1.2 Serial Numbers The Spartan 730 dosimeter’s model and serial number is printed on the TRY THIS We recommend that you record the purchase date, model, label on the back of the meter.
  • Page 9 • Records sound events in 16-bit WAV format by using event detectors. 1.1.4 Applications The Spartan 730 or 730IS personal noise dosimeter is ideal for the following applications: • Measuring factory, airport, and mine noise • Measuring construction noise •...
  • Page 10 • Multiple language support: English, Spanish, French, Italian, German, and Portuguese 1.1.7 Available Firmware Options The following optional firmware is available for the Spartan 730 or 730IS dosimeter: • Event Sound Recording (730-ESR) For more information, see 6.1 "Setting Event Sound Recording Options"...

  • Page 11: Getting To Know Your Spartan 730 Noise Dosimeter

    (PSA029) • Additional 1-inch Windscreens (WS012) 1.2 Getting to Know Your Spartan 730 Noise Dosimeter This section describes the hardware and device components of the Spartan 730 Noise dosimeter. For additional details and specifications for each component, see Appendix A Technical Specifications.
  • Page 12 1.2.1 Microphone and Windscreen The Spartan 730 comes with a high-quality, 1/4-inch, free-field, prepolarized condenser microphone (Model 375A03). The windscreen (WS012) is a 1” diameter cone made of open cell foam, which contributes to the most accurate measurement. Wind blowing across the microphone generates pressure fluctuations on the microphone diaphragm.
  • Page 13 Exposure Alert for Action Level and Limit Level When enabled in the measurement configuration, the LED alarm lights on the Spartan 730 provide exposure feedback to the wearer based on the Source metric, and the Action and Limit levels you set. The lights display a range of yellow (action) to red (limit).
  • Page 14 1.2.6 LCD Color Display The Spartan 730 has a full color, front-lit LCD suited for indoor or outdoor visibility. When you power the dosimeter on, you’re prompted to press select to open the Menu, or press the up or down button to dismiss the tip.
  • Page 15 1.2.7 Screen Details On the Spartan 730 Dosimeter Dosimeter 1–4 Screen Detail The Spartan 730 dosimeter configuration settings are displayed on the first 4 screens of the LCD. The LCD displays the current measurement data in terms of your chosen configuration for Dosimeter 1.
  • Page 16 Subsequent pages show OBA data in table format. The OBA Screen and associated features display when you purchase and install option 730-OB1. Table 1.1 Screens On the Spartan 730 Dosimeter Click here to return to Meter Screen Detail The Meter screen displays the following information on 3 pages: Meter–Time Page 1...
  • Page 17 • Total Memory, available for storage • the current internal device Temperature Table 1.1 Screens On the Spartan 730 Dosimeter Click here to return to SLM Screen Detail The SLM screen displays the following sound level meter metrics on 10 pages.
  • Page 18 Press down to view additional pages on the SLM Screen. SLM–Sound Exposure, Page 7 • Displays the Sound Exposure metric in dB and in Pascal- squared hours • • • E,8h • E,40h Spartan 730/730IS Dosimeter Manual Getting to Know Your Spartan 730 Noise Dosimeter...
  • Page 19 • Slow (Smx), Fast (Fmx), Impulse (Imx), linear time (Leq), and peak time weightings (LPk) for the overall measurement. Table 1.1 Screens On the Spartan 730 Dosimeter Click here to return to Spartan 730/730IS Dosimeter Manual Getting to Know Your Spartan 730 Noise Dosimeter...
  • Page 20 1.2.9 Measurement Configurations The Spartan 730 dosimeter can calculate noise exposure using to up to 4 configurations at a time. This is accomplished using the Dosimeter 1, 2, 3, and 4 settings menu from the meter. For more information, see section 3.1 "Defining a Measurement Configuration"...
  • Page 21 Reference Manual. 1.2.10 Care and Cleaning The Spartan 730 can be cleaned using a damp cloth. To sanitize, wipe the device with 70-percent isopropyl alcohol or a disinfecting wipe. Do not use bleach. For soft surfaces—such as the windscreen and foam in the carry case—spray with a non-bleach disinfectant spray and allow it...

  • Page 22: Getting Started

    2.1 Installing G4 4 LD Utility (G4) software enhances the features, flexibility, and ease- of-use of Larson Davis instruments. Use it to set up, calibrate, and remotely operate the Spartan dosimeter. Additionally, you can use G4 to download, chart, and analyze measurement data files, print and share a custom report, and export data to third-party software for post- processing and analysis.

  • Page 23: Installing Ld Atlas App For Mobile Devices

    Start Menu. 2.1.2 Installing G4 from the LD USB Drive Step 1. Insert the included Larson Davis USB drive into a USB port in your PC. Step 2. Launch the Windows Explorer, and open the USB Drive (Removable Disk).
  • Page 24 2.3.2 Charging by Using a USB Cable • 2.3.1 Wireless Charging The Spartan 730 is built with a convenient wireless charging capability. Charge the meter using any of the following wireless methods. If you’re using the Model 730IS (Intrinsic Safe model), you must read Appendix C "...

  • Page 25: Connecting To Your Dosimeter In G4

    Install the G4 LD Utility. For help doing this, see 2.1 Installing • Charge your dosimeter and power it on. For more information, see 2.3 Charging the Spartan 730. A Bluetooth® connection is established when this feature is enabled on TAKE NOTE...
  • Page 26 Win 7 Users: You must insert the included LD Bluetooth Dongle (DVX016) into an available USB slot to communicate with the Spartan 730. Win 10 users: For more information about enabling Windows BT, click the Start Menu and search for Bluetooth.
  • Page 27 2.3 Charging the Spartan 730. Connect to the 730 Dosimeter using your mobile device’s Bluetooth radio. Because the Spartan 730 uses a Bluetooth Low Energy (BLE) connection, there is no need to pair. Step 1. On your mobile device, enable the Bluetooth feature.

  • Page 28: Upgrading Dosimeter Firmware Or Options

    • 2.6.3 Factory Calibration Service • 2.6.4 Larson Davis Calibrator and Accessories 2.6.1 Calibrating Your Spartan Dosimeter Your Spartan 730 dosimeter begins auto-calibrating when attached to a LEARN MORE Refer to the calibrator’s operating instruction for CAL150 or CAL200 calibrator.
  • Page 29 Step 4. When Accept Cal? appears on the dosimeter display, press SELECT to accept. To reject the calibration, press , remove the DOWN calibrator, and repeat from step 2. Step 5. Replace the windscreen on the microphone. Recommended Next Step: • Section 4 Making a Measurement Spartan 730/730IS Dosimeter Manual...
  • Page 30 2.6.2 About Calibration Histories, Instrument Overload, and Calibration Stability Calibration Histories Calibrating your Spartan 730 helps you determine the true sensitivity of your dosimeter—including all effects from the microphone, preamplifier, and dosimeter. It also establishes a numeric relationship between the sound pressure level at the diaphragm of the microphone and the voltage of the meter.
  • Page 31 We can also schedule the recertification service based on other requirements. To schedule service, see the back cover of this manual. 2.6.4 Larson Davis Calibrator and Accessories The Spartan 730 dosimeter accommodates the following calibrators with a 1/4-inch adapter (ADP109). FIGURE 2-5 Larson Davis Model CAL150 or CAL200...
  • Page 32 The Spartan 730 dosimeter automatically keeps an internal history of all calibrations. This calibration history is permanently retained unless a format and restore to factory defaults is needed.

  • Page 33: Setting A Measurement Configuration

    3.2 Defining Exceedance Triggers ..............35 3.2.1 Setting Exceedance Trigger Levels On the Dosimeter 3.2.2 Customizing Exceedance Trigger Settings 3.3 Setting a Visual Alarm on the Spartan 730 ..........38 3.3.1 Enabling Dosimeter 1 Alarm 1 3.3.2 Selecting Alarm Options 3.4 Setting a Measurement Timer ..............
  • Page 34 The Spartan 730 enables you to select a standardized measurement configuration, or one based on your own custom requirements. The settings you choose in this section determine the information available to you in the resulting data. To better understand which configurations will produce the measurement data you need, you may want to review Section 5 Working With Dosimeter Data Files.
  • Page 35 Step 6. If you want to enable additional virtual dosimeters, do the following: Enabling or Disabling Dosimeter 2, 3, or 4 a. From the Settings menu, highlight, then Dosimeter 2. SELECT This opens the Dosimeter 2 menu. Spartan 730/730IS Dosimeter Manual Defining a Measurement Configuration...
  • Page 36 Time History is defined with a 1 second or 1 minute period. With this setting, exposure levels are recorded in terms of a table of metrics tracked every second (or minute, respectively). Spartan 730/730IS Dosimeter Manual Defining a Measurement Configuration...
  • Page 37 About the Octave Band Analysis Option (730-OB1) The Octave Band Analysis (OBA) feature on your Spartan 730 allows you to analyze the measured noise exposure in full octaves. Industrial Hygiene professionals sometimes use octave band analysis when measuring personal noise exposure. Octave bands allows you to see the frequency composition of a sound.

  • Page 38: Defining Exceedance Triggers

    An exceedance occurs when the measured sound level rises above one or more of the user-defined trigger levels. For the Spartan 730, there are two threshold levels (SPL 1 and SPL 2), and three peak trigger levels (Peak1, Peak2, and Peak3). The process of setting these exceedance levels is explained in section 3.2.1.
  • Page 39 Setting the Frequency Weighting In this section, use on the dosimeter to DOWN highlight an option. Use to set the option. Quick SELECT press to step up one level in a menu. POWER Spartan 730/730IS Dosimeter Manual Defining Exceedance Triggers...
  • Page 40 DOWN SELECT selection and return to the Detectors and Weighting menu. Available options include C-Weight, Z-Weight, and A-Weight. Step 6. Press and hold to exit all menus. POWER Spartan 730/730IS Dosimeter Manual Defining Exceedance Triggers...

  • Page 41: Setting A Visual Alarm On The Spartan 730

    POWER 3.3 Setting a Visual Alarm on the Spartan 730 The Spartan 730’s visual alarm settings enable you and the worker to be aware of milestones within the current noise exposure period. The Dosimeter 1 setting comes with 2 customizable visual alarm settings: Alarm 1, Alarm 2, which can be enabled separately, as shown in section 3.3.1 Enabling Dosimeter 1 Alarm 1.
  • Page 42 Settings to enter the Settings menu. SELECT Step 3. Highlight, then Dosimeter 1. This opens the Dosimeter 1 menu. SELECT Step 4. Highlight, then Alarm 1. This opens the Alarm 1 menu. SELECT Spartan 730/730IS Dosimeter Manual Setting a Visual Alarm on the Spartan 730...
  • Page 43 Alarm 1 menu. The Alarm 1 Source setting includes the following options: Proj Dose Dose Proj TWA Proj LEPD LEPD LAeq LAvg LCpeak LZpeak Spartan 730/730IS Dosimeter Manual Setting a Visual Alarm on the Spartan 730...
  • Page 44 LED alarm lights. Enabling or Disabling LED Alarm Lights When enabled, the LED alarm lights on the Spartan 730 provide exposure feedback to the wearer based on the Source metric, and the Action and Limit levels you set. The LED is yellow when the exposure level is between the action and limit levels, and red when the exposure is equal to or above the limit level.

  • Page 45: Setting A Measurement Timer

    Mode from the list. This opens the Timer Mode SELECT screen. Step 5. From the Timer Mode screen, highlight, then Timed Stop. This SELECT returns you to the Timers menu. Step 6. From the Timers menu, highlight, then Duration. SELECT Spartan 730/730IS Dosimeter Manual Setting a Measurement Timer...
  • Page 46 3.4.2 Setting a Daily Timer Measurements The Spartan 730 enables you to set one or more time periods per day (daily timers) during which the dosimeter automatically powers on, takes a scheduled measurement, saves the file, and powers off. You can schedule up to 3 daily noise measurements using the Daily Timer.
  • Page 47 , and DOWN SELECT Timers menu. c. Repeat steps 9–12 to set the Start Time and Stop Time for this timer. d. To enable Timer 3, repeat this Setting Timer 2 section. Spartan 730/730IS Dosimeter Manual Setting a Measurement Timer...

  • Page 48: Setting The Measurement Configuration In G4

    For more information, open G4 and go to   Help Manuals G4 LD Utility  Manual 10.1 Creating a Measurement Configuration File in G4. Spartan 730/730IS Dosimeter Manual Setting the Measurement Configuration in G4...

  • Page 49: Making A Measurement

    SELECT Step 1. Press and hold the button to enter the Menu. SELECT Step 2. Highlight, then Run. The measurement begins. SELECT Recommended Next Step: • 4.3 Deploying the Dosimeter Spartan 730/730IS Dosimeter Manual Making a Measurement...
  • Page 50 DOWN option. Use to set the option. SELECT Step 1. With a measurement in progress, press and hold to enter the SELECT Menu. Step 2. Highlight, then Stop. The measurement ends. SELECT Spartan 730/730IS Dosimeter Manual Making a Measurement...

  • Page 51: Best Practices For Measuring Noise Exposure

    4.1.3 Making a Measurement in Locked Run Mode The Spartan 730 dosimeter enables you to lock the dosimeter display. This prevents the wearer from accidentally or incidentally tampering with measurement data. When the dosimeter is locked, use the LD Atlas app or G4 to unlock it.
  • Page 52 Using a Timed Stop A timed stop takes a measurement for the duration you set. You can set a timed stop on the Spartan 730, in the LD Atlas app, or in the G4 LD Utility. To set a timed stop on the dosimeter, see section 3.4.1 "Setting a Timed Stop Measurement Timer"...
  • Page 53 Motion and “bump” events display in column K–L in the Time History table. In the LD Atlas app or G4, you can view the Time History after downloading and opening a measurement’s data file. Spartan 730/730IS Dosimeter Manual Best Practices for Measuring Noise Exposure...

  • Page 54: Deploying The Dosimeter

    If the worker moves to one or more areas during the noise exposure, it may be helpful to suggest that they stand with the dosimeter closest to the noise source. Spartan 730/730IS Dosimeter Manual Deploying the Dosimeter...
  • Page 55 When your measurement is complete, you’re ready to download and interact with the data files using the LD Atlas app or G4. Recommended Next Step: Section 5 Working With Dosimeter Data Files Spartan 730/730IS Dosimeter Manual Deploying the Dosimeter...

  • Page 56: Working With Dosimeter Data Files

    5.1.3 Downloading Files from a Dosimeter Exception • 5.1.4 Downloading Data Files Manually The Spartan 730 dosimeter’s helpful auto-download feature is enabled by default when you use G4. After the measurement, bring the dosimeter within Bluetooth range (or connect using the included USB cable) and your files automatically begin downloading.
  • Page 57 Step 1. In G4, go to Tools Options. This opens the G4 Options window. Step 2. Select the Auto-Download tab, then click the checkbox in-line with Automatically download from all Spartan dosimeters not listed below. Spartan 730/730IS Dosimeter Manual Downloading Data Files in G4...
  • Page 58 • 5.3 "Viewing Measurement Results in G4" on page 57 5.1.4 Downloading Data Files Manually The Spartan 730 comes with a helpful auto-download feature enabled. When enabled, measurement data files begin downloading when the meter comes within Bluetooth range of your PC.
  • Page 59 To cancel the download in progress, click the cancel download icon Step 4. When the file is downloaded, double-click again to open it. The file opens in a new tab on the Data view. Spartan 730/730IS Dosimeter Manual Downloading Data Files in G4...

  • Page 60: Merging Data Files In G4

    Help Manuals G4 LD Utility 10.6 Viewing Measurement Results in G4. 5.3.1 Using the Graph View In G4, download and open the data file, then choose the Graph view. Spartan 730/730IS Dosimeter Manual Merging Data Files in G4...

  • Page 61: Creating A Report

    G4 go to Help Manuals G4 LD Utility 4.8 Accessing Audio Files in G4. 5.4 Creating a Report For more information about this feature, in G4 go to Help Manuals G4 LD Utility Manual 10.6.4 Creating a Report. Spartan 730/730IS Dosimeter Manual Creating a Report...

  • Page 62: Additional Dosimeter Settings

    Part 2: Disabling Event Sound Recording Setting Options for Event Recording Part 1: This section reviews how to set the event sound recording options, which include the following values: Trigger Source, Trigger Level, and Minimum Interval. Spartan 730/730IS Dosimeter Manual Setting Event Sound Recording Options...
  • Page 63 Minimum Interval is the number of seconds between event recordings. The default setting is 30 seconds. Set a longer Min Interval to minimize the number of recorded events and conserve dosimeter memory. Spartan 730/730IS Dosimeter Manual Setting Event Sound Recording Options...
  • Page 64 Step 5. On the Enable screen, press to toggle between Enabled and DOWN Disabled. Step 6. Highlight Enabled, then press to set this option and return to the SELECT Evt Sound Rec menu. Spartan 730/730IS Dosimeter Manual Setting Event Sound Recording Options...

  • Page 65: About The Dosimeter Noise Level

    Among other things, it is used to compute the meter’s Under-Range level. 6.3 Customizing the Dosimeter Name The default name of each dosimeter is “Spartan 730” + the meter’s serial number. This section reviews how to change this to a custom name.

  • Page 66: Setting Date And Time Manually On The Meter

    Repeat steps a–b to set the day (dd) and return to the Meter Quick press TAKE NOTE POWER to step back to the left at menu. any time. Spartan 730/730IS Dosimeter Manual Setting Date and Time Manually On the Meter...

  • Page 67: Setting Localization Preferences

    Step 3. From the Settings menu, highlight, then Preferences. This opens SELECT the Preferences menu. Step 4. Press to highlight an available option, then press to set DOWN SELECT your selection and return to the Preferences menu. Spartan 730/730IS Dosimeter Manual Setting Localization Preferences...

  • Page 68: Disabling Or Enabling Auto Shut-Off

    POWER 6.6 Disabling or Enabling Auto Shut-Off With the Auto Shut-off setting enabled, when the Spartan 730 is not taking a measurement and is inactive for 30 minutes, it powers off. The meter remains active with a Bluetooth connection to the LD Atlas app or G4, or any button press.
  • Page 69 Enabled and DOWN Disabled. Step 6. Highlight Enabled, then press to set this option and return to the SELECT Preferences menu. Step 7. Quick press to exit all menus. POWER Spartan 730/730IS Dosimeter Manual Disabling or Enabling Auto Shut-Off...

  • Page 70: Appendix A Technical Specifications

    A.2 Noise Dosimeter Standards Compliance Testing ....A-13 Standards Met Compliance Testing Notes ANSI S1.25 Compliance FCC/IC Compliance IEC 61252 Compliance A.1 Instrument Specifications A.1.1 Physical Specifications Microphone & Input Model 375A03: 1/4-inch, free-field, prepolarized condenser microphone Supplied Microphone Spartan 730/730IS Dosimeter Manual...
  • Page 71 20 Hz to 5 kHz (±2 dB) Typical Sensitivity >5 kHz to 8 kHz (±3 dB) >8 kHz to 12.5 kHz (+3 / -∞ dB) A-Weight Random Incidence Frequency Response- Supplied Microphone C-Weight Random Incidence Frequency Response- Supplied Microphone Spartan 730/730IS Dosimeter Manual...
  • Page 72 Bluetooth Low Energy Interface BLE 4.1 Type 30 mW viewing/downloading data Power Use 22k B/s (typical) Throughput Android and iOS devices using LD Atlas app Supported Hosts PC with Microsoft Windows 7 or newer using G4 LD Utility software Spartan 730/730IS Dosimeter Manual...
  • Page 73 Powered by computer or (PSA029) power adapter Using USB Client Connector 5.0 ±0.5 V, 5.5 V absolute maximum (Um = 5.5V) Qi® WPC-compatible charge pad (PSA042) Using Wireless Charger 5.0 ±0.5 V, 5.5 V absolute maximum input voltage Spartan 730/730IS Dosimeter Manual...
  • Page 74 All specs include clips and windscreen 206 x 54 x 44 mm 8.11 x 2.13 x 1.73 in Dimensions 112 g 4.2 oz Weight IP65 Ingress Protection Rating Physical Characteristics-Model 730-IS metric All specs include clips and windscreen Spartan 730/730IS Dosimeter Manual...
  • Page 75 A-, C-, or Z-weighted Peak Frequency Weightings ≤45 µs Peak Rise Time 32 k sps Sample Rate A.1.3 SLM Specifications SLM Live View Metrics Units Linear Aeq(1s) Ceq(1s) Zeq(1s) Slow Fast Impulse Peak Apeak, 1s Cpeak, 1s Zpeak, 1s Spartan 730/730IS Dosimeter Manual...
  • Page 76 Ceq - equivalent levels Exceedance Metrics Exceedance trigger levels (SPL1 and SPL2) selectable in dB from 40.0 to 140.0, and Peak Exceedance levels (Peak1–3) selectable in dB from 80.0 to 143.0, counts each time the level rises Spartan 730/730IS Dosimeter Manual...
  • Page 77 Maximum Exposure (limit 140 dB for 200 hours) 7.90E+06 Minimum Exposure (limit 50 dB for 1 second) 7.90E-03 Measurement Control Multiple control and timer modes provide for the following manual and automated measurements: • Manual: Manually control measurements using Run, Stop, and Pause. Spartan 730/730IS Dosimeter Manual...
  • Page 78 Noise Dose Percentage, Criterion Level and Time set 100% exposure limit ProjDose Projected Noise Dose Percentage, Criterion Level set 100% exposure limit TWA(8) Time Weighted Average for Criterion Time of 8 hours with Threshold P. TWA(8) Projected Time Weighted Average with Threshold Spartan 730/730IS Dosimeter Manual...
  • Page 79 100 (% or dB) Limit Level A.1.5 OBA Specifications The following specifications apply to the Spartan 730/730-IS dosimeter option 730-OB1, which is available for purchase from Larson Davis. IEC 61260-1:2014/Part 1, 1/1 Octave Bands, Class 1, Group X, all filters...
  • Page 80 Instantaneous “Live” Metrics Ƭ) To calculate OBA Min and Max values, time weighting (noted by follows the Exceedance Detector setting (Slow, Fast, Impulse). Overall Metrics A.1.6 Time History Specifications 1 sec, 1 min Period Spartan 730/730IS Dosimeter Manual A-11...
  • Page 81 Time Stamp Time History Metrics Overload, Motion, Bump, Run, Stop, Pause Other Indicators A.1.7 Event Sound Recording Specifications The following specifications apply to the Spartan 730 dosimeter option 730-ESR. 16-bit WAV File Format 8000 sps Sample Rate 2 second pretrigger...
  • Page 82 Other Standards: Test Results and Certificates RoHS/IC/FCC compliant with ISO 17025 FIGURE A-1 BLE Module Markings 210-106799 Contains ANATEL approved module #03154-18-11156 Este equipo contiene el módulo con IFT #: NYCE/CT/0146/17/TS R-CRM-Rgd-BMD-300 Model 730IS Only Spartan 730/730IS Dosimeter Manual A-13...
  • Page 83 Operating the Spartan 730 in proximity to a source of electromagnetic radiation equal to 10 V/m may cause up to ± 1.5 dB variation on the sound exposure level reading. The Spartan 730 meets all of the standards of section 15 in IEC 61252 (2017) at a sound level of 85 dB.
  • Page 84 The Spartan 730 dosimeter complies with ANSI S1.25-2007 as specified below. Class 2 with variable A or C frequency weighting, variable for F or S time constant, Class Designation variable Criterion Level, Threshold, and Exchange Rate. Overload is indicated when the upper limit has been exceeded and held for 4 Upper Limit Indicator seconds.
  • Page 85 A.2.5 IEC 61252 Compliance The following compliance is provided for the Larson Davis Spartan 730 dosimeter according to IEC 61252 Ed. 1.2. See Table A-1 on page A-17. Spartan 730/730IS Dosimeter Manual A-16...
  • Page 86 14.l Ω connected to the ADP106 shall be 600 or less. The mode of operation of the Spartan 730 that Free-field relative frequency response available produces the greatest radio frequency emission 14.m 14.bb on request...

  • Page 87: Appendix B Glossary

    Glossary Appendix B This glossary contains technical definitions of key acoustical and vibration terms commonly used with Larson Davis instruments. If you need additional information, please refer to the American National Standards Institute document S1.1-1994 (R2004) for additional definitions. Specific use of the terms defined are in the main body of this manual.
  • Page 88 The decibel is a simplified way of representing a large span of signal levels, and sometimes very large numbers, as opposed to using the Pascal. For example: Power Ratio Amplitude Ratio 100 000 316.2 ≈ 4 ≈ 2 1.995 1.995 0.000 01 0.003 162 Spartan 730/730IS Dosimeter Manual...
  • Page 89 The level of a constant sound over a specific time period that has the same sound energy as the actual (unsteady) sound over the same period. In the equation below, p is the sound pressure and the Measurement Duration (specific time period) T=T2-T1. See also "Sound Pressure Level (SPL, Lp)". Spartan 730/730IS Dosimeter Manual...
  • Page 90 (A or C). For example, on the dosimeters, L signifies the A weighted, SLOW exponential-time weighted sound level. Similarly, denotes the C weighted, FAST level. Frequency Weighting See also "Frequency and Exponential Time-Weighted Sound Level". Spartan 730/730IS Dosimeter Manual...
  • Page 91 (2) ≈ 16.61 = Criterion Level in dB If exchange rate = 6, q = 20 OSHA Level (LOSHA) The Average Sound Level calculated in accordance with the Occupational Safety and Health Administration Exchange Rate and Threshold Level. Spartan 730/730IS Dosimeter Manual...
  • Page 92 • If exchange rate = 5, q = 5 / log (2) ≈ 16.61 = Criterion Level in dB • If exchange rate = 6, q = 20 T = measurement period or Run Time (T = T – T Spartan 730/730IS Dosimeter Manual...
  • Page 93 20 Micro-pascals ( Pa). The fundamental relationship between sound pressure level and sound pressure is shown in the equations below, where p is the reference sound pressure of 20 µPa. Spartan 730/730IS Dosimeter Manual...
  • Page 94 Air (wind) blowing across the microphone generates pressure fluctuation and vibration on the microphone diaphragm. Thus, your noise exposure reading would include wind noise, an undesirable component. To achieve the best result with the Spartan 730 dosimeter, we recommended using the provided WS012 windscreen. Spartan 730/730IS Dosimeter Manual...

  • Page 95: Appendix C Spartan 730Is Safety Information

    Class I, Division 1, Groups A, B, C & D, T165 ºC UL 61010-1: Edition 3 + R:29Apr2016 Cert to CAN/CSA Std C22.2 CAN/CSA C22.2 No. 61010-1-2012 + U1 Ex ia IIC T165 ºC Ga -10 ºC ≤ TAMB ≤ +50 ºC Spartan 730/730IS Dosimeter Manual...
  • Page 96 Do not attempt to open or repair the device. Improper repair or opening can lead to the destruction of the device, fire, or explosion. Only authorized personnel are prepared to repair the device. See the back cover of this manual to contact Larson Davis for service or repairs. •...
  • Page 97 We highly recommended that you return a device that shows signs of faults or damage, or is suspected of faults or damage, to Larson Davis for inspection. Contact information is located on the back cover of this manual.
  • Page 98 C.3 Intrinsic Safety Ratings and Information FIGURE C-2 I730.01-IS-SD Spartan 730/730IS Dosimeter Manual...
