Troubleshooting the Test Set

Source Signal Path Insertion Loss Test

Connect the RF Flex cables to the Test Port and Source Out port indicated
in Table 20, the expected results should be similar to Figure 65.
Table 20 Source Signal Path Test Instructions
Path #

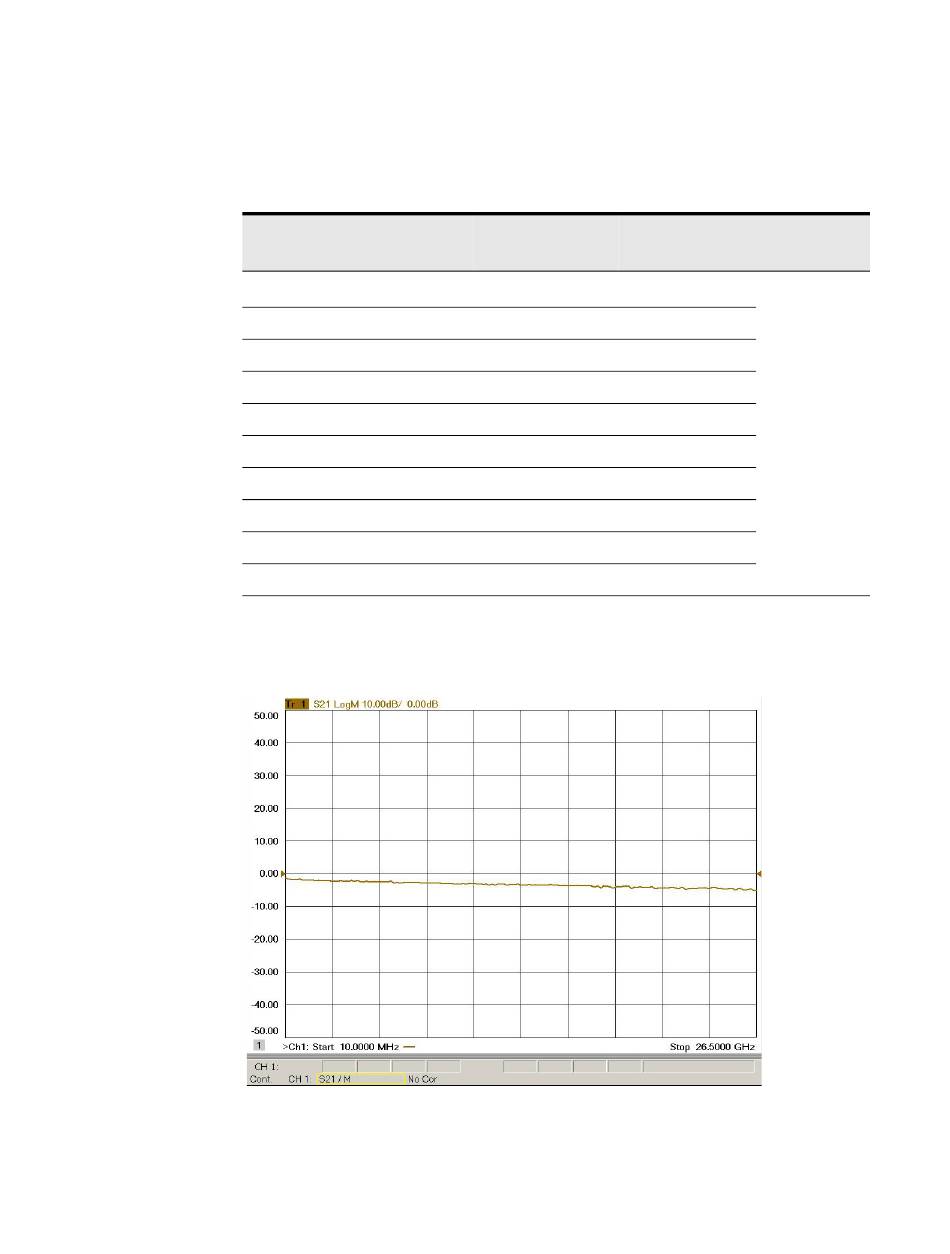

Figure 65 Source Out to Ports 3-12 Path Response
82
RF Path
Description
1
Source Out to Port 3
2 Source Out to Port 5
3 Source Out to Port 7
4 Source Out to Port 9
5 Source Out to Port 11
6 Source Out to Port 4
7 Source Out to Port 6
8 Source Out to Port 8
9 Source Out to Port 10
10 Source Out to Port 12
a. Use the Source Out port (on the left) associated with the odd test ports.
Control Mode Path
<Address>.<Data> Components
0.1 P3 CPLR, S10
a
0.2 P5 CPLR, S10
0.3 P7 CPLR, S10
0.4 P9 CPLR, S10
0.5 P11 CPLR, S10
16.1 P4 CPLR, S20
16.2 P6 CPLR, S20
16.3 P8 CPLR, S20
16.4 P10 CPLR, S20
16.5 P12 CPLR, S20
Keysight U3022AE10 User's and Service Guide
Insertion Loss
(typical)
Figure 65
