U3022AE10
Front and Rear Panel Features

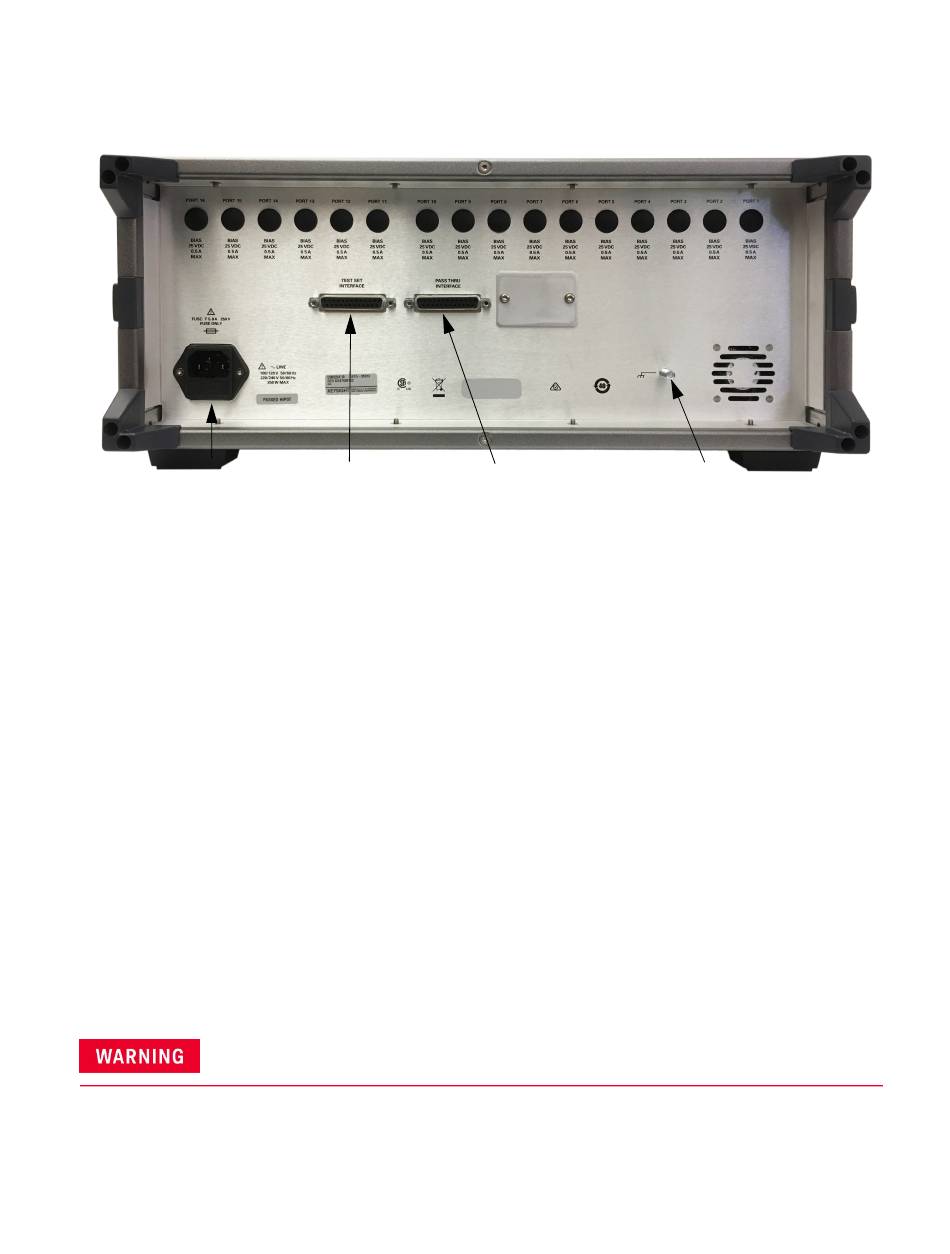

Figure 5
U3022AE10 Rear Panel
Line Module
Chassis Ground
A threaded terminal post for connecting the test set to a conductive object, cabinet
or structure to ensure a common potential and reduce leakage current in a system.
Requires an English 1/4-20 thread nut (2950-0004) and lock washer (2190-0067).
Pass Through
Connection to another test set.
Interface
Test Set Interface
The Test Set I/O connector is used to send address and data to the test set from the
network analyzer.
Line Mod ule
This assembly houses the line cord connection, line fuse, and line voltage selector.
Remove the line module cover to replace or change the fuse. Line voltage selection is
automatic and no setting is required.
Install the instrument so that the detachable power cord is readily identifiable and is
easily reached by the operator. The detachable power cord is the instrument
disconnecting device. It disconnects the mains circuits from the mains supply before
other parts of the instrument. The front panel switch is only a standby switch and is
not a LINE switch. Alternatively, an externally installed switch or circuit breaker
(which is readily identifiable and is easily reached by the operator) may be used as a
disconnecting device.
Available Fuses
Fuse (F 5 A/250V, 2110-0709) UL listed and CSA certified
For continued protection against fire hazard replace line fuse only with same type and
rating. The use of other fuses, circuit breakers or materials is prohibited.
Keysight U3022AE10 User's and Service Guide
Test Set Interface
Pass Thru Interface
Chassis Ground
19
