U3022AE10
Cal Kit Operational Check

Cal Set Verification

1. Select Trace/Chan > Trace > Delete Trace -OR-
2. To launch the Cal Set Viewer toolbar. Select

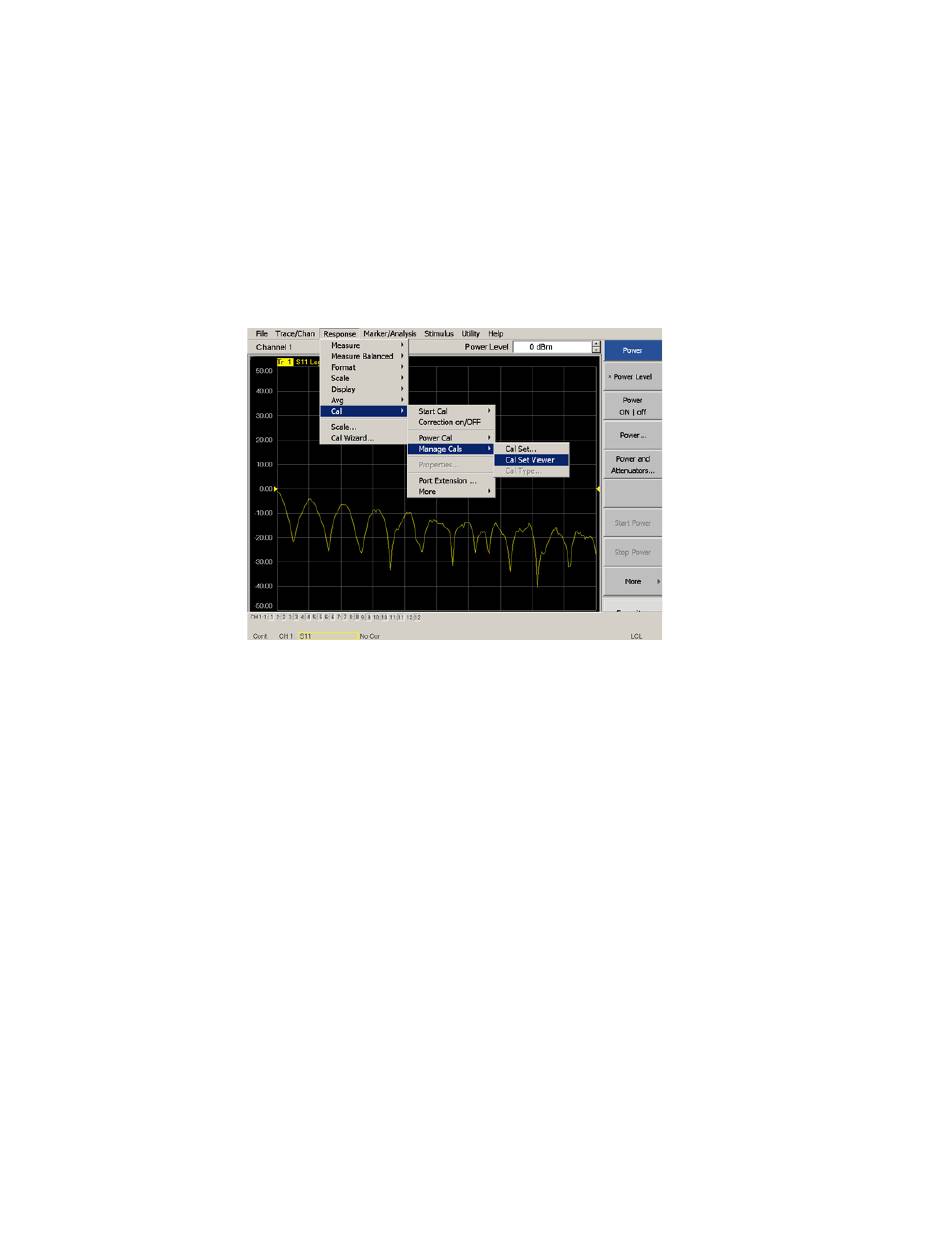

Figure 51
Calibration Cal Set Viewer
3. From the Cal Sets drop-down menu, select 999.1 and select Enable. Select the
4. Compare the Reflection Tracking (1,1) trace to the appropriate limits in
5. Repeat step 3 and step 4 for Cal Sets "999.1" thru "999.12" (12-Port).
64
(Instrument > Trace > Delete Trace). There should be no traces on the screen.
Response > Cal > Manage Cals > Cal Set Viewer -OR-
(Response > Cal > Cal Sets & Cal Kits > Cal Set Viewer [On/Off]).
Reflection Tracking(x,x), where x,x is the port being tested. Ensure that the
Enable and Error Terms check boxes are selected.
on page
61. This can be done using Markers.
Keysight U3022AE10 User's and Service Guide
Table 16
