Cal Kit Operational Check

Verifying a Cal Kit Operational Check Failure

If your test results fail the Cal Kit Operational Check Reflection Tracking limits,
see
1. Ensure that the test set is on and connected properly to the analyzer.
2. Check all appropriate connectors for damage, cleanliness, and proper torques.
3. Repeat the relevant 1-Port calibrations using another ECal or mechanical
4. Verify that the PNA is operating properly and meeting its published specifications.

ECal Confidence Check

The following ECal Confidence Check is a method to verify the accuracy of a 1-Port
calibration performed with mechanical standards or an ECal module. To perform this
check, the test port of the ECal module must connect directly to the Test Port being
verified (without adapters).
1. Perform a 1-Port Cal of the test set port being tested.
2. Connect the ECal Module to the Port being tested. Terminate any remaining ports
3. Select the Cal Set to be verified. Select
4. Select [Response] > Cal > More > ECal > ECal Confidence Check -OR-
5. Click Change Measurement and select the test port S-parameter > Apply > OK.
6. Select the ECal Module you are using, and select the ECal Mod ule Memory >

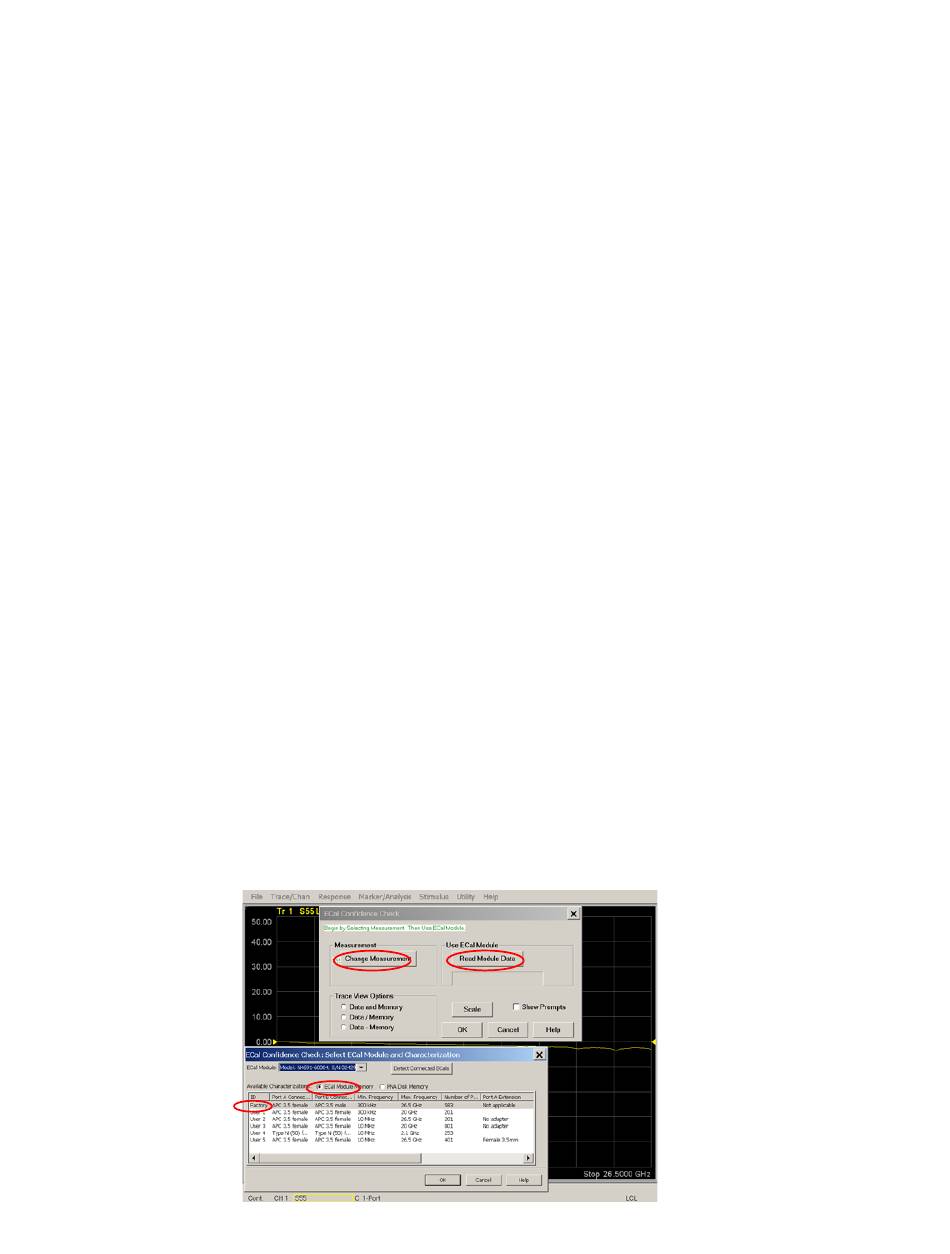

Figure 56 ECal Confidence Check
Keysight U3022AE10 User's and Service Guide
Table 6 and Table 7 on page
standard.
If the PNA is connected to the test set it will fail the Operational Check. Refer to
"Network Analyzer Requirements" on page
on the ECal Module.
[CAL] > Cal Set... > Cal_File > Apply Cal > Close -OR-
([CAL] Cal Set & Cal Kit > Cal Set... > Apply Cal). If the "Choose Stimulus
Settings" prompt appears, select Change the active channel's stimulus > OK >
Close.
(Response > Cal > ECal Confidence Check...).
Click Read Mod ule Data.
Factor > OK.
17. Verify the following:
11.
