External Voltage Supply Configuration - Keysight Technologies U3022AE10 User's And Service Manual

U3022AE10
Control Lines

External Voltage Supply Configuration

Figure 48 illustrates an example of the connection with an external DC power
supply. Connect the positive and negative voltage supply from the external power
supply to the positive input (pin 13) and the negative input (pin 14). Connect the
power supply DC ground to pin 15.
Turning on the Test Set using an External Power Supply.
1. Turn on the test set.
2. Connect the DUT.
3. Turn on the external power supply.
Turning off the Test Set using an External Power Supply.
1. Turn off the Power Supply.
2. Turn off the test set.
3. Disconnect the DUT.

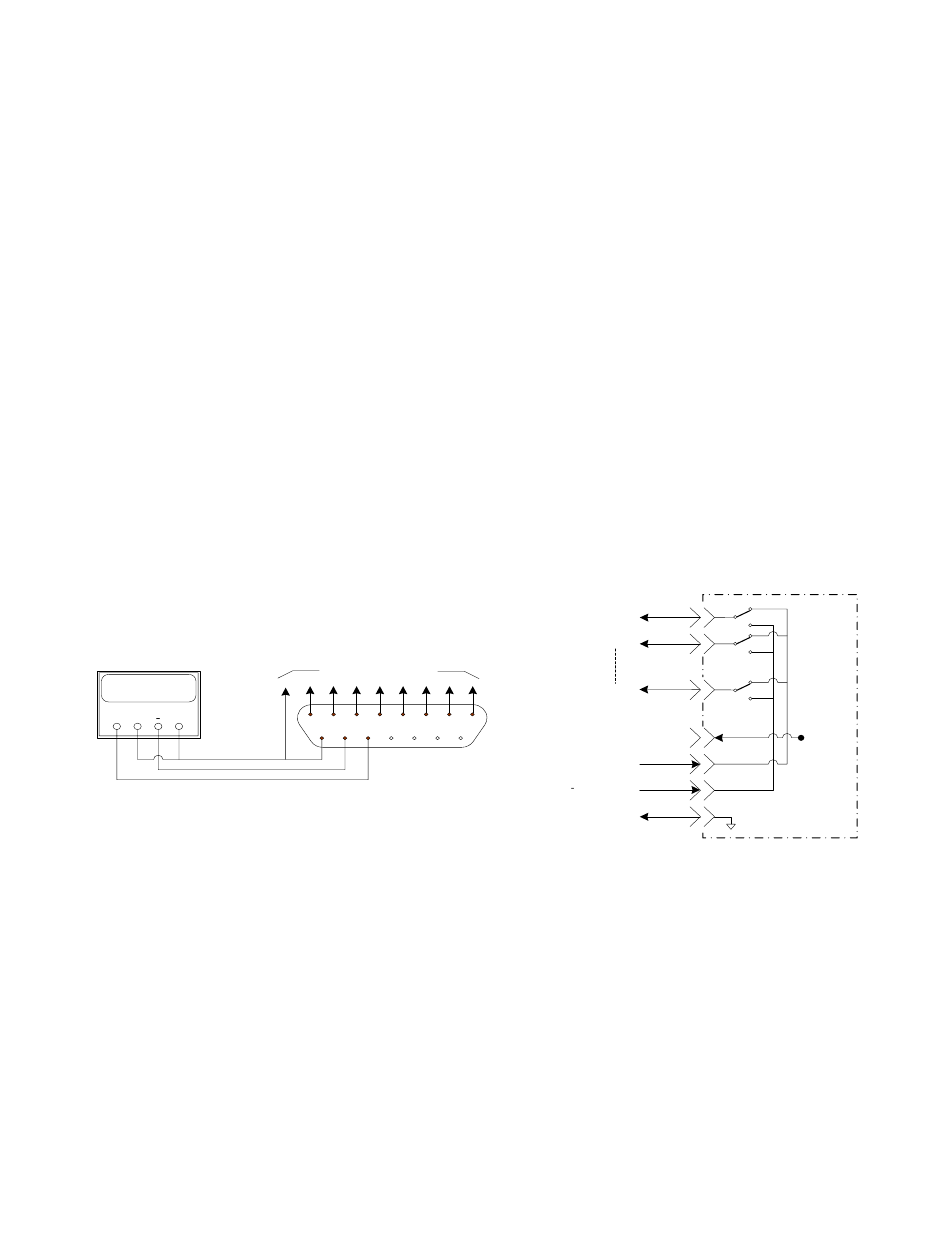

Figure 48 Test Set to the DUT and External DC Power Supply
