Hardware Lock-link Kit Installation (U3021-60002)
4. Install the two rear lock-links (5023-0132) onto the PNA or PNA-X, where the

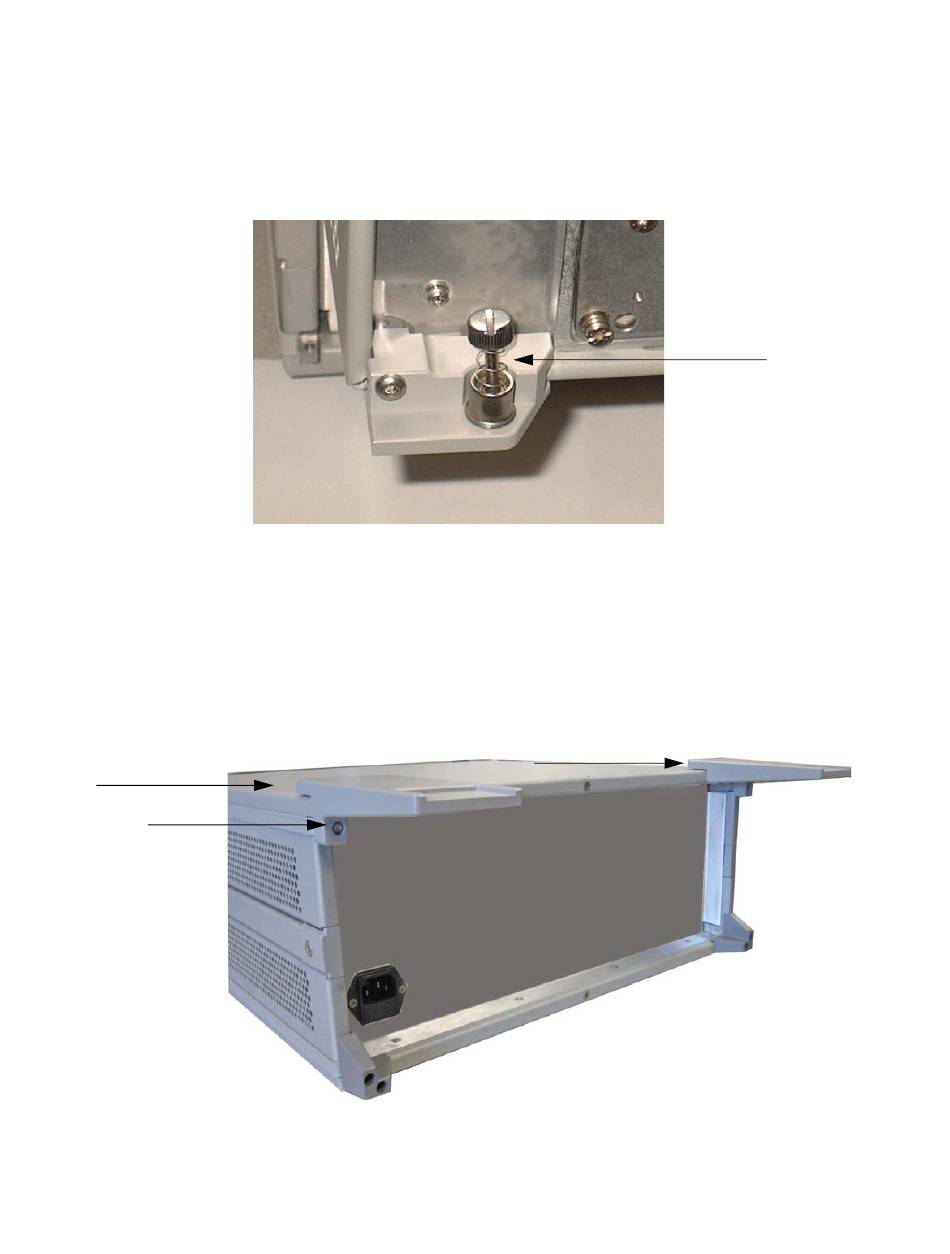

Figure 13
Install Lock-links on PNA or PNA-X
5. Remove the top two standoffs from the rear panel on the test set.
6. Install the two rear lock-links onto the Test Set. Looking at the front panel, the
Figure 14
Install Lock-links to Test Set
N5242-20138
0515-2317
Keysight U3022AE10 User's and Service Guide
standoffs were removed.
N5242-20138 is the right foot and the N5242-20139 is the left foot. Two screws
(0515-2317) are included with this option.
Lock-link
(5023-0132)
N5242-20139
