Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B

RF Path Configuration with Option 029

If the analyzer has Option 029 or H29 (noise figure capability) verify that the path
configuration is set to Default. If it is not in Default configuration, ports 5 and 9 will not
operate correctly. Select Trace/Chan > Channel > Hard ware Setup > Path Config... -OR-
(Instrument > Setup > Internal Hardware > RF Path Config...) and in the drop-down
menu select Default > OK. Save this configuration as a User Preset by selecting
Save > User Preset > Save current state as User Preset. Do not use the factory Preset
(User Preset Off); the analyzer will return to Option 029 path configuration.

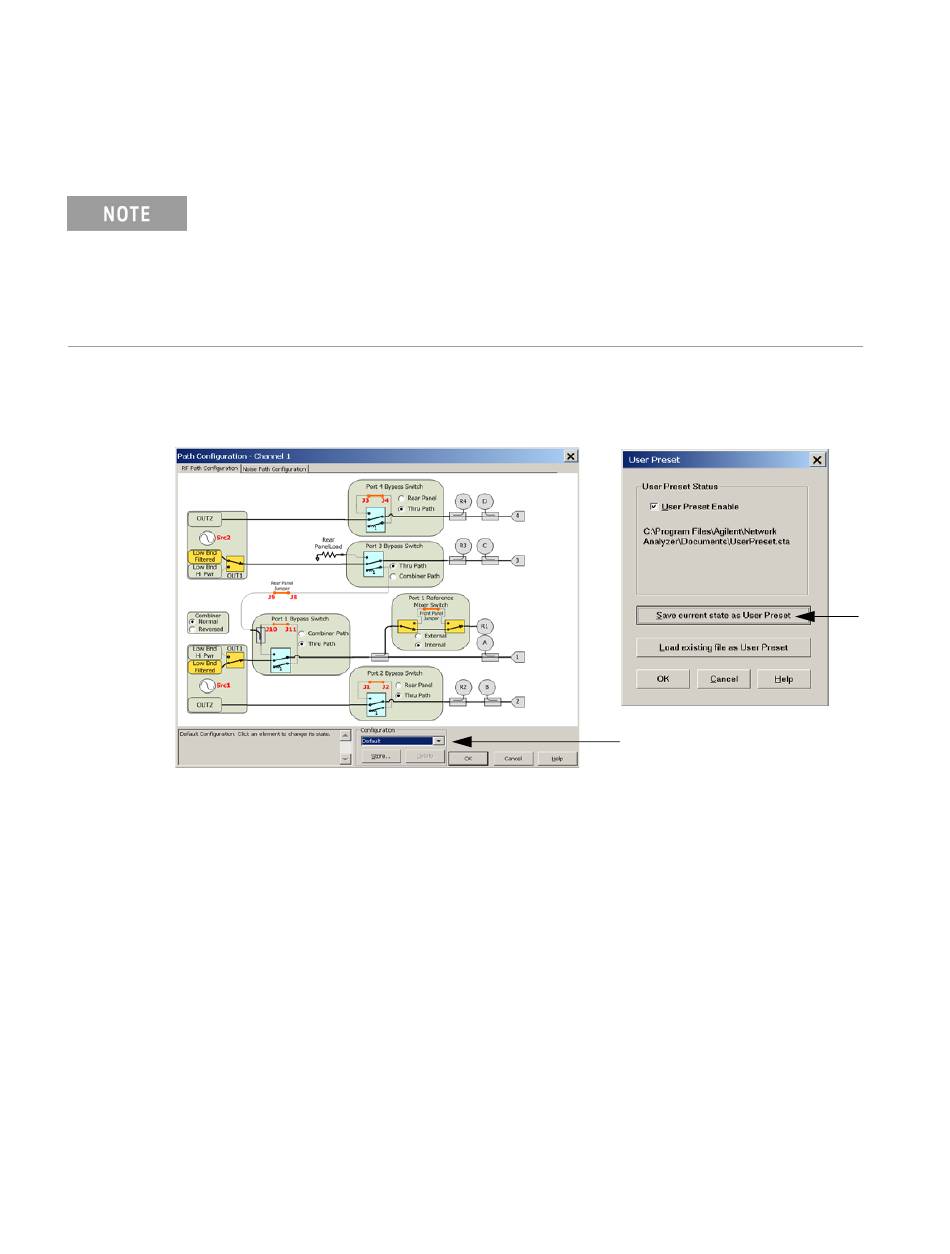

Figure 35 RF Path Configuration
42 Keysight U3022AE10 User's and Service Guide
