U3022AE10
Cal Kit Operational Check

1-Port Calibration and Verification Procedure

1. Connect the ECal or the mechanical cal kit to Port 1 or the port you are testing.
2. Perform a 1-Port Calibration on Port 1. On the analyzer, select
3. Continue following the Cal Wizard prompts. In the "Select Calibration Ports and
4. Ensure the Cal Kit you are using is indicated on the right side of the window.

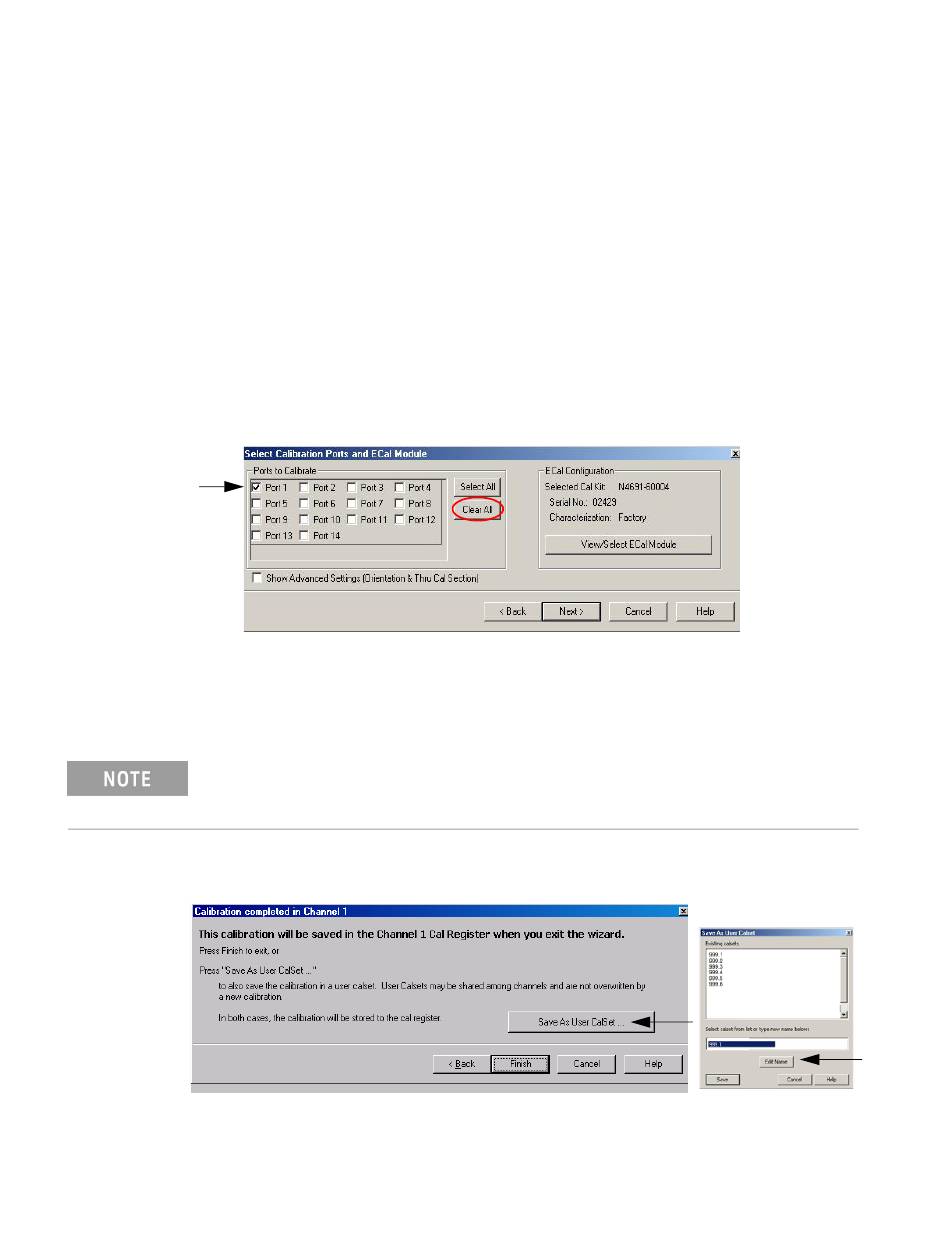

Figure 49 1-Port Calibration
5. Continue to follow the prompts until the "Calibration Completed" dialog box
6. At the Calibration Completed prompt, select Save As User Calset, type the name
If you do not have a keyboard, select Save As User Calset > Ed it Name and save as
999.x. X is the port number you are calibrating. Use the numeric keypad on the
analyzer front panel to enter "999.1."
Figure 50 Calibration Complete
7.
Keysight U3022AE10 User's and Service Guide
Torque to 8 in-lb. For further information refer to the Help menu.
Response > Cal > Start Cal > Calibration Wizard -OR-
(Response > Cal > Other Cals).
a. If using a mechanical cal kit, select SmartCal (Guided Calibration) > Next.
b. If using an ECal module, connect the ECal to an analyzer's USB port. Select
Use Electronic Calibration (ECal) > Next.
ECal Module" dialog box click Clear All, then select Port 1 > Next > Measure.
appears.
999.1. Overwrite the Calset if it already exists and Save.
Repeat step 1 thru step 6 (1-Port Calibration Procedure) for Ports 2 thru 8. When
finished, there should be 8 Cal Sets saved with the titles "999.1" thru "999.12"
(12-Port).
63
