Hardware Lock-link Kit Installation (U3021-60001)

Hard ware Lock-link Kit Installation (U3021-60001)
If your system is to be rack mounted, this installation procedure does not have to be
performed.
The opening of covers or removal of parts is likely to expose the user to dangerous
voltages. Disconnect the instrument from all voltage sources before being opened.

Locking the Test Set to the PNA-L

1. The lock-link kit (U3021-60001) includes items to mechanically interface the test
2. Remove the feet from the bottom of the analyzer.
3. Remove the 2 lower standoffs from the rear panel on the analyzer.

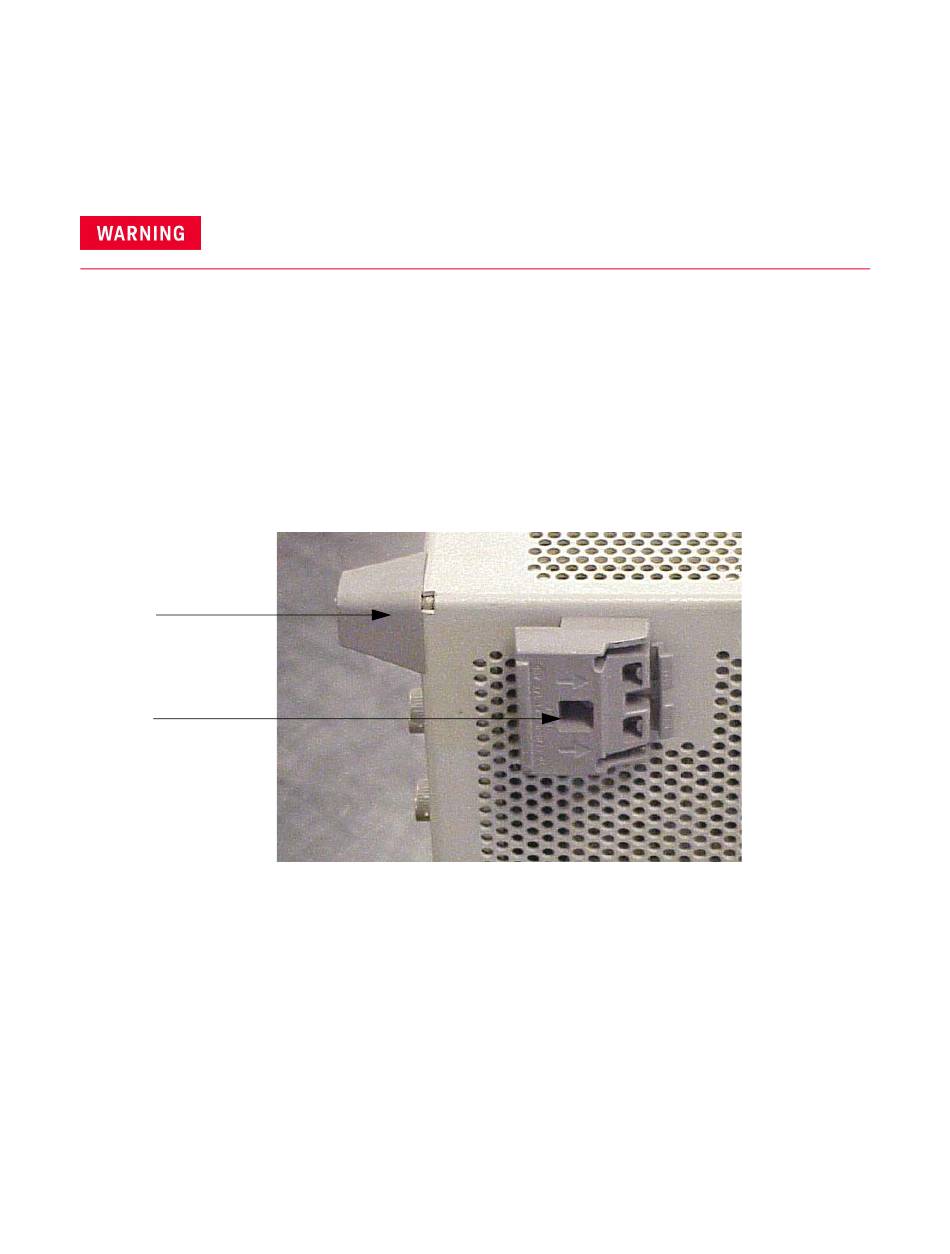

Figure 7 Rear Bottom Feet
Standoffs (x2)
Feet (x4)
Keysight U3022AE10 User's and Service Guide
set to the analyzer.
