Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B
3. On the analyzer select Response > Cal Wizard -OR-

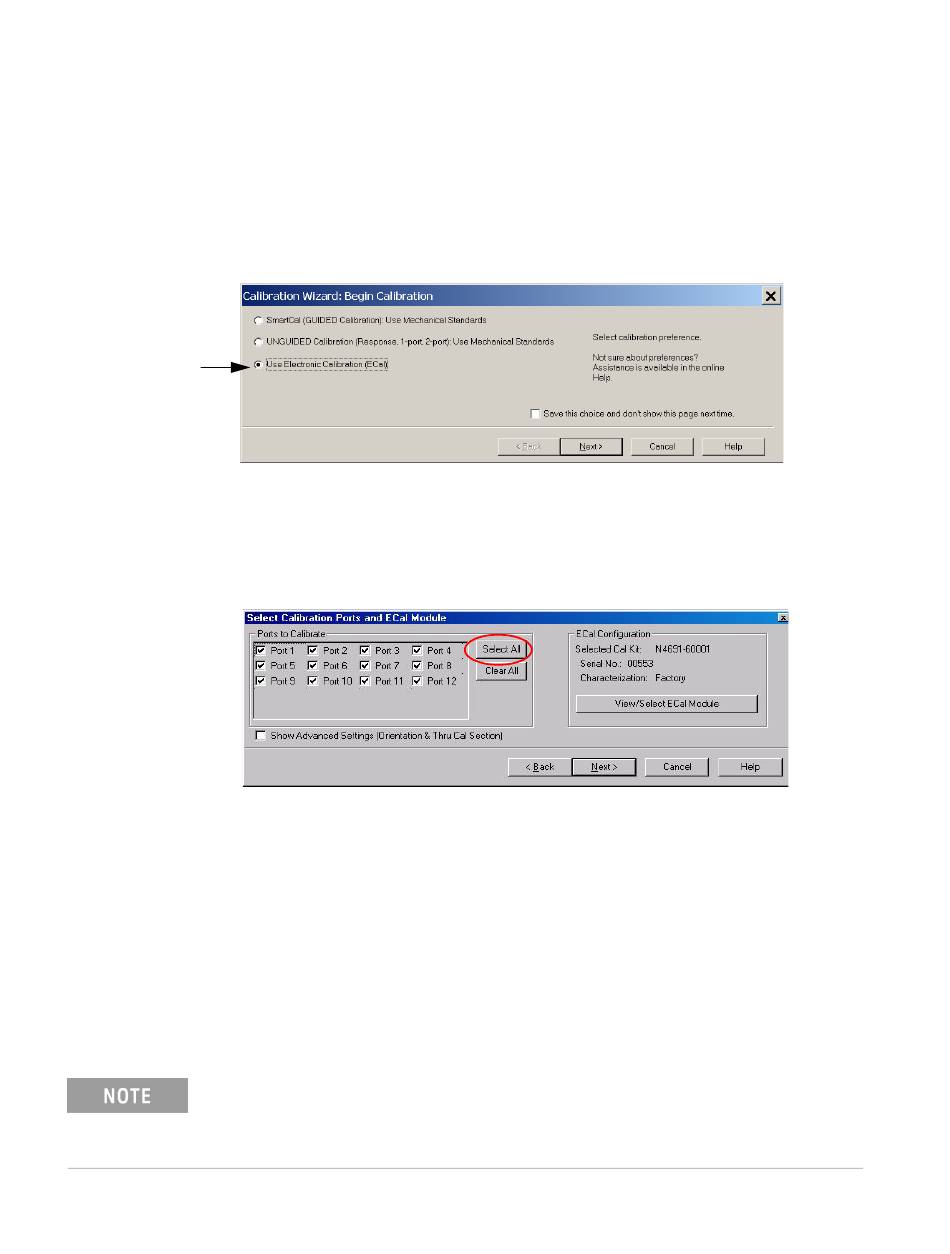

Figure 37 Begin Calibration
4. Continue following the Cal Wizard prompts. In the "Select Calibration Ports and
Figure 38 12-Port Calibration
5. Connect the ECal or the mechanical cal kit to the ports you are calibrating
6. At the Calibration Completed prompt, select Save As User Calset, type the name
7. After calibrating test set ports, use a quality load and short to verify the
If measurement errors occur, ensure the newest version of firmware is installed on
the analyzer. Measurement errors can be a result of firmware algorithms. Consult
with Keysight Service or firmware web page for the latest firmware revisions and
history at
44
(Response > Cal > Other Cals...).
a. If using a mechanical cal kit, select SmartCal (Guided Calibration) > Next.
b. If using an ECal module, connect the ECal to an available USB port and select
Use Electronic Calibration (ECal) > Next -OR-
(Response > Cal > Other Cals > ECal...).
ECal Module" dialog box press Select All, or select the ports you are calibrating
and press Next. If an ECal characterization has been done, select View/Select
ECal Mod ule and select the previously saved user file from step 3.
following the Cal Wizard prompts and click Measure after each connection. The
electrical delay value may be shown in the dialog box after the last measurement,
click OK.
and Save. See Figure 50 on page
calibration on each port or end of the test cable. Measure reflection and confirm
the return loss is as expected. If the result is not as expected, repeat the
calibration without the test set and ensure that the analyzer is in standard
(non-multiport) mode.
http://na.support.keysight.com/pna/firmware/firmware.html
