U3022AE10

Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B

Trace Measure S-Parameter

S-Parameter selection can be accomplished using Response > Measure. Use the

drop-down menu to select 1 of 144 S-Parameters for the 12-Port system. The first

number in the Sxx selection is the Receiver Port and the second number will be the

Source Port. Any port can be selected to be the Receiver, Source or both, as in S11.

The front panel R LED indicates the port is the Receiver and the S LED indicates the

port is the Source.

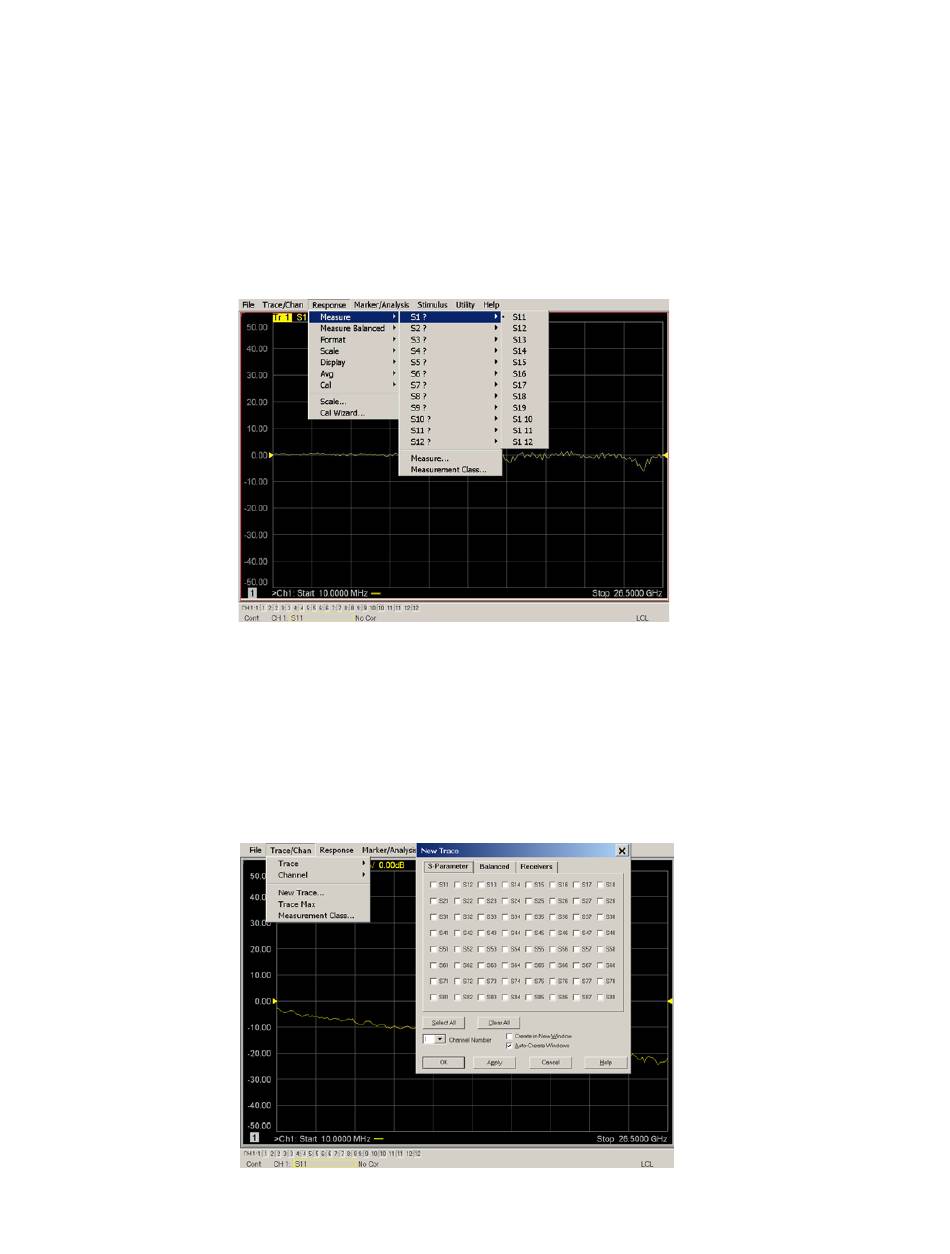

Figure 29

S-Parameter Measurement

S-Parameter Tab: Multiple S-Parameters can be made from the New Trace menu. In

the drop-down menu select Trace/Chan > Trace > New Trace -OR-

(Instrument > Trace > New Trace). The dialog box allows the selection of any of the

144 S-Parameters.

New S-Parameter Measurement

Figure 30
