U3022AE10

Hardware Lock-link Kit Installation (U3021-60002)

Hard ware Lock-link Kit Installation (U3021-60002)
If your system is to be rack mounted, this installation procedure does not have to be
performed.
The opening of covers or removal of parts is likely to expose the user to dangerous
voltages. Disconnect the instrument from all voltage sources before being opened.

Locking the Test Set to the PNA or PNA-X

1. The lock-link kit (U3021-60002) includes items to interface the test set to the
2. Remove the feet from the bottom of the analyzer.
3. Remove the 2 lower standoffs from the rear panel on the analyzer.

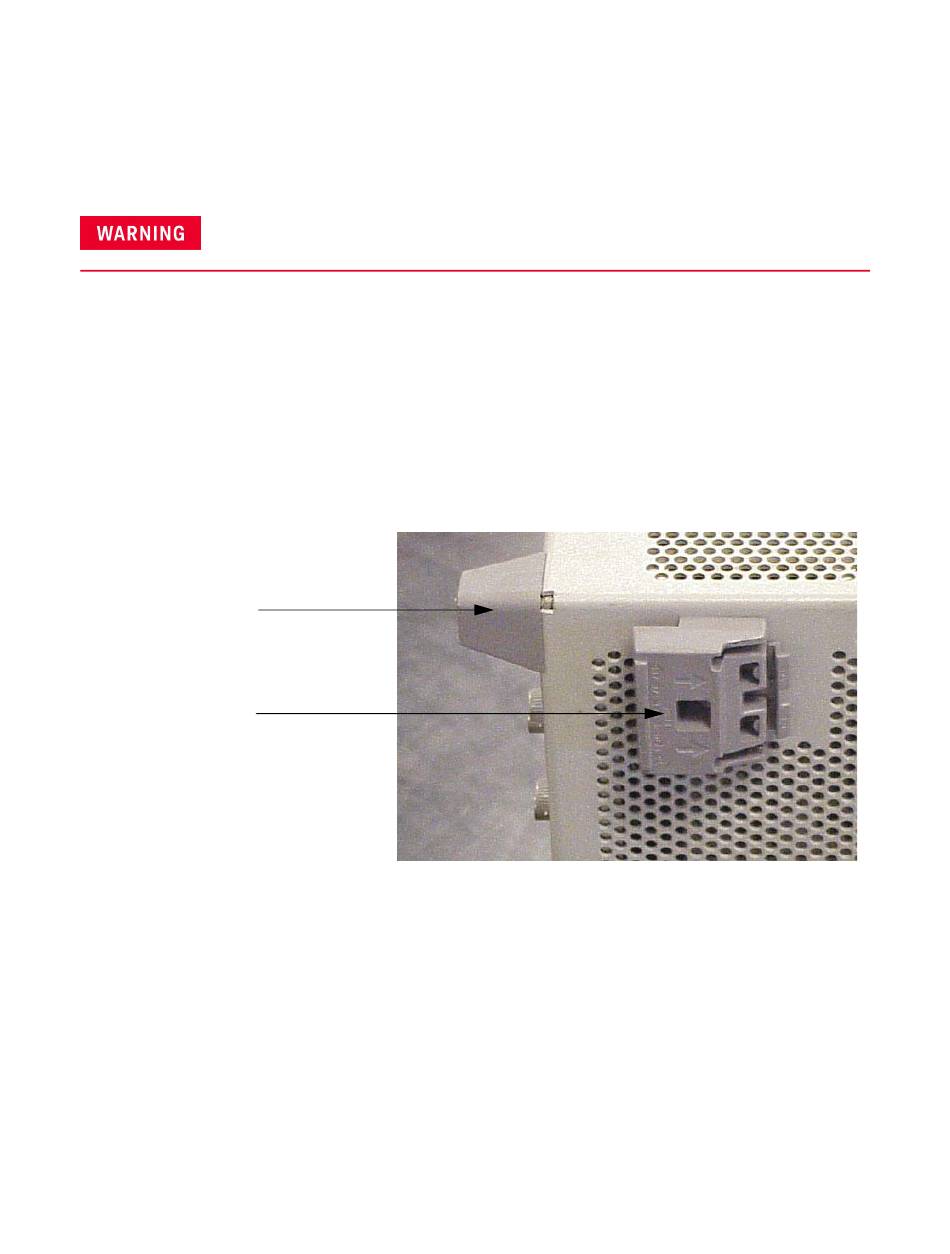

Figure 12
Rear Bottom Feet
Standoffs (x2)
24
PNA or PNA-X.
Feet (x4)
Keysight U3022AE10 User's and Service Guide
