U3022AE10
Control Lines

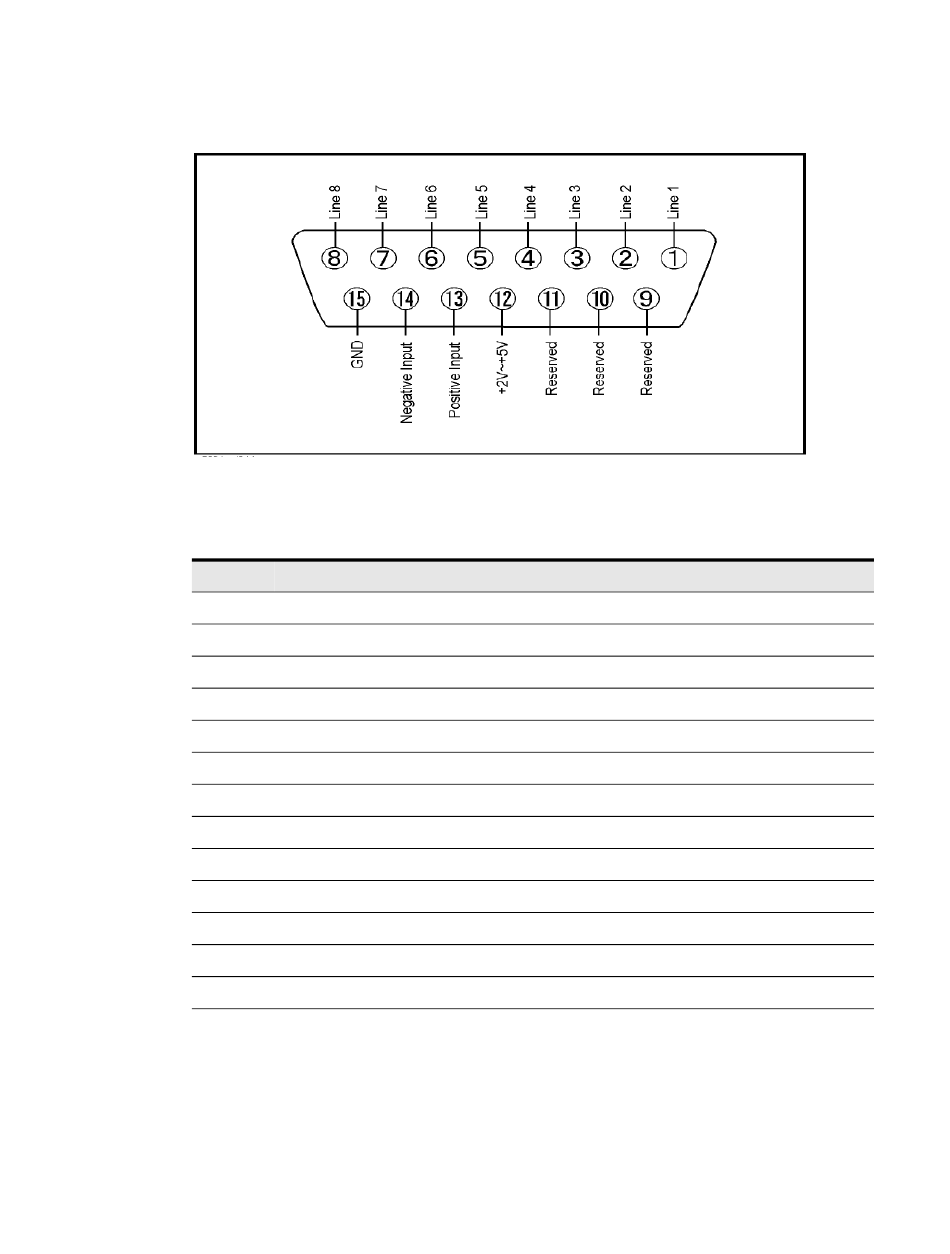

Figure 46
DUT Control Line Pin Assignment (rear panel view)
Table 13
DUT Control Line Interface Connector Pin Assignment
Pin
1
2
3
4
5
6
7
8
9,10 &11
12
13
14
15
Keysight U3022AE10 User's and Service Guide
Signal Name
Description
Line 1
Control Line Output of the voltage from pin 13 or pin 14.
Line 2
Control Line Output of the voltage from pin 13 or pin 14.
Line 3
Control Line Output of the voltage from pin 13 or pin 14.
Line 4
Control Line Output of the voltage from pin 13 or pin 14.
Line 5
Control Line Output of the voltage from pin 13 or pin 14.
Line 6
Control Line Output of the voltage from pin 13 or pin 14.
Line 7
Control Line Output of the voltage from pin 13 or pin 14.
Line 8
Control Line Output of the voltage from pin 13 or pin 14.
Not used
+2 V to +5 V
Internal voltage output, adjusted with the trimmer on the rear panel.
Positive Input
Connection for internal (pin 12) or external positive voltage supply.
Negative Input
Connection for ground (pin 15) or external negative voltage supply.
Gnd
ground terminal
55
