U3022AE10
N5222A/B and N5242A/B RF Interface Cable Connections

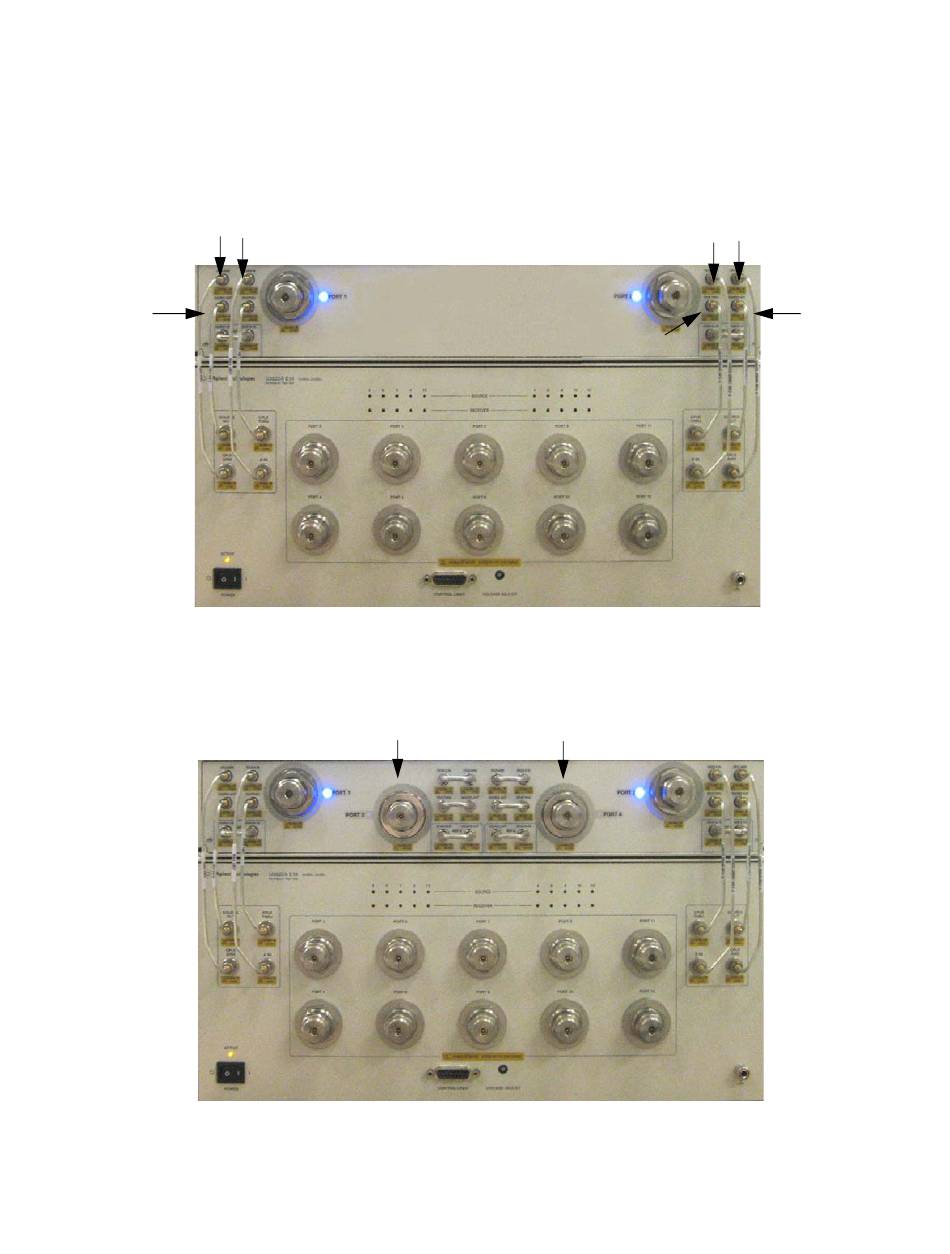

Figure 18 and Figure 19 illustrate the final two digits of the part number for each
cable. The cables must be connected in the numeric order listed in
page
Figure 18
12-Port RF Interface Cable Connections
42 44
43
Figure 19
14 Port RF Interface Cable Connections
30
29.
Port 13
47 49
46
Port 14
Keysight U3022AE10 User's and Service Guide
Table 9 on
48
