U3022AE10
Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B
Balanced Tab: Balanced Measurements can be configured by selecting the Balance
tab in the New Trace menu.
For more information on balanced (differential) component measurement, refer to the
Application Note 1373-1 and 1373-2 (5988-5634EN and 5988-5635EN) at
http://www.keysight.com. In the search menu type "Multiport and Balanced."

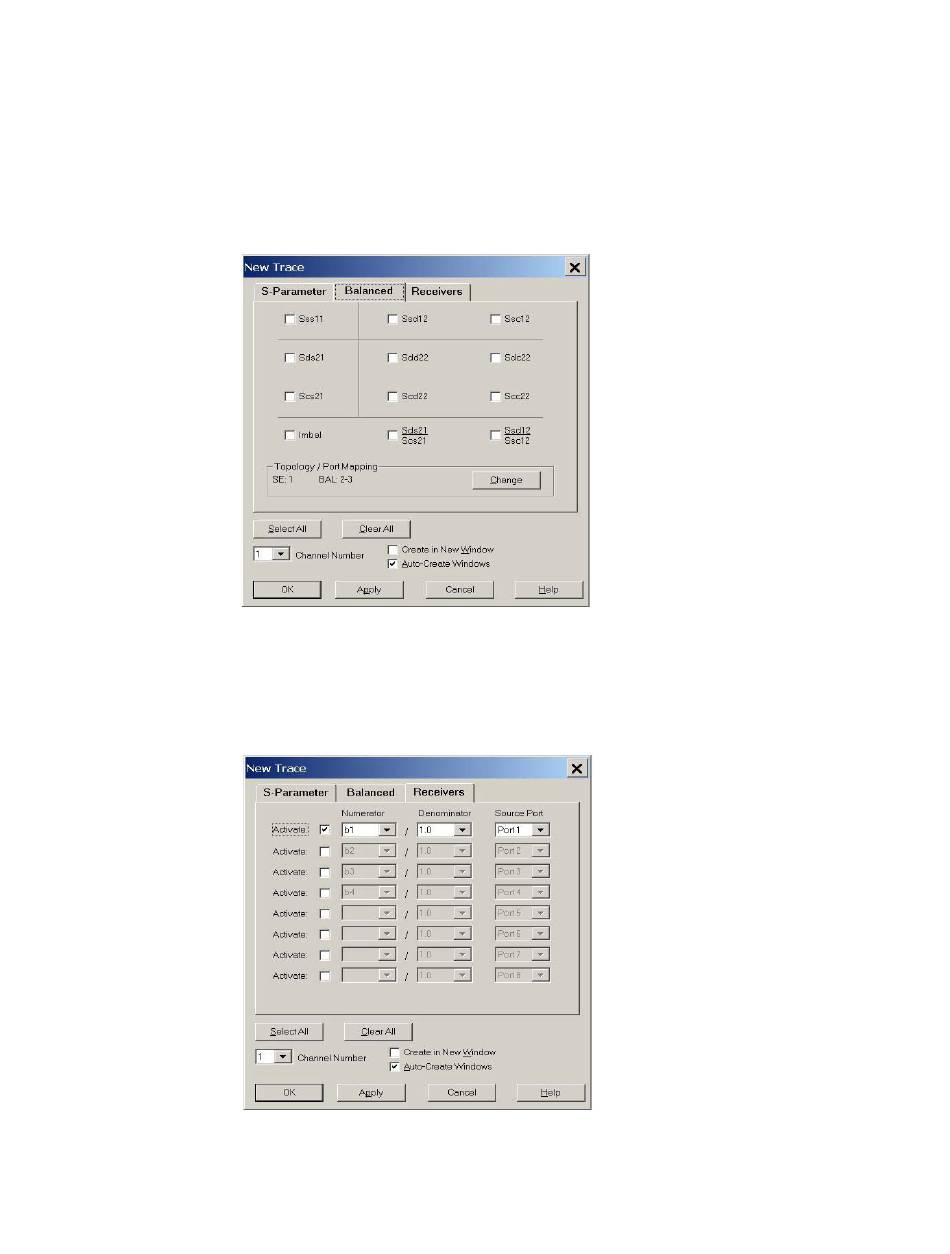

Figure 31 Selecting Balanced Measurements
Receivers Tab: The S-Parameter measurements can be ratioed with selectable
Denominators for each port and receiver. Refer to the standard documentation for
more information.
Figure 32 Receiver Measurements
