U3022AE10
Troubleshooting the Test Set
Connect the RF Flex cables to the Test Port and A/B IN port indicated in Table 21.

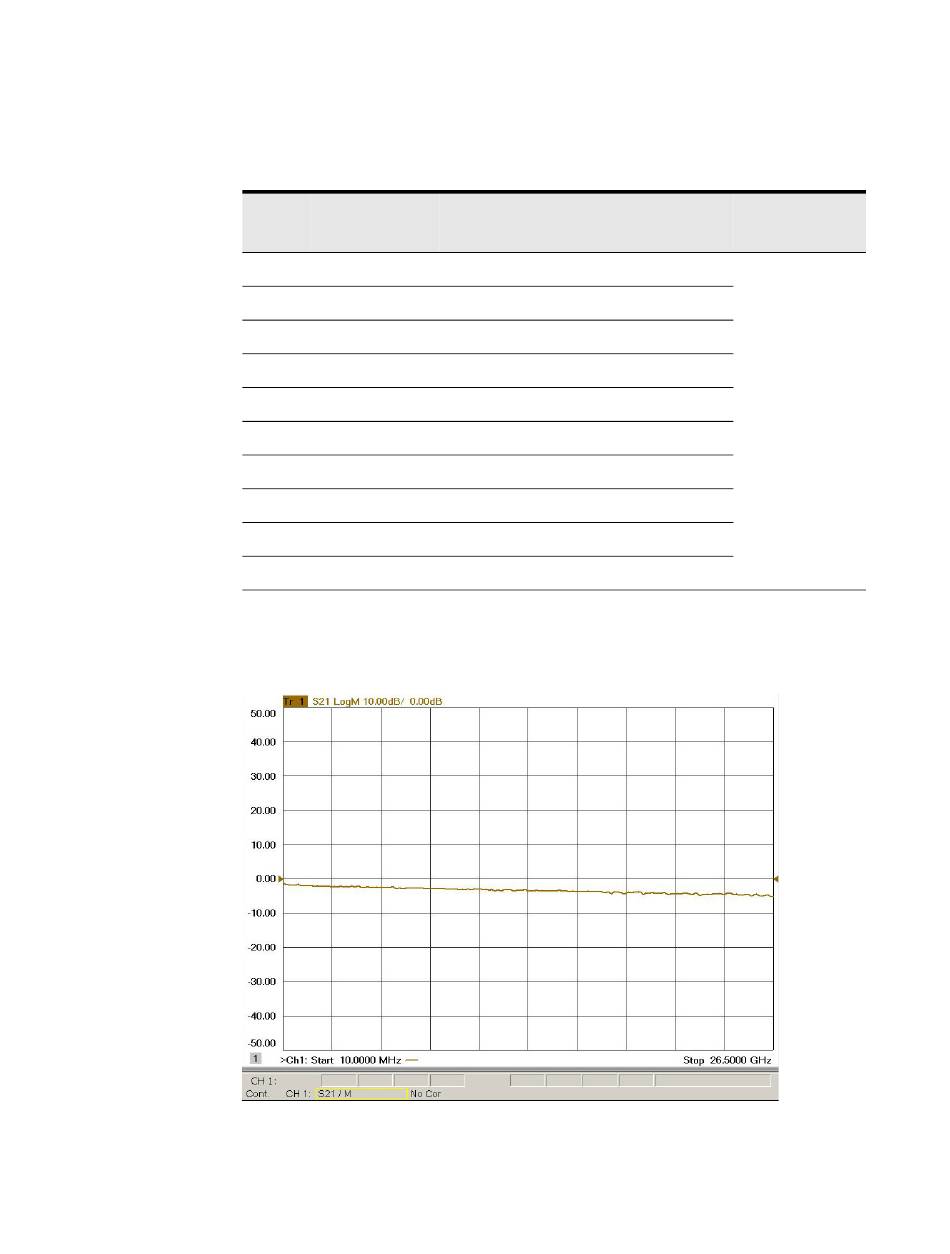

The expected results should be similar to Figure 66.
Source Signal Path Test Instructions
Table 21
Path #
Figure 66 A or B IN to Ports 3-12 Path Response, Standard
Keysight U3022AE10 User's and Service Guide
RF Path
Description
1 A IN to Port 3
2 A IN to Port 5
3 A IN to Port 7
4 A IN to Port 9
5 A IN to Port 11
6 B IN to Port 4
7 B IN to Port 6
8 B IN to Port 8
9 B IN to Port 10
10 B IN to Port 12
Control Mode Path
<Address>.<Data> Components
0.16 P3 CPLR, S11
0.32 P5 CPLR, S11
0.48 P7 CPLR, S11
0.64 P9 CPLR, S11
0.80 P11 CPLR, S11
16.16 P4 CPLR, S21
16.32 P6 CPLR, S21
16.48 P8 CPLR, S21
16.64 P10 CPLR, S21
16.80 P12 CPLR, S21
Insertion Loss
(typical)
Figure 66
