U3022AE10
Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B

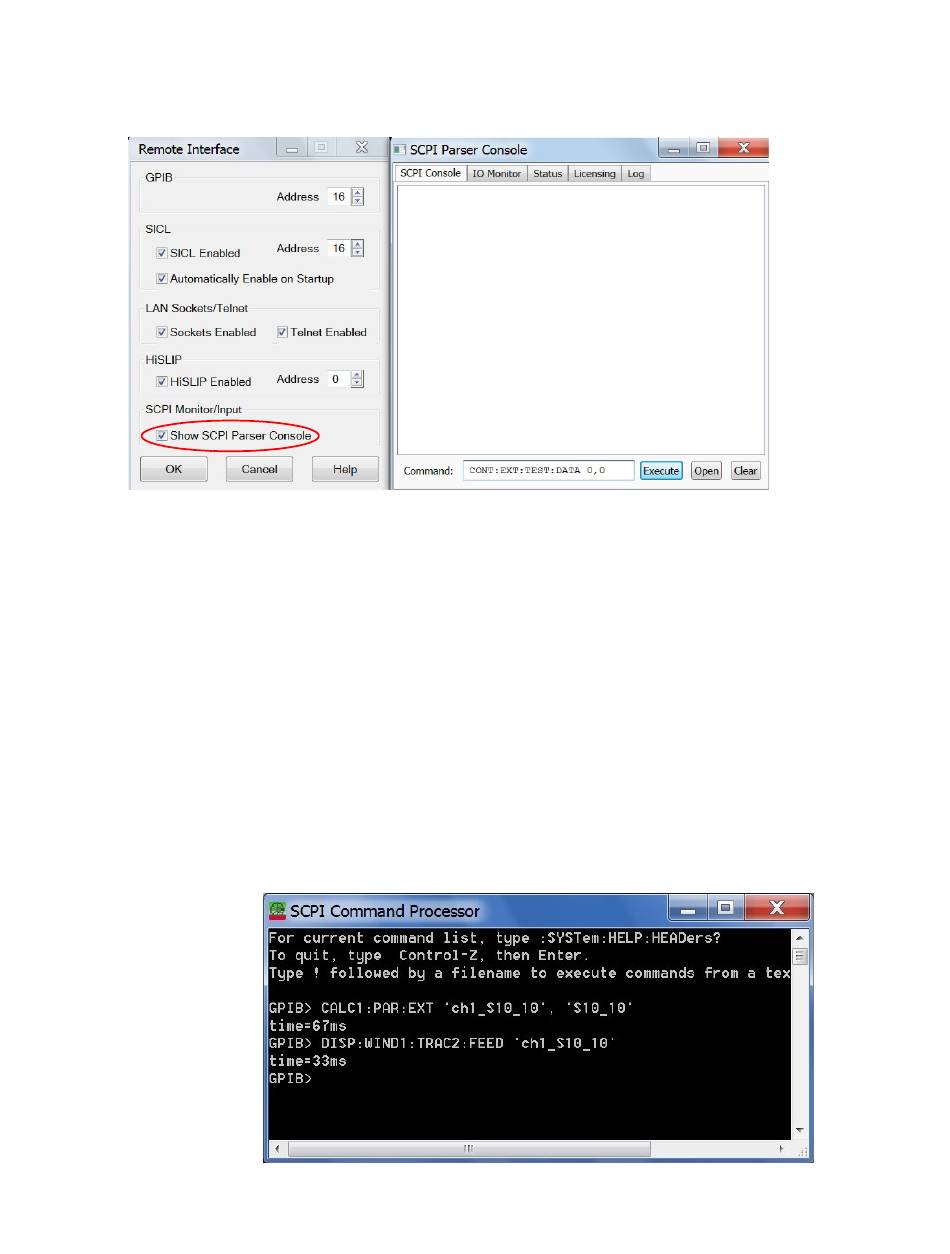

Figure 42 Command Console for 'B' Model Analyzers

SCPI Command Processor Console

There are two methods in which the PNA-X Command Processor Console can be used to control
the Test Set internal switches to configure the Multiport system for S-Parameter measurements.
Method 1 - Using GPIB/SCPI Command Values
Figure 43
50
Method 1 - Using GPIB/SCPI Command Values
This method is available while the system is in Multiport mode only.
The Test Set internal switch settings are programmed into the Test Set
firmware; they are configured by the PNA-X S-parameter values. Method 1
provides more PNA-X control capability than Method 2.
The following example shows two executable commands needed to create
an S-parameter measurement on your Multiport system.
Keysight U3022AE10 User's and Service Guide
