Cal Kit Operational Check

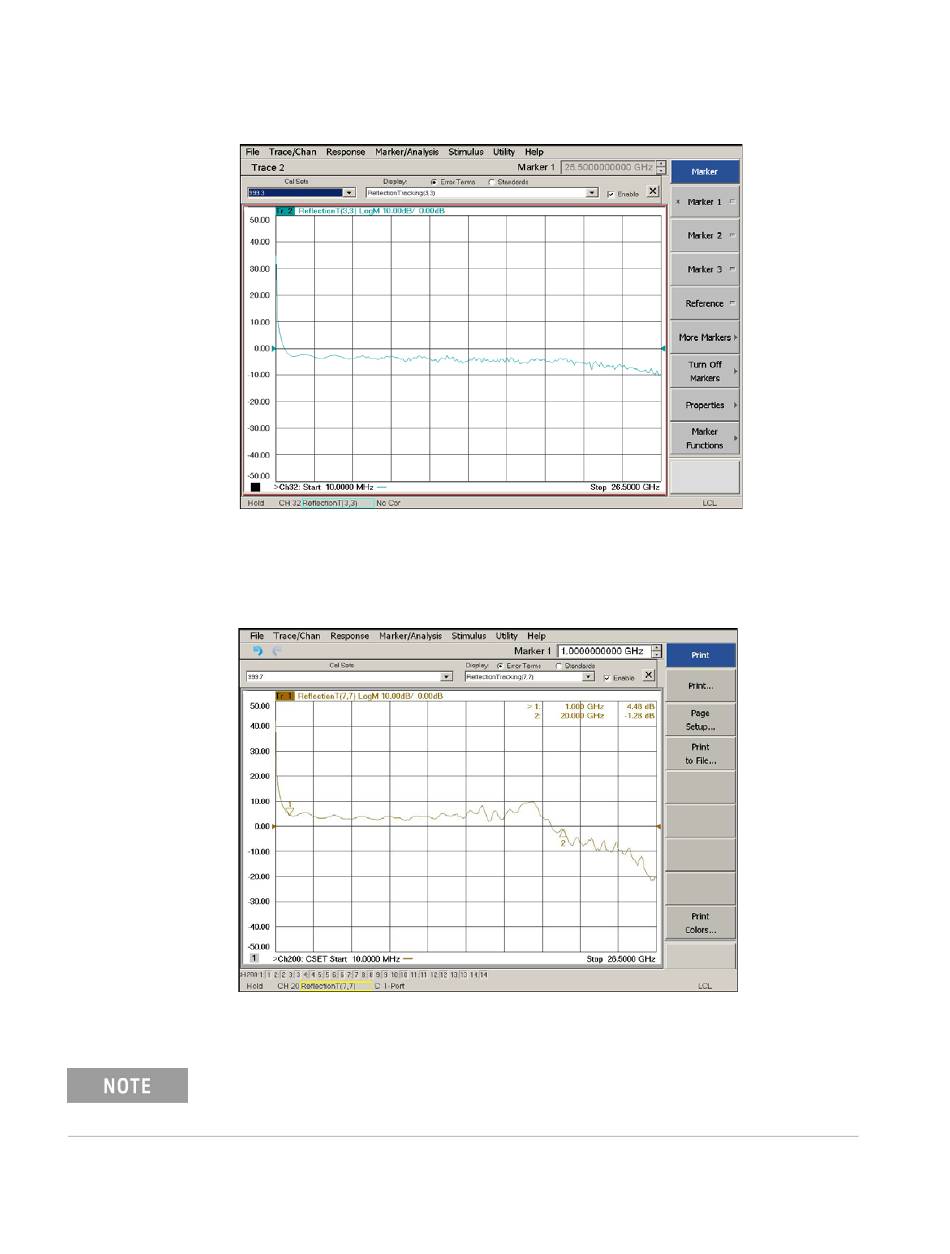

Figure 54
PNA or PNA-X Port 3-12
Figure 55
PNA or PNA-X Port 3-12 (Option 001)
Response from 10 MHz to 500 MHz is normal due to the PNA or PNA-X couplers in
comparison to the Test Set bridges. The bridges have more gain in the coupled RF
path.
66
Keysight U3022AE10 User's and Service Guide
