U3022AE10
Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B

Multiport Mode (Option 551)

Multiport mode selects the test set file that will enable the network analyzer to
control the test set. Multiport mode allows you to complete a N-Port calibration
using the Cal Wizard application in the network analyzer. Refer to the Help system for
more information.
Ensure the test set file needed for your analyzer are installed into network analyzer
file directory: c:\ProgramFiles\Keysight\Network Analyzer\testsets
Refer to

How to Access Multiport Mode

1. The Option 551 must be installed for multiport capability. To access the multiport
2. Select U3022AE10 (12-Port System) from the drop-down menu and select Restart
If the test set is not available in the drop-down list, it will be necessary for you to copy
the required test set file to the analyzer's hard drive. The current version of the test set
files are available on the web at
http://na.support.keysight.com/multiport/testsetsupport.html.
Copy the appropriate file to
c:\Program Files (x86)\Agilent\Network Analyzer\TestSets
For the "B" Model PNA-X, copy to
c:\Program Files (x86)\Agilent\Keysight\Network Analyzer\Keysight\TestSets

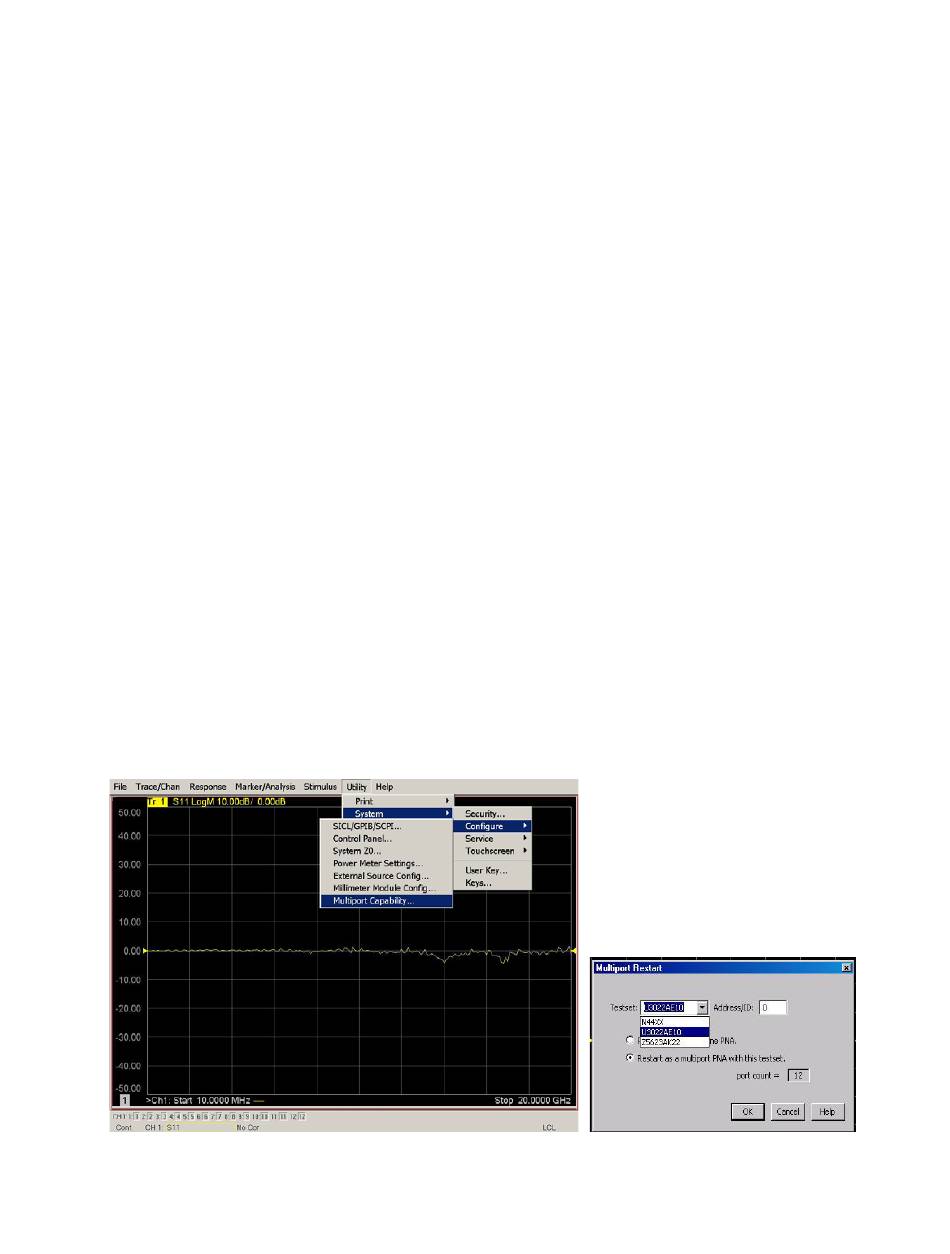

Selecting Multiport Mode
Figure 27
Keysight U3022AE10 User's and Service Guide
"Network Analyzer Requirements" on page
application select Utility > System > Configure > Multiport Capability -OR-
(Instrument > Setup > External Hardware > Multiport > Multiport Configuration...).
as a multiport PNA with this testset > OK. The analyzer will restart the network
application with the test set interface features.
11.
37
