Controlling the Test Set with N5222A/B, N5232A/B or N5242A/B

External Test Set Control Feature

To verify that the network application has the test set interface features, select
Trace/Chan > Channel > Hard ware Setup > External Test Set > Other -OR-
(Instrument > Setup > External Hardware > External Device... > Multiport > Other
Test Set Setup...). The test set will be displayed as External Test Set Control-
U3022AE10.
External Test Set Control

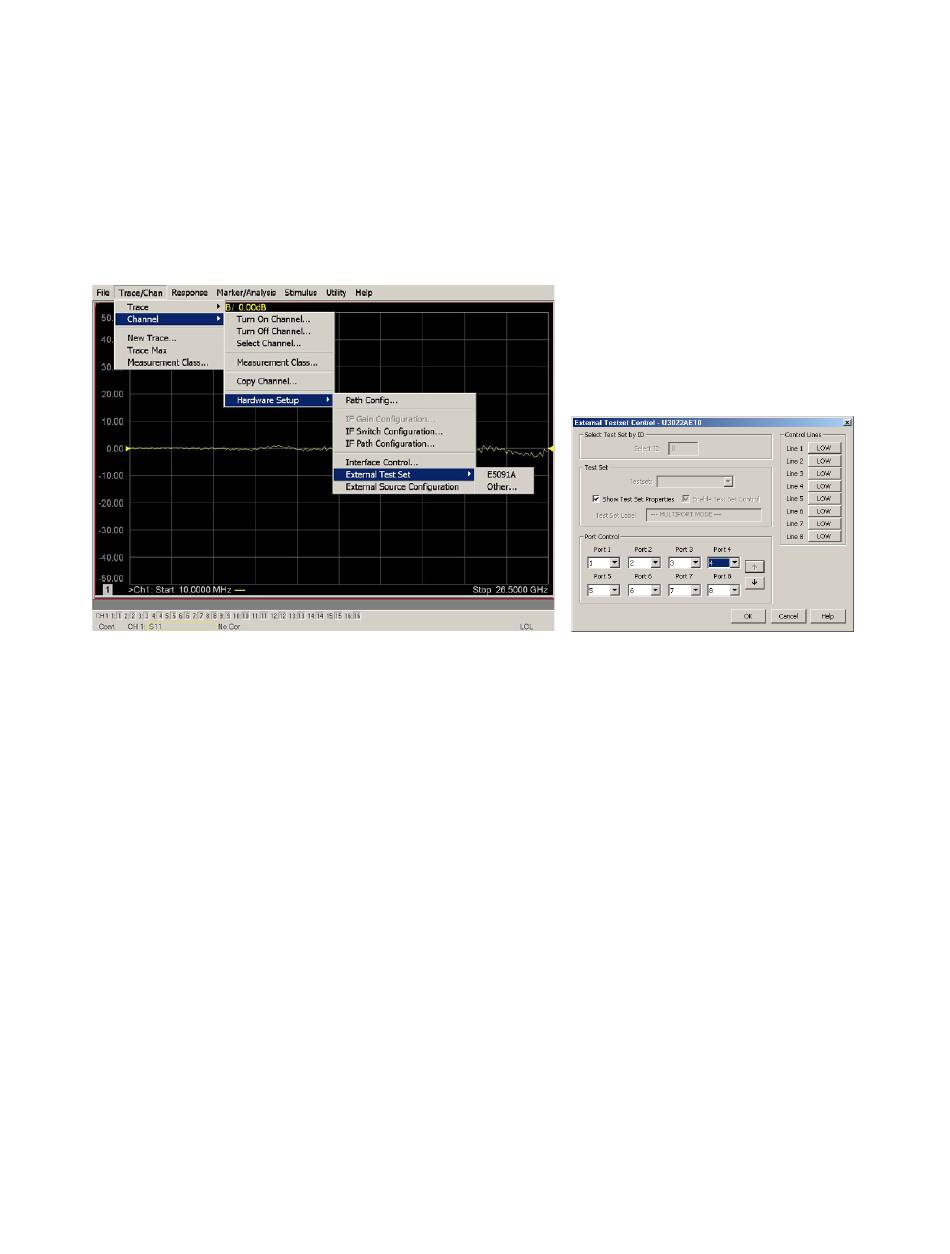

Figure 28
This menu will allow the physical Ports 1 thru 8 to be identified as any port for your
convenience. For example, Port 5 can be re-named Port 2.
The External Test Set Control-U3022AE10 also allows control of the DUT control
lines, refer to
select the graphical user interface (GUI) for the specific control (LINE 1 to 8), click
OK. Each line can be controlled separately.
Select the port control down arrow for Ports 9 thru 12.
38
"Control Lines" on page
54. To change the state from LOW to HIGH,
Keysight U3022AE10 User's and Service Guide
