U3022AE10
Control Lines

Internal Voltage Supply Configuration

The output voltage of pin 12 can be adjusted from +2 to +5 V. Perform the following
procedure to set the voltage:
1. Turn on the test set.
2. Measure the voltage between pin 12 and 15 using a multimeter.
3. Rotate the voltage adjustment trimmer on the rear panel until the multimeter

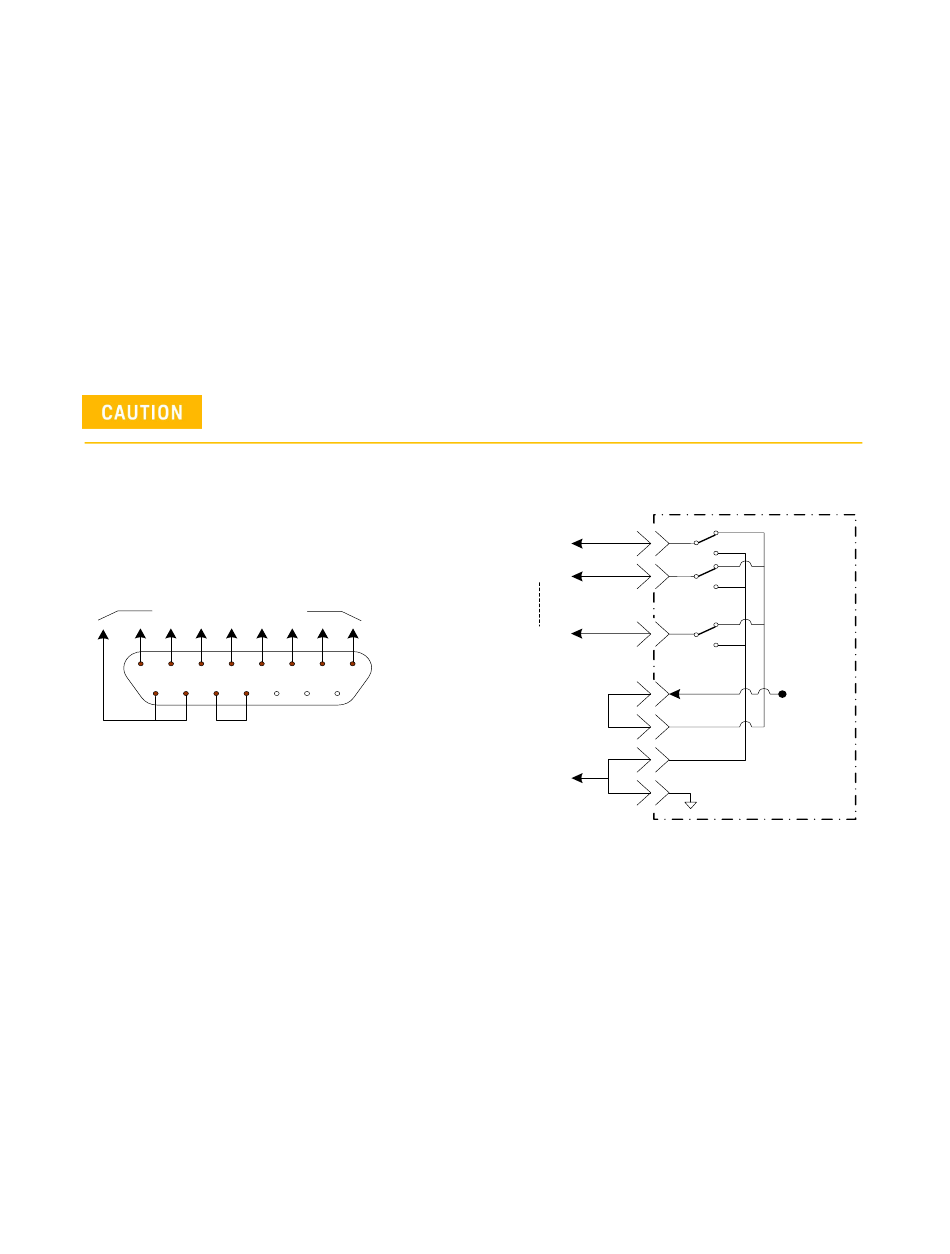

Figure 45 illustrates an example of the connection between the DUT and the test
set using the internal DC power supply. Connect pin 12 to pin 13 and pin 14 to pin
15 to provide the ground path. Connect the control lines to the external DUT.
You may only connect pin 12–13, and pin 14–15; damage may result if any
other paths are short-circuited.
Figure 47
Internal DC Power Configuration (rear panel view)
(Rear Panel View)
TO DUT (Only required Lines)
8
15
14
13
12
GND
56
indicates the selected voltage
1
9
Line 1
1
Line 2
2
Line 8
8
12
13
14
GND
15
Keysight U3022AE10 User's and Service Guide
2 to 5 Vdc
TEST SET
