Please note:
The base frame must be
mounted in the final
place of use on a base
frame that has already
been aligned (see Fig. 30 on
page Page 53).
1. Position the fixing plates
over the mounting holes
in the base frame.
2. Hammer the straight
pins through the locating
holes in the fixing plates
and into the holes in the
base frame.
7.5.3

Mounting section module on a base frame

2 x Ø12
1
2

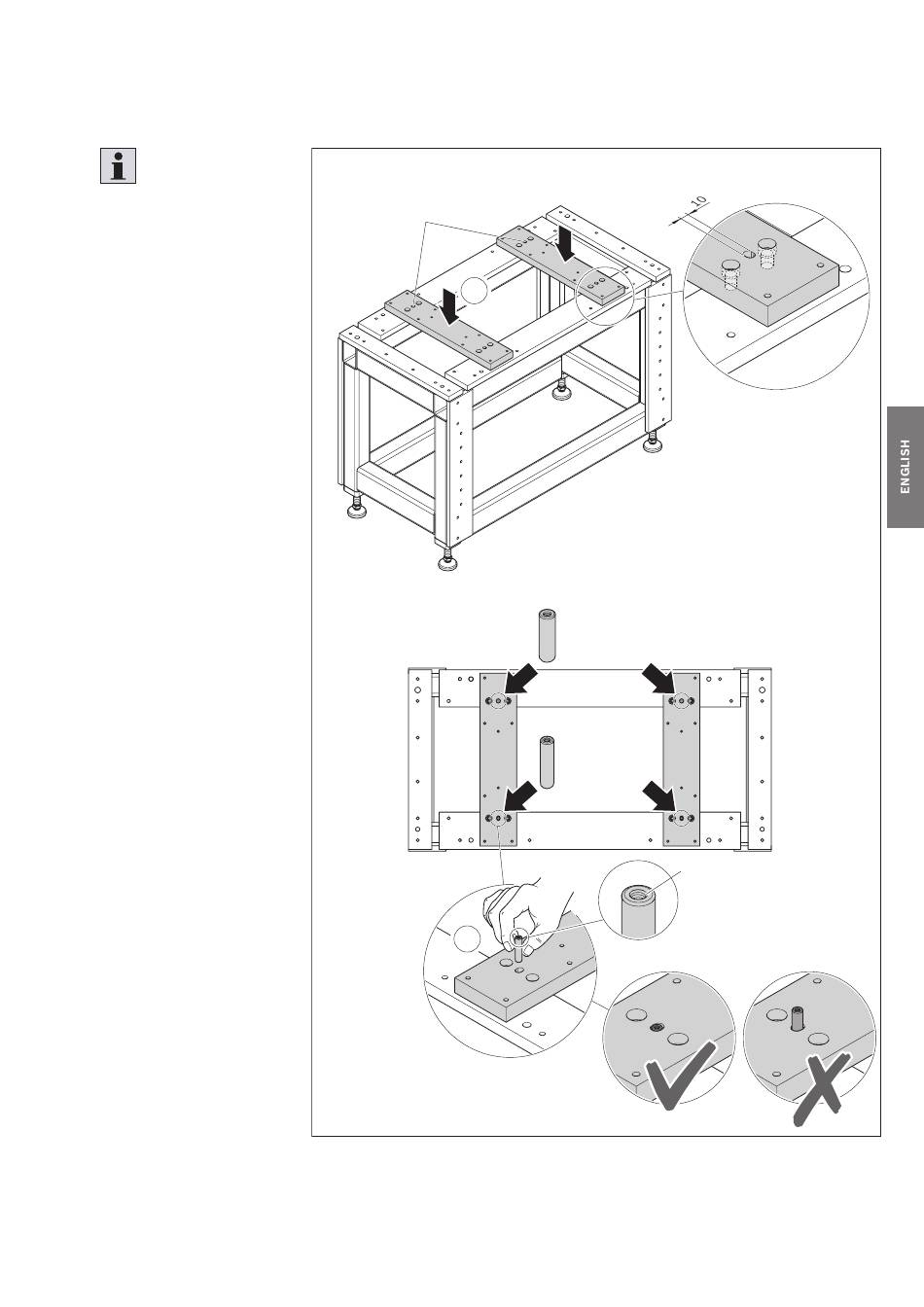

Fig. 32: Mounting fixing plates (1)
2 x
ISO8375 –
16 x 40 – A – ST
2 x
ISO8375 –
12 x 40 – A – ST
!
