Bosch RADION Installation Manual

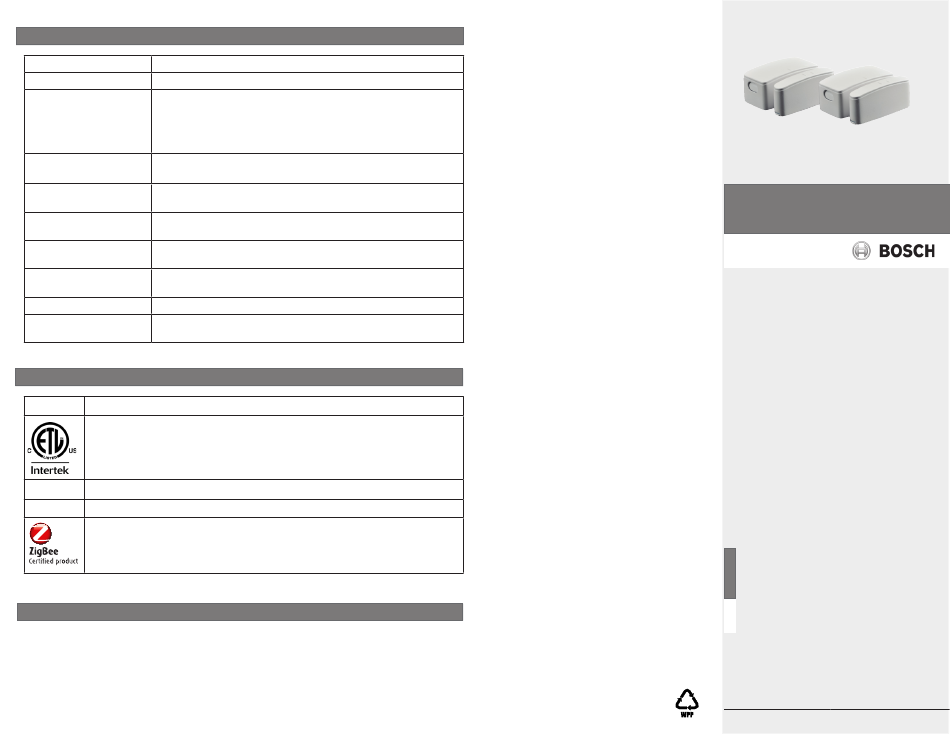

8 | Specifications
Frequency (operating) 2.4 GHz
Max Power transmitted 20 dBm
Battery replacement ≥
3 VDC 750mAh
(1 per detector)
Energizer CR2 Lithium
Duracell Ultra CR2 Lithium
Panasonic CR2 Lithium
Sanyo CR2 Lithium
Battery life ≥
5 years with 16 open/close alarm events per day (door window
detector),
Dimensions (detector) 1.8 in. x 0.92 in. x 0.79 in.
(46.0 mm x 23.5 mm x 20.3 mm)
Dimensions (magnet) 1.8 in. x 0.32 in. x 0.79 in.
(46.0 mm x 8.3 mm x 20.3 mm)
Temperature (operating) -4°F to +122°F
(-20°C to +50°C)
Storage temperature 14°F to +131°F
(-10°C to +55°C)
Relative humidity 5% to 93% at +32°C (+90°F)
Magnet gap break ≥
1.3 in. (33 mm) mounted to metal, vinyl, or wood
distance
9 | Certifications
Agency Certification
Control No.3170792
Conforms to ANSI/UL Std. 634
ULC/ORD-C634-86
FCC FCC ID: T3X-012
IC IC ID: 1249A-012
This ZigBee® Certified product works in global 2.4 GHz networks supporting
ZigBee HA 1.2.1. ZigBee® Certified is a registered trademark of the ZigBee
Alliance.
ZigBee Cert No.xxx
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered trademarks and must be treated
accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at
http://www.boschsecurity.com/datecodes/.
≥
6 years (water detector), TBD (tilt detector)
PRELIMINARY
FCC
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
IC
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada.
To reduce potential radio interference to other
users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for
successful communication.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio
exempts de licence. L 'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur
de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Conformément à la réglementation d'Industrie
Canada, le présent émetteur radio peut fonctionner
avec une antenne d'un type et d'un gain maximal
(ou inférieur) approuvé pour l'émetteur par
Industrie Canada.
Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs,
il faut choisir le type d'antenne et son gain de sorte
que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.

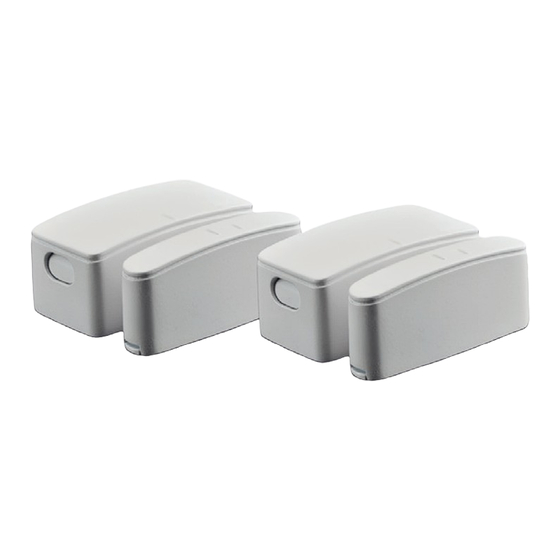

RADION
Multi-Sensor ZB
RFMS-ZBMS
en Installation Guide
fr Guide de l'installateur
Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH
130 Perinton Parkway Robert-Bosch-Ring 5
Fairport, NY 14450 85630 Grasbrunn
USA Germany
www.boschsecurity.com
© 2017 Bosch Security Systems, Inc.
F.01U.330.367 | 00b | 2017.02
