3-5. Disassembly, Reassembly and Lubrication

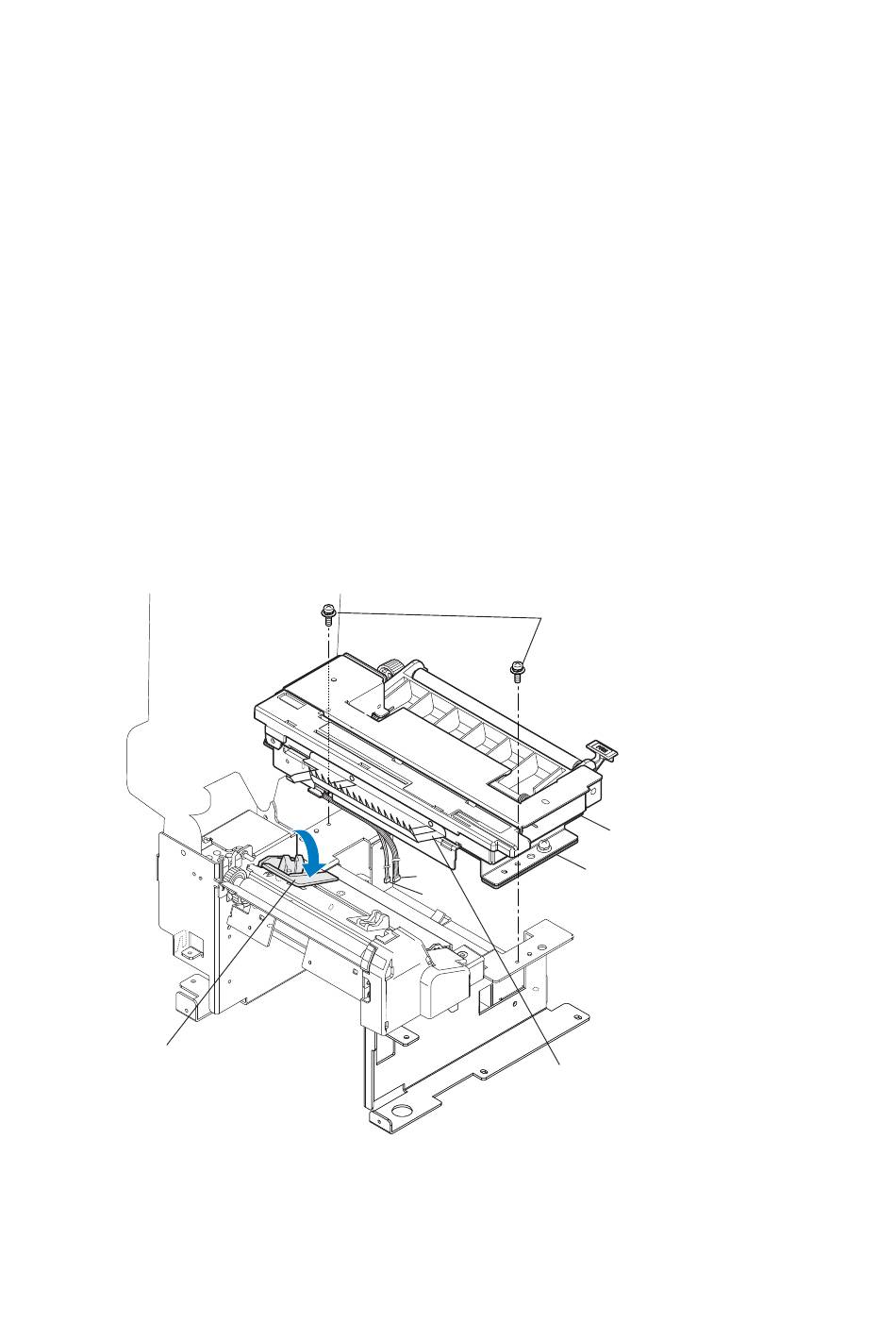

3-5-11. Unit, Sensor Adjust

(1) Removing the Unit, Sensor Adjust

Note: The Unit, Sensor Adjust can be removed without removing the Unit, Mechanism.
1. Open the top cover.
2. Disconnect the connectors J7 and J22 from the SA, Main PCB.
Refer to "3-5-5. SA, Main PCB and Unit, Centro PCB" -
from the SA, Main
3. Remove 2 screws (PH (SW+PW), M3x5) and detach both Unit, Sensor Adjust and SA,
Base Guide Open.
4. Remove the SA, Base Guide Open from the Unit, Sensor Adjust.
Refer to "3-5-10. SA, Base Guide
5. Peel off the Ground Brush from the Unit, Sensor Adjust.
Notes on reassembling:
• Be sure to lower the SA, Sensor U (Fixed type) before assembling the Unit, Sensor Adjust.
• Run the cables (J7 and J22) as shown and be sure that they are not pinched by the Unit,
Sensor Adjust.
SA, Sensor U (Fixed type)
PCB".
Open".
J22
"(1) Disconnecting all connectors
PH (SW+PW), M3x5
SA, Base Guide Open
Unit, Sensor Adjust
J7
Ground Brush
3-22
