(6) Removing the SA, Interlock SW

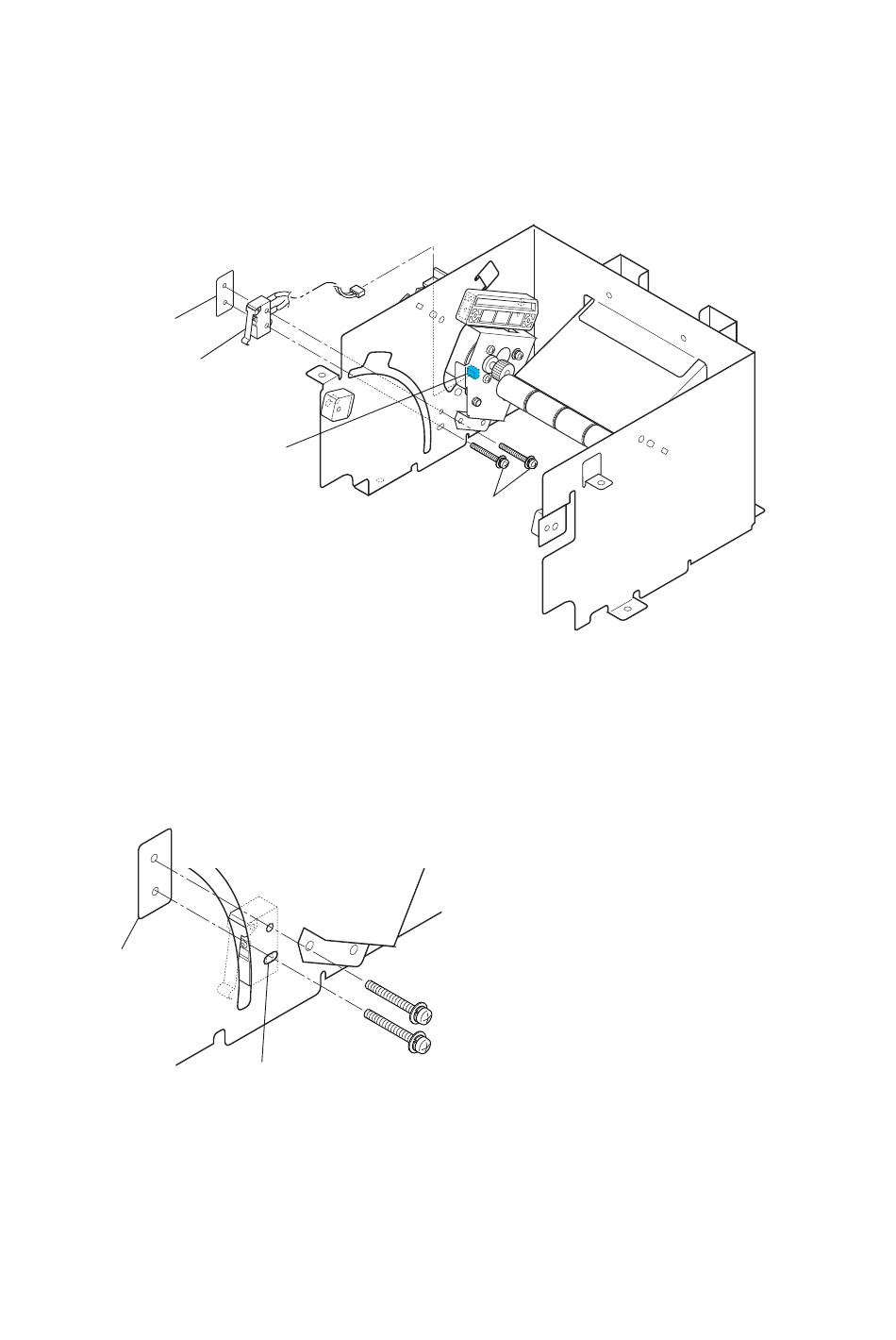

1. Remove the Rewinder Mechanism block referring to
Mechanism
block".
2. Disconnect the cable of the SA, Interlock SW from the SA, Rewinder Motor.
3. Remove 2 screws (PH (PW), M2x10) and detach the Nut Plate and the SA, Interlock SW.
Plate, Nut
SA, Interlock SW
Connector of the
SA, Rewinder Motor
Note on reassembling:
• Horizontal long hole is provided for mounting the lower side of the SA, Interlock SW.
When assembling the Nut Plate, be sure that the lower side of screw is at the center of the
long hole as shown in the figure.
Plate, Nut
PH (PW), M2x10
Long hole
3-5. Disassembly, Reassembly and Lubrication
"(2) Removing the Rewinder
3-39
