3-6. Adjustments

3-6-2. Belt Tension Adjustment

Belt tension adjustment is necessary in the following case.
- When the Unit, Motor is replaced.
1. Remove the screw "B" and loosely tighten the Motor block with 2 screws "A".
2. Push the left side of the Motor block with the tip of the spring gauge as shown in the figure.
3. Push it so that the spring gauge reads the following value.
600 to 1000 gf.
4. Tighten the Motor block with 2 screws "A" and the screw "B".

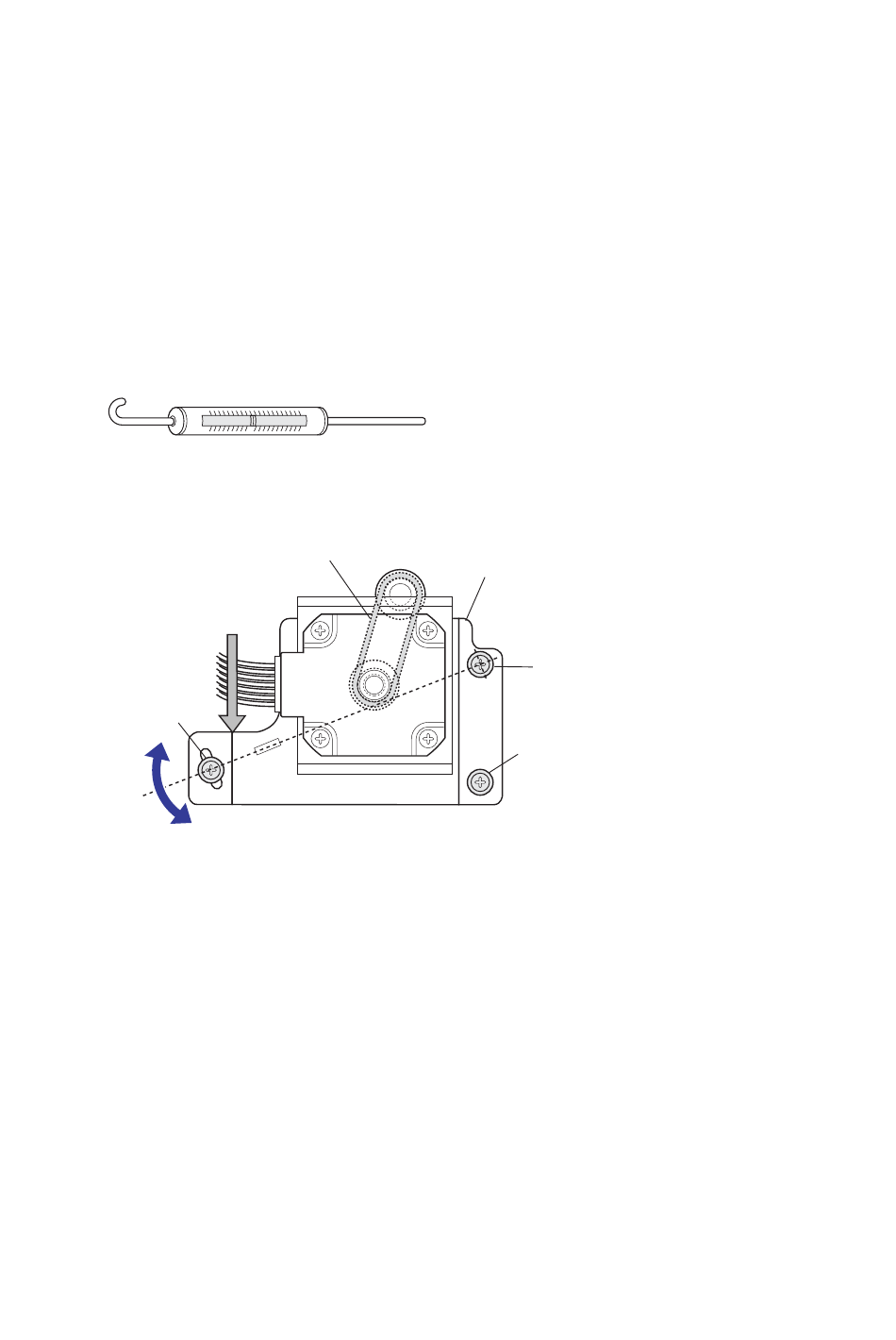

[Spring Gauge]
* Use Max. 2000gf gauge.
[Left side view of the Unit, Mechanism]
Belt, Motor Drive
Motor Block
Spring Gauge
A
A
B
3-51
