4-2. Troubleshooting

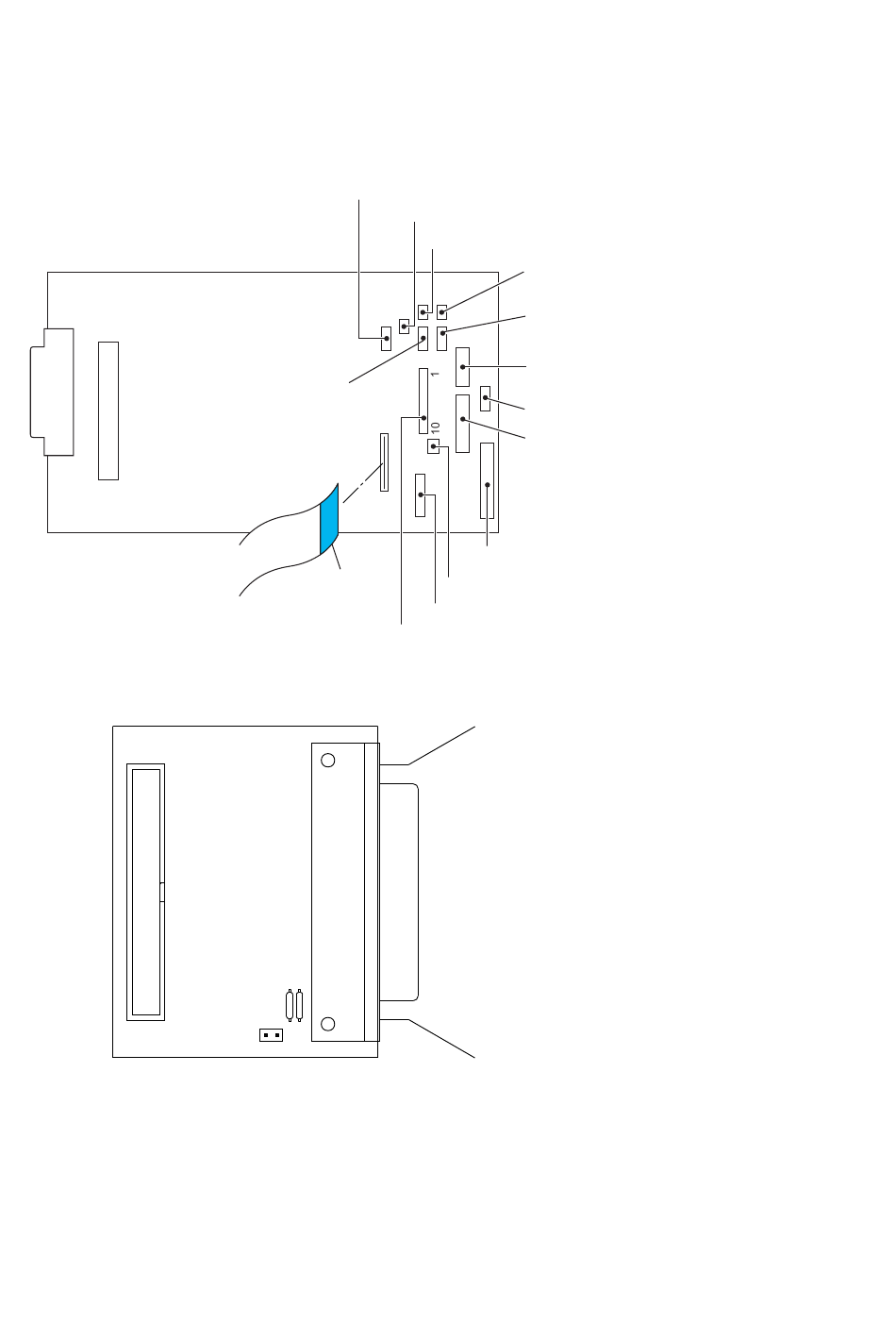

4-2-7. Connector Location

[SA, Main PCB]
SA, Main PCB
Ope-Pane FFC Cable
[Unit, Centro PCB]
CN101
Ribbon Encoder
(Ribbon Running Sensor/Ribbon End Sensor)
J8
Adjustable Sensor
(Reflective sensor)
J14
(Blue Tape)
Unit, Power Supply
SA, Head Up SW (Head Up Sensor)
Adjustable Sensor (Transparent sensor)
Front Fixed Sensor
(Transparent sensor)
J7
J6
J9
Front Fixed Sensor
(Reflective sensor)
J16
SA, Connect PCB (J803) (CL-S700/CL-S703)
J21
J22
SA, Rewinder PCB (J502) (CL-S700R)
J12
J11
SA, Fan
SA, Connect PCB (J801) (CL-S700/CL-S703)
J3
SA, Rewinder PCB (J501) (CL-S700R)
J15
J5
J4
Unit, Head
Unit, Motor (Thermistor)
Unit, Motor
4-16
7010/7010-300
7010R
7010/7010-300
7010R
